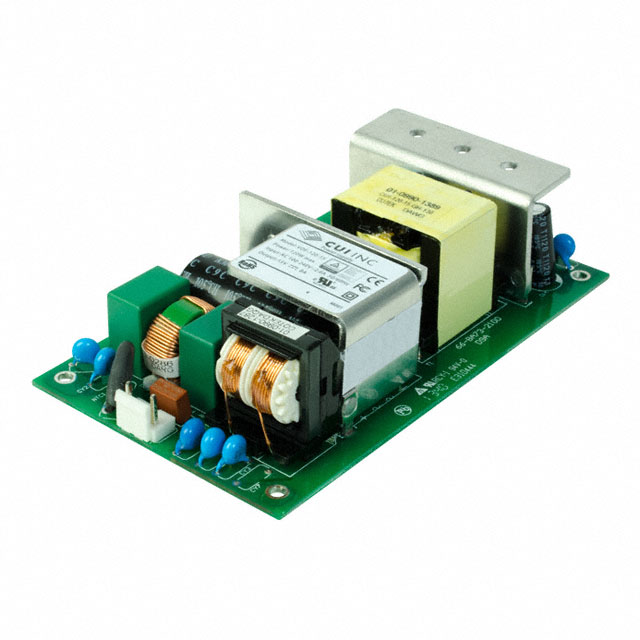

VOF-120 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 48V 2.5A 120W 8-PIN
| Part | Efficiency | Mounting Type | Standard Number | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Isolation | Approval Agency | Features | Applications | Voltage - Output 1 | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 90 % | Chassis Mount | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 1 | 60 °C | -20 °C | 120 W | 277 VAC | 90 VAC | 2.5 A | 5 " | 1.32 in | 127 mm | 33.1 mm | 3 " | 76.2 mm | 3000 V | CB Scheme EN FCC IEC SIQ TUV UL | Adjustable Output Universal Input | ITE (Commercial) | 48 V | Open Frame |
 CUI Inc. | 86 % | Chassis Mount | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 1 | 60 °C | -20 °C | 120 W | 277 VAC | 90 VAC | 8 A | 5 " | 1.25 in | 127 mm | 31.8 mm | 3 " | 76.2 mm | 3000 V | CB Scheme EN FCC IEC SIQ TUV UL | Adjustable Output Universal Input | ITE (Commercial) | 15 V | Open Frame |
CUI Inc. | 87.5 % | Chassis Mount | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 1 | 60 °C | -20 °C | 120 W | 277 VAC | 90 VAC | 5 A | 5 " | 1.25 in | 127 mm | 31.8 mm | 3 " | 76.2 mm | 3000 V | CB Scheme EN FCC IEC SIQ TUV UL | Adjustable Output Universal Input | ITE (Commercial) | 24 V | Open Frame |
