SCP7RT78 Series

Catalog

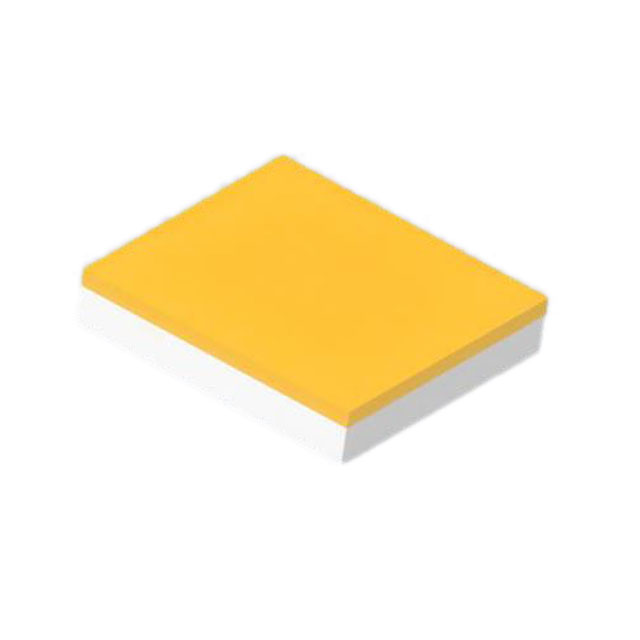

LED LM101B COOL WHITE 5000K SMD

Part	Thermal Resistance of Package	Mounting Type	Viewing Angle	CCT (K)	CCT (K)	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Supplier Device Package	CRI (Color Rendering Index)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	Flux @ 25°C, Current - Test	Color	Size / Dimension [y]	Package / Case	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Samsung Semiconductor, Inc. SCP7RT78HEL1RLS06E	2 °C/W	Surface Mount	120 °	5-Step MacAdam Ellipse	5000 K	203 lm/W	0.067 in	0.067 in	1.7 mm	1.7 mm	2.8 V	350 mA	SMD	70	0606 (1616 Metric)	0.018 "	0.45 mm	65 mA	37 lm	Cool White
Samsung Semiconductor, Inc. SCP7RT78HEL1RUS06E	2 °C/W	Surface Mount	120 °	3-Step MacAdam Ellipse	5000 K	203 lm/W	0.067 in	0.067 in	1.7 mm	1.7 mm	2.8 V	350 mA	SMD	70	0606 (1616 Metric)	0.018 "	0.45 mm	65 mA	37 lm	Cool White
Samsung Semiconductor, Inc. SCP7RT78HPL1RUS06E	2 °C/W	Surface Mount	150 °		5000 K	149 lm/W	0.045 "	0.045 in	1.15 mm		2.9 V	450 mA	SMD	70	0505	0.018 "	0.45 mm	150 mA		Cool White	1.15 mm	1313	71 lm	59 lm
