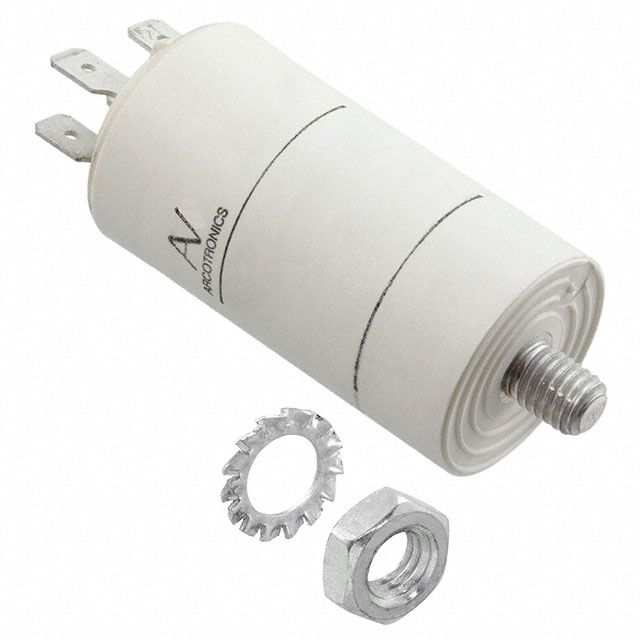

C274AC Series

Manufacturer: KEMET

Catalog

MOTOR START CAPACITORS & MOTOR RUN CAPACITORS 470VAC 2UF 5% WITH M8 BOLT 10K HRS

Part	Termination	Termination	Termination	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Dielectric Material	Lead Spacing	Lead Spacing	Tolerance	Voltage Rating - AC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C274AC24200AA0J	6.3 mm	Quick Connect	0.25 "	2 µF	85 °C	-25 °C	Motor Run	0.984 "	25 mm	Chassis Stud Mount	Polypropylene (PP) Metallized	0.394 in	10 mm	5 %	470 V	Can Radial	60 mm	2.362 in

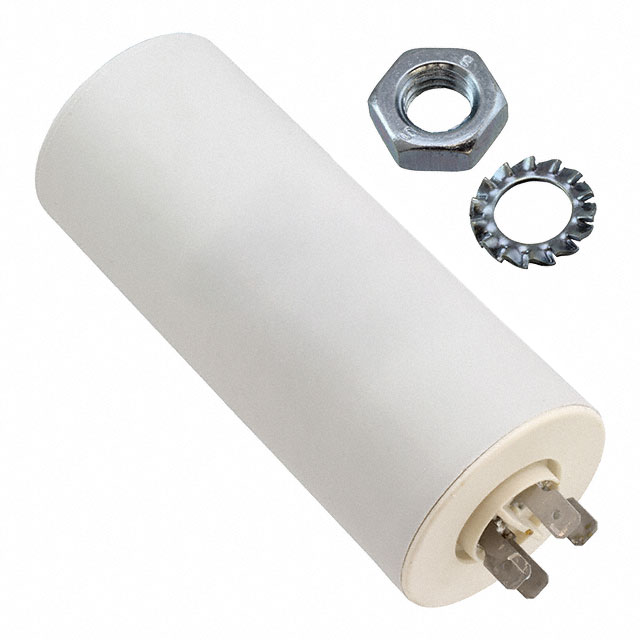

KEMET C274AC35400AA0J	6.3 mm	Quick Connect	0.25 "	40 µF	85 °C	-25 °C	Motor Run	1.969 in	50 mm	Chassis Stud Mount	Polypropylene (PP) Metallized	0.528 in	13.4 mm	5 %	470 V	Can Radial	122 mm	4.803 in

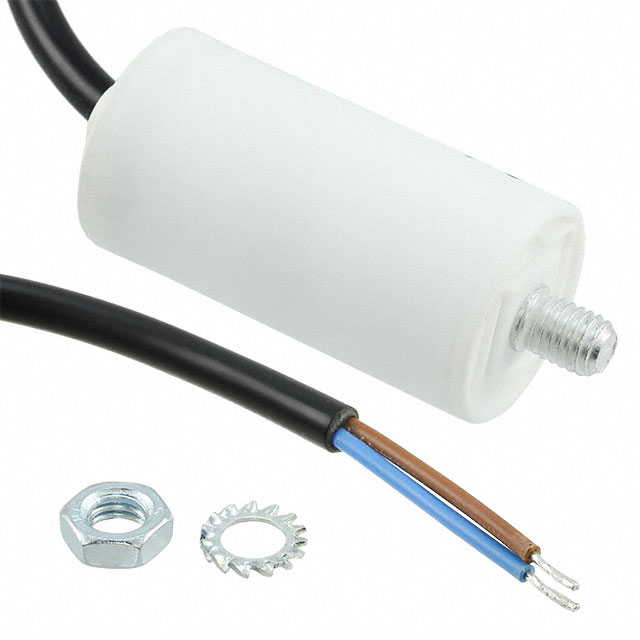

KEMET C274ACF4500WA0J		Wire Leads		5 µF	85 °C	-25 °C	Motor Run	1.181 "		Chassis Stud Mount	Polypropylene (PP) Metallized			5 %	470 V	Can Radial	59 mm	2.323 in	30 mm
KEMET C274AC35300SA0J	6.3 mm	Quick Connect	0.25 "	30 µF	85 °C	-25 °C	Motor Run	1.772 "	45 mm	Chassis Stud Mount	Polypropylene (PP) Metallized	0.528 in	13.4 mm	5 %	470 V	Can Radial		3.799 in		96.5 mm
KEMET C274AC24800AA0J	6.3 mm	Quick Connect	0.25 "	8 µF	85 °C	-25 °C	Motor Run	1.378 "	35 mm	Chassis Stud Mount	Polypropylene (PP) Metallized	0.394 in	10 mm	5 %	470 V	Can Radial				58.5 mm	2.303 in
KEMET C274AC24500AA0J	6.3 mm	Quick Connect	0.25 "	5 µF	85 °C	-25 °C	Motor Run	1.181 "		Chassis Stud Mount	Polypropylene (PP) Metallized	0.394 in	10 mm	5 %	470 V	Can Radial			30 mm	58.5 mm	2.303 in

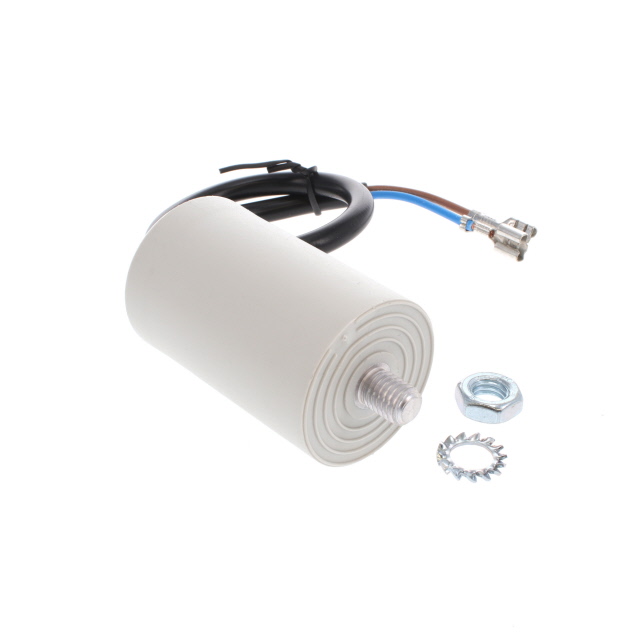

KEMET C274ACH4700LG0J		Disconnect Quick Connect		7 µF	85 °C	-25 °C	Motor Run	1.378 "	35 mm	Chassis Stud Mount	Polypropylene (PP) Metallized			5 %	470 V	Can Radial	59 mm	2.323 in
KEMET C274AC34800SA0J	6.3 mm	Quick Connect	0.25 "	8 µF	85 °C	-25 °C	Motor Run	1.378 "	35 mm	Chassis Stud Mount	Polypropylene (PP) Metallized	0.528 in	13.4 mm	5 %	470 V	Can Radial				58.5 mm	2.303 in
KEMET C274AC35400SA0J	6.3 mm	Quick Connect	0.25 "	40 µF	85 °C	-25 °C	Motor Run	1.969 in	50 mm	Chassis Stud Mount	Polypropylene (PP) Metallized	0.528 in	13.4 mm	5 %	470 V	Can Radial					4.843 in	123 mm
KEMET C274AC35150SA0J	6.3 mm	Quick Connect	0.25 "	15 µF	85 °C	-25 °C	Motor Run	1.575 in	40 mm	Chassis Stud Mount	Polypropylene (PP) Metallized	0.528 in	13.4 mm	5 %	470 V	Can Radial	75.5 mm	2.972 in
