CMV4000 Series

Catalog

IMAGE SENSORS & COLOR SENSORS AR

Part	Active Pixel Array [y]	Active Pixel Array [x]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Frames per Second	Pixel Size [y]	Pixel Size [x]	Supplier Device Package	Voltage - Supply	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]
ams-OSRAM USA INC. CMV4000-3E5M0PN	2048	2048	-30 ░C	70 °C	CMOS	180 fps	5.5 µm	5.5 µm
ams-OSRAM USA INC. CMV4000-3E12M1LP	2048	2048	-30 ░C	70 °C	CMOS	180 fps	5.5 µm	5.5 µm	95-LGA

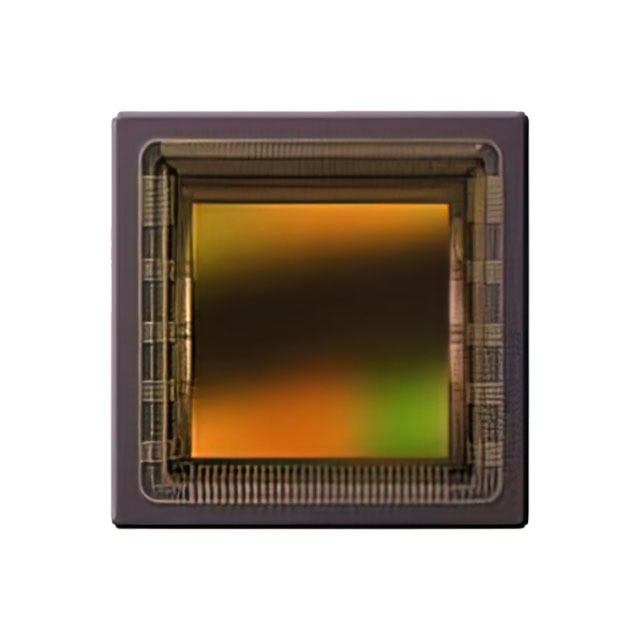

ams-OSRAM USA INC. CMV4000-3E5C1PP	1088 2048	2048	-30 ░C	70 °C	CMOS	340 per Second	5.5 µm	5.5 µm	95-MicroPGA	1.8 V 3.3 V
ams-OSRAM USA INC. CMV4000-3E5M1PN	2048	2048	-30 ░C	70 °C	CMOS	180 fps	5.5 µm	5.5 µm	95-MicroPGA
ams-OSRAM USA INC. CMV4000-2E5M1LP	1088 2048	2048	-30 ░C	70 °C	CMOS	340 per Second	5.5 µm	5.5 µm	95-LGA (18.65x18.65)		95-CBLGA	3.3 V	1.8 V
ams-OSRAM USA INC. CMV4000-3E5C1LP	2048	2048	-30 ░C	70 °C	CMOS	180 fps	5.5 µm	5.5 µm	95-LGA

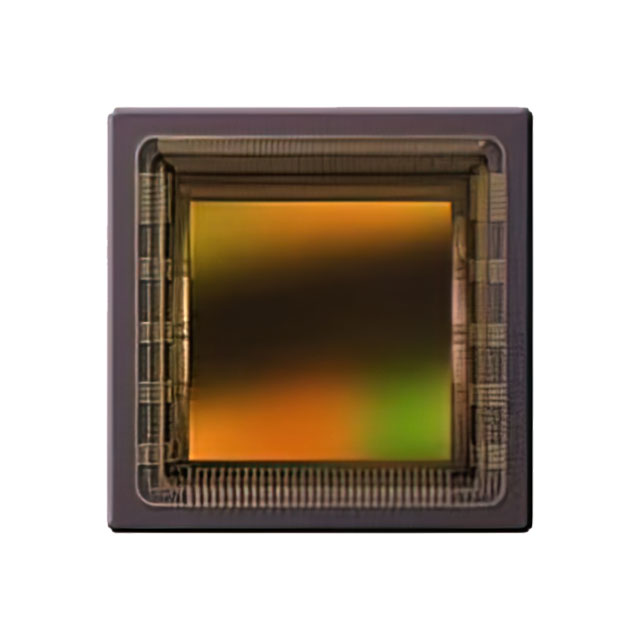

ams-OSRAM USA INC. CMV4000-3E5C1CA	2048	2048	-30 ░C	70 °C	CMOS	180 fps	5.5 µm	5.5 µm
ams-OSRAM USA INC. CMV4000-3E5M1PA	2048	2048	-30 ░C	70 °C	CMOS	180 fps	5.5 µm	5.5 µm

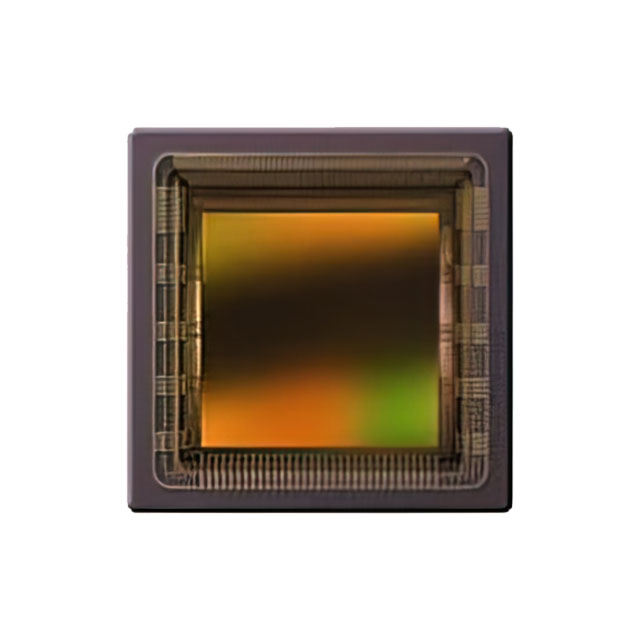

ams-OSRAM USA INC. CMV4000-3E5M1PP	2048	2048	-30 ░C	70 °C	CMOS	180 fps	5.5 µm	5.5 µm

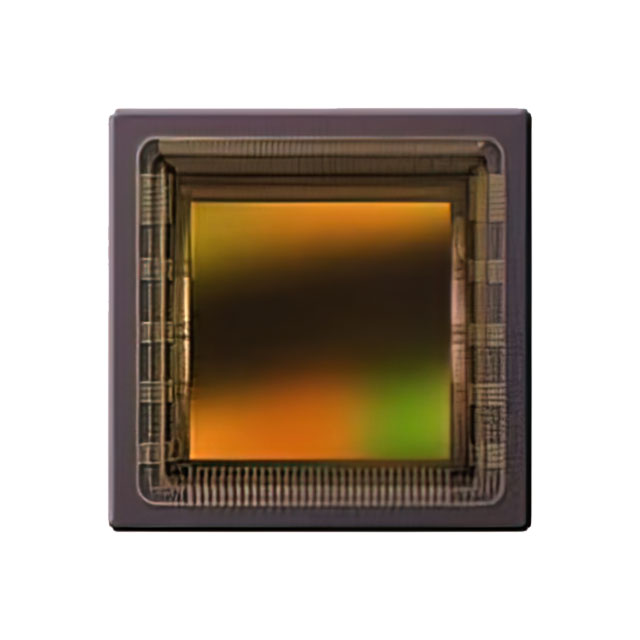

ams-OSRAM USA INC. CMV4000-3E5M1CA	1088 2048	2048	-30 ░C	70 °C	CMOS	340 per Second	5.5 µm	5.5 µm	92-LCC	1.8 V 3.3 V
