316-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 38POS 0.156

Part	Material - Insulation	Termination Rows	Gender	Contact Finish	Color	Read Out	Number of Rows [custom]	Pitch	Pitch	Contact Material	Number of Positions/Bay/Row	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Type	Mounting Type	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 316-019-520-101	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder	0.25 Ám	10 Áin	Non Specified - Dual Edge	Through Hole
EDAC Inc. 316-019-500-107	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder Eyelet(s)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 316-019-521-107	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder	0.25 Ám	10 Áin	Non Specified - Dual Edge	Through Hole	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 316-019-521-178	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder	0.25 Ám	10 Áin	Non Specified - Dual Edge	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 316-019-500-158	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder Eyelet(s)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 316-019-521-101	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder	0.25 Ám	10 Áin	Non Specified - Dual Edge	Through Hole
EDAC Inc. 316-019-420-107	Polyester Thermoplastic	1	Female	Tin	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder			Non Specified - Dual Edge	Panel Mount Through Hole	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 316-019-520-104	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder	0.25 Ám	10 Áin	Non Specified - Dual Edge	Through Hole	Flush Mount Top Opening Unthreaded		0.156 "	3.96 mm
EDAC Inc. 316-019-500-102	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder Eyelet(s)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount	Flush Mount Top Opening Unthreaded		0.128 "	3.25 mm

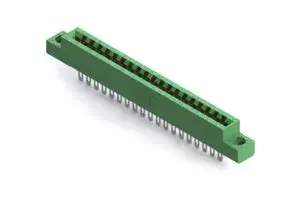

EDAC Inc. 316-019-500-104	Polyester Thermoplastic	1	Female	Gold	Green	Dual	2	3.96 mm	0.156 in	Copper Alloy	19	38	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	Solder Eyelet(s)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount	Flush Mount Top Opening Unthreaded		0.156 "	3.96 mm
