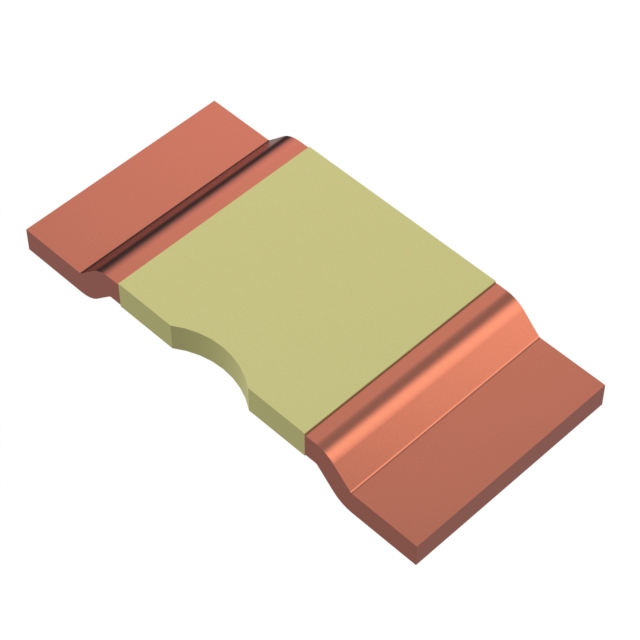

PSR100KTQFH1L00 Series

6432 (2512) size, 8W, 1mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Catalog

6432 (2512) size, 8W, 1mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Part	Resistance	Features	Ratings	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Number of Terminations	Tolerance	Power (Watts)	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]
Rohm Semiconductor PSR100KTQFH1L00	1 mOhms	Automotive AEC-Q200 Current Sense	AEC-Q200	Metal Element	0.035 "	0.9 mm	6432 Metric	2512	2	1 %	8 W	100 ppm/°C	0 ppm/°C	2512	3.05 mm	0.25 "	6.35 mm	0.12 "	-65 ░C	347 °F

Catalog

6432 (2512) size, 8W, 1mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Key Features

• High power max 15W, Ultra low resistance range (0.1mΩ or more)., Excellent TCR characteristic, Convex structure, ROHM resistors have obtained ISO9001 / IATF16949 certification., Corresponds to AEC-Q200.

Description

PSR100 series is ideal for current detection under high current circuit.
