EGB.2B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 12POS GOLD CRIMP

Part	Contact Finish - Mating	Contact Material	Shielding	Termination	Ingress Protection	Current Rating (Amps)	Mounting Feature	Material Flammability Rating	Mounting Type	Insert Material	Shell Finish	Number of Positions	Primary Material	Connector Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Fastening Type	Shell Size - Insert [custom]
LEMO EGB.2B.312.CYM	Gold	Bronze	Shielded	Crimp	IP50 - Dust Protected	7 A	Bulkhead - Rear Side Nut	UL94 V-0	Panel Mount	Polyetheretherketone (PEEK)	Chrome	12	Metal	Receptacle Female Sockets	B	-55 C	250 °C	Silver	312	1.5 Ám	59 Áin	Brass	Push-Pull
LEMO EGB.2B.305.CLL	Gold	Bronze	Shielded		IP50 - Dust Protected	14 A	Bulkhead - Rear Side Nut	UL94 V-0	Panel Mount	Polyetheretherketone (PEEK)	Chrome	5	Metal	Receptacle Female Sockets	B	-55 C	250 °C	Silver	305	1.5 Ám	59 Áin	Brass	Push-Pull
LEMO EGB.2B.304.CLL	Gold	Bronze	Shielded		IP50 - Dust Protected	15 A	Bulkhead - Rear Side Nut	UL94 V-0	Panel Mount	Polyetheretherketone (PEEK)	Chrome	4	Metal	Receptacle Female Sockets	B	-55 C	250 °C	Silver	304	1.5 Ám	59 Áin	Brass	Push-Pull
LEMO EGB.2B.316.CLL	Gold	Bronze	Shielded		IP50 - Dust Protected	6 A	Bulkhead - Rear Side Nut	UL94 V-0	Panel Mount	Polyetheretherketone (PEEK)	Chrome	16	Metal	Receptacle Female Sockets	B	-55 C	250 °C	Silver		1.5 Ám	59 Áin	Brass	Push-Pull	316

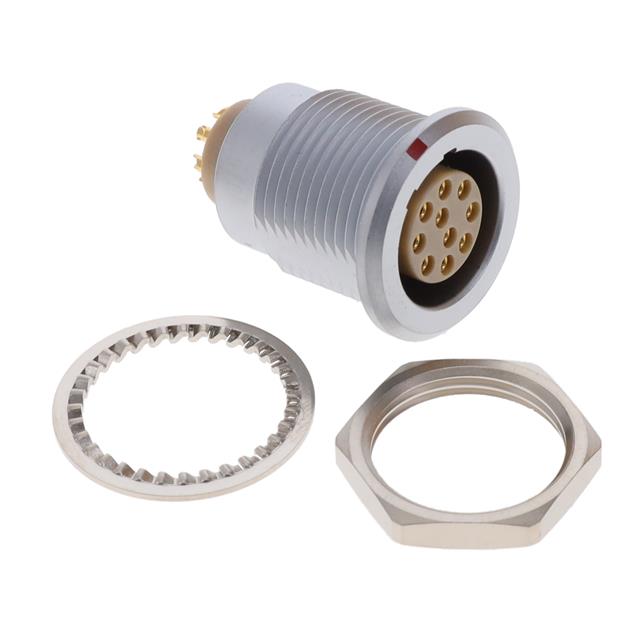

LEMO EGB.2B.310.CLL	Gold	Bronze	Shielded		IP50 - Dust Protected	8 A	Bulkhead - Rear Side Nut	UL94 V-0	Panel Mount	Polyetheretherketone (PEEK)	Chrome	10	Metal	Receptacle Female Sockets	B	-55 C	250 °C	Silver	310	1.5 Ám	59 Áin	Brass	Push-Pull
LEMO EGB.2B.316.CLN	Gold	Bronze	Shielded	Solder	IP50 - Dust Protected	6 A	Bulkhead - Rear Side Nut	UL94 V-0	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Chrome	16	Metal	Receptacle Female Sockets	B	-55 C	250 °C	Silver		1.5 Ám	59 Áin	Brass	Push-Pull	316
