T310 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG MALE 4POS SILVER SCREW

Part	Ingress Protection	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Termination	Mounting Type	Current Rating (Amps)	Fastening Type	Primary Material	Contact Finish - Mating	Voltage Rating	Mounting Feature
Amphenol Tuchel Industrial T3108 001	IP67 - Dust Tight Waterproof	Plug Male Pins	-40 C	100 °C	4	Strain Relief	Screw	Free Hanging (In-Line)	16 A	Threaded	Plastic	Silver	400 V

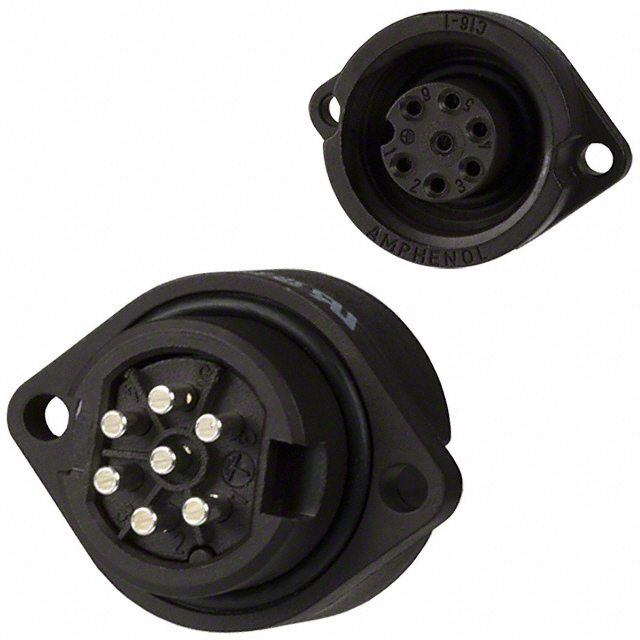

Amphenol Tuchel Industrial T3107 000	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	-40 C	100 °C	7		Solder	Panel Mount	10 A	Threaded	Plastic	Silver	250 V	Flange
Amphenol Tuchel Industrial T3104 101	IP67 - Dust Tight Waterproof	Plug Male Pins	-40 C	100 °C	7	Strain Relief	Solder	Free Hanging (In-Line)	10 A	Threaded	Plastic	Silver	250 V

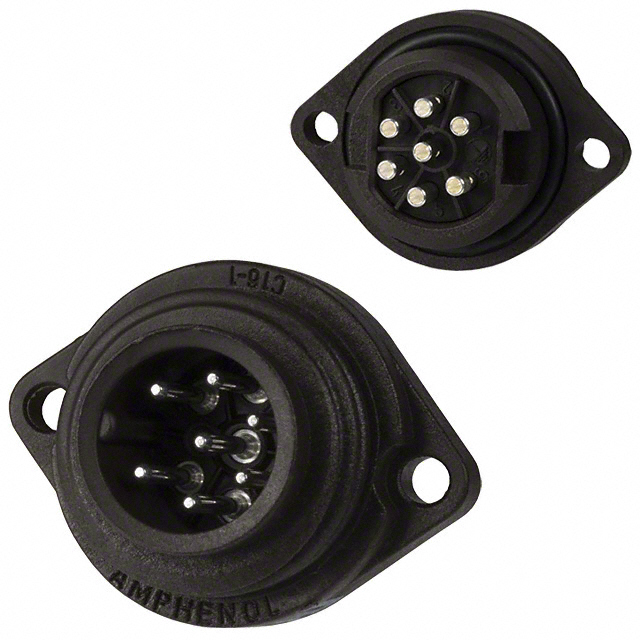

Amphenol Tuchel Industrial T3106 000	IP67 - Dust Tight Waterproof	Receptacle Male Pins	-40 C	100 °C	7		Solder	Panel Mount	10 A	Threaded	Plastic	Silver	250 V	Flange

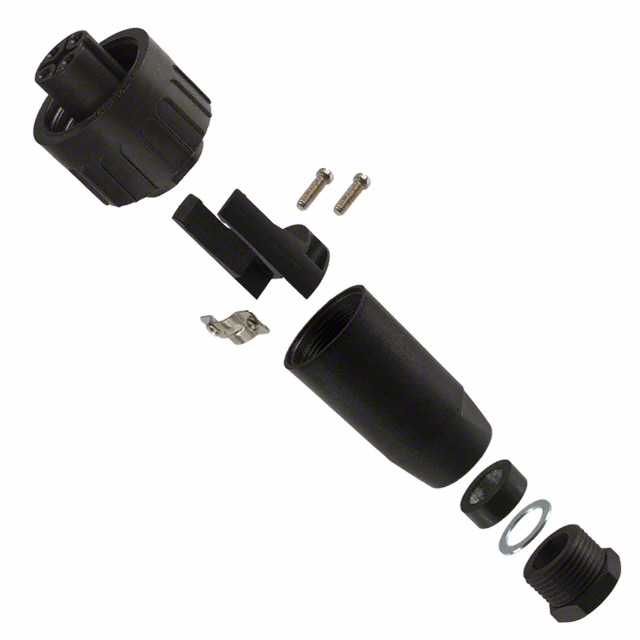

Amphenol Tuchel Industrial T3109 101	IP67 - Dust Tight Waterproof	Plug Female Sockets	-40 C	100 °C	4	Strain Relief	Screw	Free Hanging (In-Line)	16 A	Threaded	Plastic	Silver	400 V
Amphenol Tuchel Industrial T3109 001	IP67 - Dust Tight Waterproof	Plug Female Sockets	-40 C	100 °C	4	Strain Relief	Screw	Free Hanging (In-Line)	16 A	Threaded	Plastic	Silver	400 V

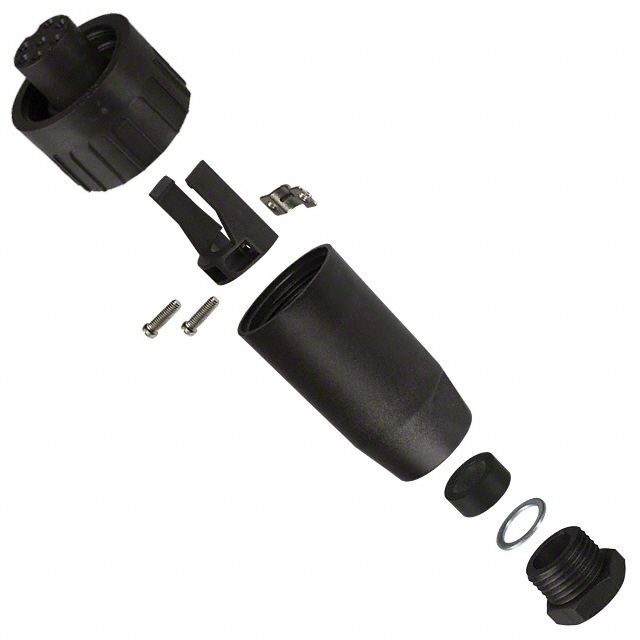

Amphenol Tuchel Industrial T3105 001	IP67 - Dust Tight Waterproof	Plug Female Sockets	-40 C	100 °C	7	Strain Relief	Solder	Free Hanging (In-Line)	10 A	Threaded	Plastic	Silver	250 V

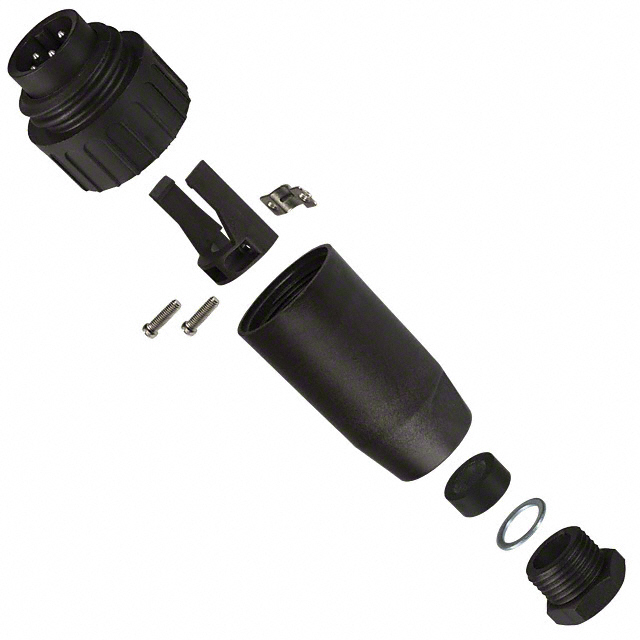

Amphenol Tuchel Industrial T3104 001	IP67 - Dust Tight Waterproof	Plug Male Pins	-40 C	100 °C	7	Strain Relief	Solder	Free Hanging (In-Line)	10 A	Threaded	Plastic	Silver	250 V

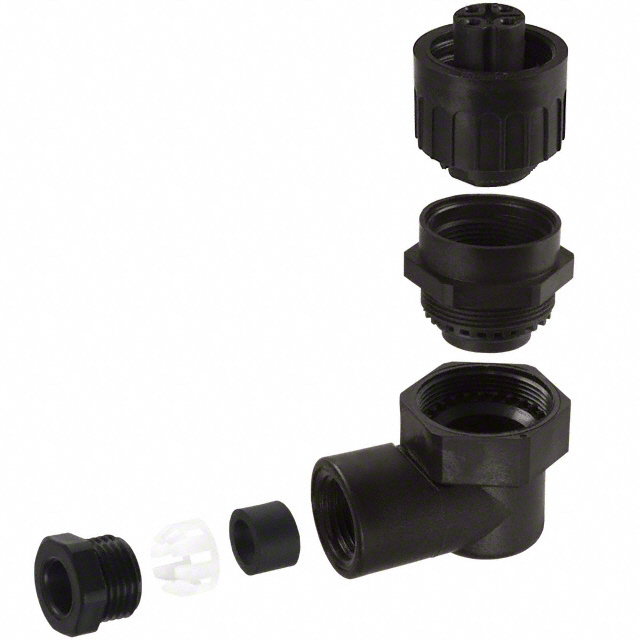

Amphenol Tuchel Industrial T3109 081	IP67 - Dust Tight Waterproof	Plug Female Sockets	-40 C	100 °C	4	Cable Clamp	Screw	Free Hanging (In-Line) Right Angle	16 A	Threaded	Plastic	Silver	400 V
Amphenol Tuchel Industrial T3108 101	IP67 - Dust Tight Waterproof	Plug Male Pins	-40 C	100 °C	4	Strain Relief	Screw	Free Hanging (In-Line)	16 A	Threaded	Plastic	Silver	400 V
