0341-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.025 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Socket Depth	Socket Depth	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0341-0-15-01-30-02-10-0	-55 C	125 °C	Beryllium Copper	0.2 in	5.08 mm	Solder	2.54 µm	100 µin	Tin-Lead	0.093 in	2.36 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	1.85 mm	0.073 in
Mill-Max Manufacturing Corp. 0341-0-15-01-30-14-10-0	-55 C	125 °C	Beryllium Copper	0.2 in	5.08 mm	Solder	0.25 Ám	10 Áin	Gold	0.093 in	2.36 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	1.85 mm	0.073 in
Mill-Max Manufacturing Corp. 0341-0-15-80-30-14-10-0	-55 C	125 °C	Beryllium Copper	0.2 in	5.08 mm	Solder	0.25 Ám	10 Áin	Gold	0.093 in	2.36 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	1.85 mm	0.073 in
Mill-Max Manufacturing Corp. 0341-0-15-80-30-27-10-0	-55 C	125 °C	Beryllium Copper	0.2 in	5.08 mm	Solder	0.76 Ám	30 Áin	Gold	0.093 in	2.36 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	1.85 mm	0.073 in

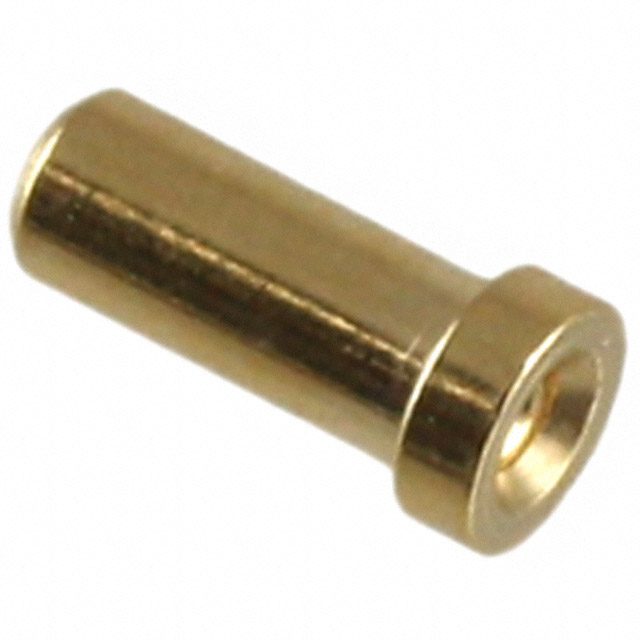

Mill-Max Manufacturing Corp. 0341-0-15-15-30-27-10-0	-55 C	125 °C	Beryllium Copper	0.2 in	5.08 mm	Solder	0.76 Ám	30 Áin	Gold	0.093 in	2.36 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	1.85 mm	0.073 in
Mill-Max Manufacturing Corp. 0341-0-15-15-30-14-10-0	-55 C	125 °C	Beryllium Copper	0.2 in	5.08 mm	Solder	0.25 Ám	10 Áin	Gold	0.093 in	2.36 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	1.85 mm	0.073 in
