OSTTS10 Series

Catalog

TERM BLOCK PLUG 10POS 3.5MM

Part	Material Flammability Rating	Housing Material	Torque - Screw	Torque - Screw	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Color	Type	Voltage - UL	Pitch	Pitch	Termination Style	Positions Per Level	Number of Positions	Wire Gauge or Range - mm²	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Mating Finish
On Shore Technology Inc. OSTTS10115C	UL94 V-0	Brass	1.7 Lb-In	0.2 Nm	Brass	7 mm	6 mm	Green	Plug Female Sockets	300 V	3.5 mm	0.138 "	Screw	10	10	1.5 mm²	28 AWG	16 AWG	Free Hanging (In-Line)	115 °C	-40 C	1

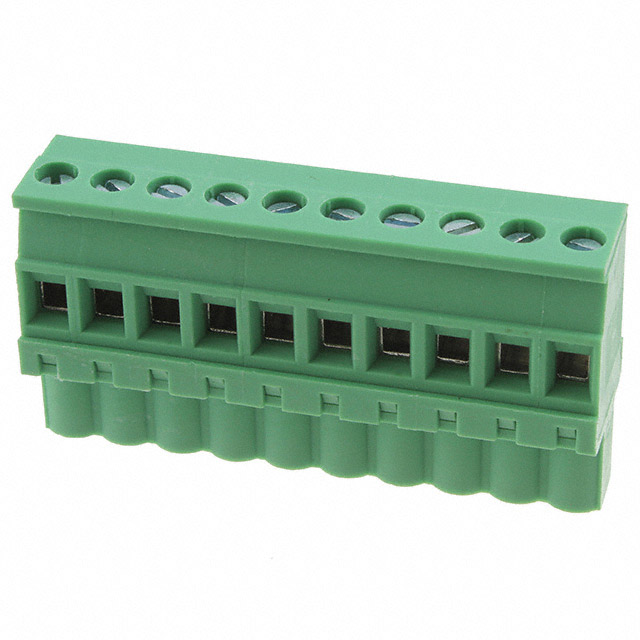

On Shore Technology Inc. OSTTS10715B	UL94 V-0	Brass	3.5 Lb-In	0.4 Nm	Brass	7 mm	6 mm	Green	Plug Female Sockets	300 V	5 mm	0.197 in	Screw	10	10		24 AWG	12 AWG	Free Hanging (In-Line)	105 ░C	-30 ░C	1	0.34 mm²	2.5 mm²

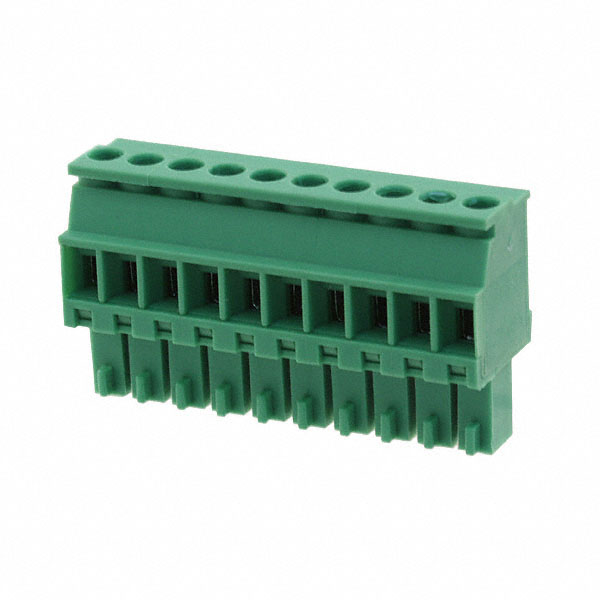

On Shore Technology Inc. OSTTS10115A		Brass	1.7 Lb-In	0.2 Nm	Brass	7 mm	6 mm	Green	Plug Female Sockets	300 V	3.5 mm	0.138 "	Screw	10	10	1.5 mm²	28 AWG	16 AWG	Free Hanging (In-Line)	105 ░C	-30 ░C	1
On Shore Technology Inc. OSTTS10A15D	UL94 V-0	Brass	3.5 Lb-In	0.4 Nm	Brass	7 mm	6 mm		Plug Female Sockets	300 V	7.5 mm	0.295 in	Screw	10	10		24 AWG	12 AWG	Free Hanging (In-Line)	105 ░C	-30 ░C	1
On Shore Technology Inc. OSTTS10015C	UL94 V-0	Brass	3.5 Lb-In	0.4 Nm	Brass	7 mm	6 mm		Plug Female Sockets	300 V	7.62 mm	0.3 in	Screw	10	10		24 AWG	12 AWG	Free Hanging (In-Line)	105 ░C	-30 ░C	1
On Shore Technology Inc. OSTTS10315D	UL94 V-0	Brass	1.7 Lb-In	0.2 Nm	Brass	7 mm	6 mm	Green	Plug Female Sockets	300 V	3.81 mm	0.15 in	Screw	10	10	1.5 mm²	28 AWG	16 AWG	Free Hanging (In-Line)	105 ░C	-30 ░C	1
On Shore Technology Inc. OSTTS10715D	UL94 V-0	Brass	3.5 Lb-In	0.4 Nm	Brass	7 mm	6 mm	Green	Plug Female Sockets	300 V	5 mm	0.197 in	Screw	10	10		24 AWG	12 AWG	Free Hanging (In-Line)	105 ░C	-30 ░C	1	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS10A15C	UL94 V-0	Brass	3.5 Lb-In	0.4 Nm	Brass	7 mm	6 mm		Plug Female Sockets	300 V	7.5 mm	0.295 in	Screw	10	10		24 AWG	12 AWG	Free Hanging (In-Line)	105 ░C	-30 ░C	1
On Shore Technology Inc. OSTTS10115B		Thermoplastic	1.7 Lb-In	0.2 Nm	Phosphor Bronze	7 mm	6 mm	Green	Plug Female Sockets	300 V	3.5 mm	0.138 "	Screw	10	10	1.5 mm²	28 AWG	16 AWG	Free Hanging (In-Line)	115 °C	-40 C	1			Tin

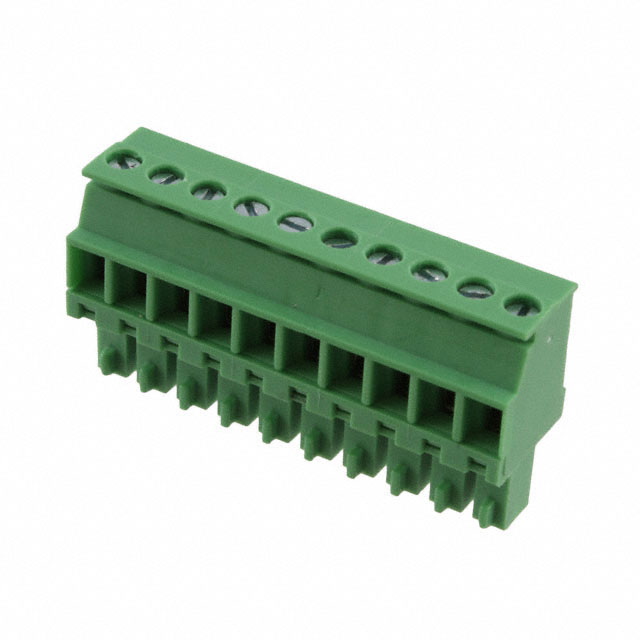

On Shore Technology Inc. OSTTS10315A		Brass	1.7 Lb-In	0.2 Nm	Brass	7 mm	6 mm	Green	Plug Female Sockets	300 V	3.81 mm	0.15 in	Screw	10	10	1.5 mm²	28 AWG	16 AWG	Free Hanging (In-Line)	105 ░C	-30 ░C	1
