PDSH06 Series
Manufacturer: Altech Corporation
Beta
⌘K

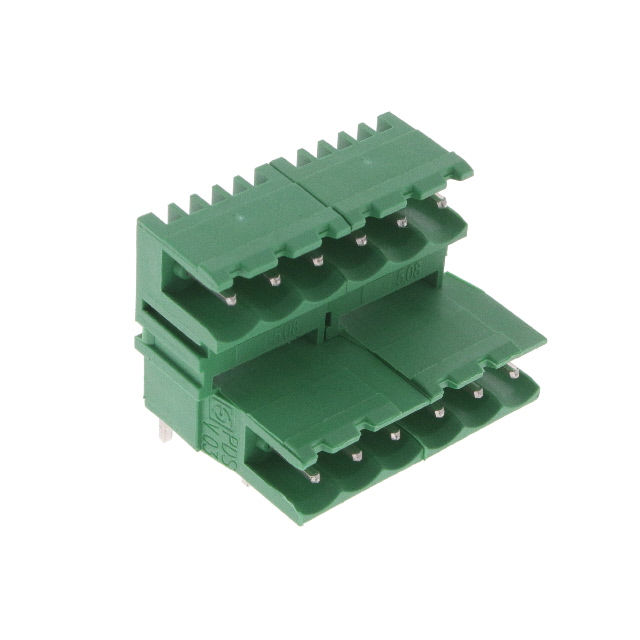

CONN TERM BLK 12POS 5.08MM
| Part | Housing Material | Insulation Height | Material Flammability Rating | Contact Material | Contact Tail Length | Contact Mating Finish | Type | Mounting Type | Voltage - IEC | Features | Current - IEC | Voltage - UL | Number of Levels | Operating Temperature (Min) | Operating Temperature (Max) | Color | Number of Positions | Header Orientation Angle | Header Orientation | Pitch | Current - UL | Termination Style | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | Nylon PA Polyamide | 0.935 in | UL94 V-0 | Copper Alloy | 0.161 in | Tin | Header Male Pins Shrouded (2 Side) | Through Hole | 250 V | Interlocking (Side) | 12 A | 300 V | 2 | -30 °C | 105 °C | Green | 12 | 90 ° | Right Angle | 5.08 mm | 12 A | Solder | 6 |
 Altech Corporation |
