6331-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

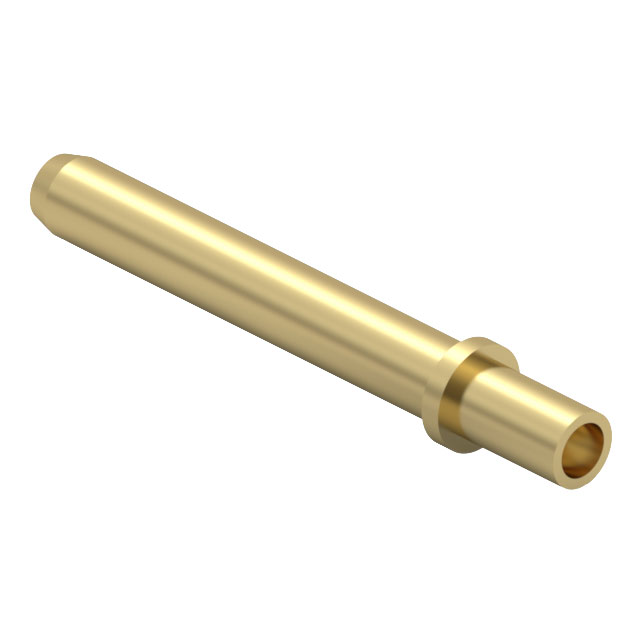

.796" LONG SWAGE PIN
| Part | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Board Thickness | Board Thickness | Length - Overall [x] | Length - Overall [x] | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Style | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | 0.09 in | 2.29 mm | 0.094 in | 2.39 mm | 3.18 mm | 0.125 " | 20.22 mm | 0.796 in | Brass Alloy | 0.093 in | 2.36 mm | 0.125 in | 3.18 mm | 0.25 Ám | 10 Áin | Swage | Through Hole | Gold | 3.96 mm | 0.156 " | 15.62 mm | 0.615 in | Single End | PC Pin |
