AWHW2-24 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

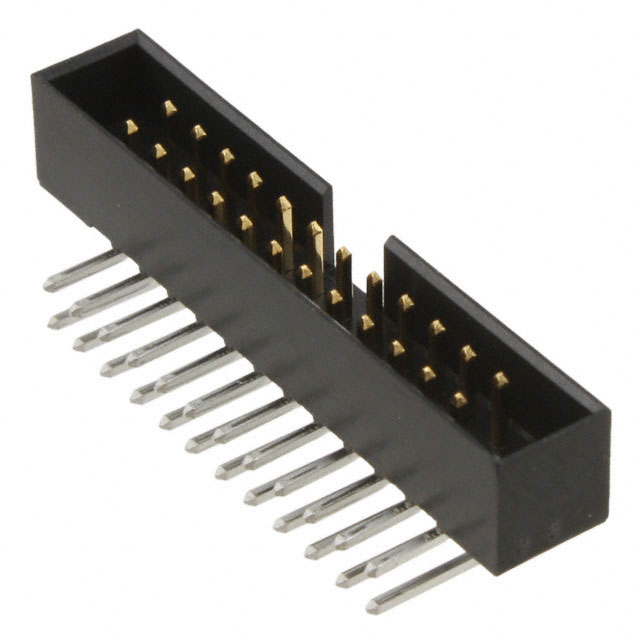

CONN HEADER R/A 24POS 2MM
| Part | Style | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Type | Pitch - Mating | Pitch - Mating | Number of Positions | Termination | Insulation Material | Material Flammability Rating | Contact Finish Thickness - Mating | Connector Type | Features | Number of Rows [custom] | Contact Length - Post [custom] | Contact Length - Post | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Material | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Insulation Color | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Board to Cable/Wire | 0.217 in | 5.51 mm | 1.5 A | Male Pin | 0.079 " | 2 mm | 24 | Solder | Glass Filled Nylon 9T Polyamide (PA9T) | UL94 V-0 | Flash | Header | Keying Slot | 2 | 0.11 in | 2.79 mm | Gold | 4 mm | 0.157 in | All | Brass | Shrouded - 4 Wall | 2 mm | 0.079 in | Push-Pull | Black | Square | -40 C | 105 ░C | Right Angle Through Hole |
