745-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 7POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Material | Mounting Type | Read Out | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Card Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Termination | Pitch | Pitch | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

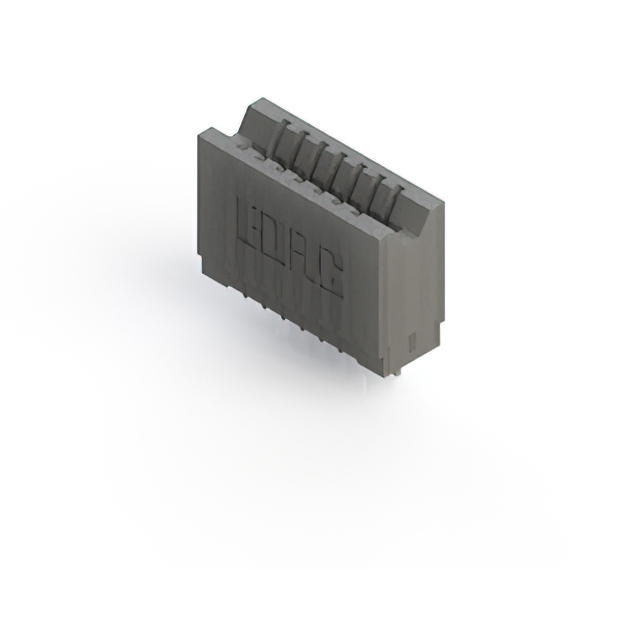

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Through Hole | Single | Female | -40 C | 105 ░C | Black | 7 | Non Specified - Single Edge | 1 | 30 Áin | 0.76 Ám | Press-Fit | 0.1 " | 2.54 mm | 7 |

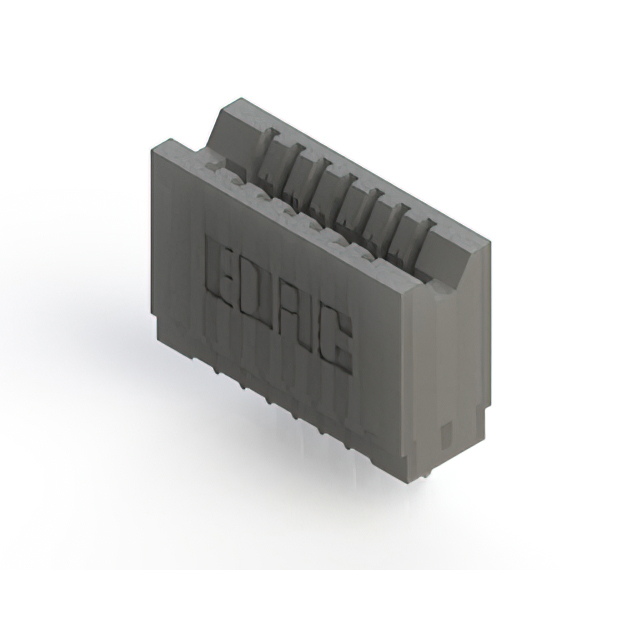

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Through Hole | Single | Female | -40 C | 105 ░C | Black | 7 | Non Specified - Single Edge | 1 | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | 0.1 " | 2.54 mm | 7 |
