FFC1212 Series
Manufacturer: Delta Electronics
Beta
⌘K

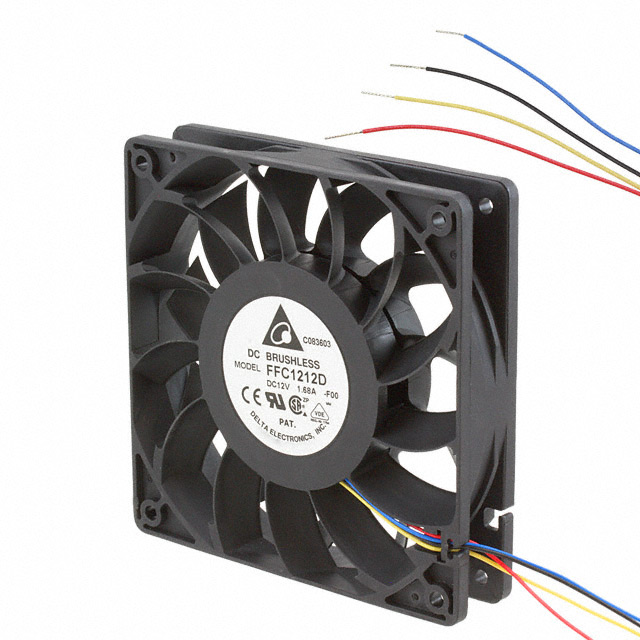

FAN AXIAL 120X25MM 12VDC WIRE
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Lifetime @ Temp. | Current Rating (Amps) | Fan Type | Termination | Features | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Weight | Weight | Noise | Power (Watts) | Approval Agency | Width [y] | Voltage - Rated | Static Pressure | Static Pressure | Size / Dimension [z] | Size / Dimension [x] | RPM | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 10.8 VDC | 12.6 VDC | Plastic | 70000 Hrs | 1.45 A | Tubeaxial | 4 Wire Leads | Locked Rotor Protection PWM Control Speed Sensor (Tach) | -10 °C | 60 °C | 4.21 m³/min | 150.3 CFM | 205.02 g | 0.452 lb | 56.4 dB(A) | 17.4 W | CE CSA UL VDE | 25 mm | 12 VDC | 0.489 in H2O | 121.9 Pa | 120 mm | 120 mm | 4000 RPM | Ball |
