DD12.6121 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Connector Type	Features	Connector Style	Current Rating - Appliance Inlet	Approval Agency	Ingress Protection	Filter Type	Material Flammability Rating	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Switch Features	Termination	Termination	Termination	Current Rating - Filter	Panel Thickness	Panel Thickness

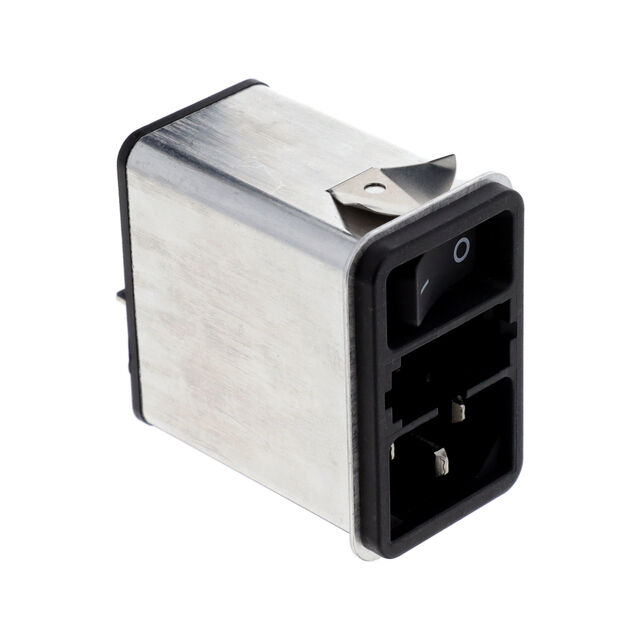

SCHURTER Inc. DD12.6121.131	250 VAC	Drawer Sold Separate	0.118 in	3 mm	1 mm	0.039 in	Receptacle Male Blades - Module	Earth Line Choke Shielded V-Lock Notch	IEC 320-C14	10 A	cURus ENEC	IP40	Filtered (EMI RFI) - Commercial	UL94 V-0	29.8 mm	49.3 mm	Panel Mount Snap-In	Switch On-Off	6.3 mm	Quick Connect	0.25 "
SCHURTER Inc. DD12.6121.111	250 VAC	Drawer Sold Separate					Receptacle Male Blades - Module	Earth Line Choke Shielded V-Lock Notch	IEC 320-C14	10 A	cURus ENEC	IP40	Filtered (EMI RFI) - Commercial	UL94 V-0	29.8 mm	49.3 mm	Flange Panel Mount	Switch On-Off	6.3 mm	Quick Connect	0.25 "	6 A	8 mm	0.315 in

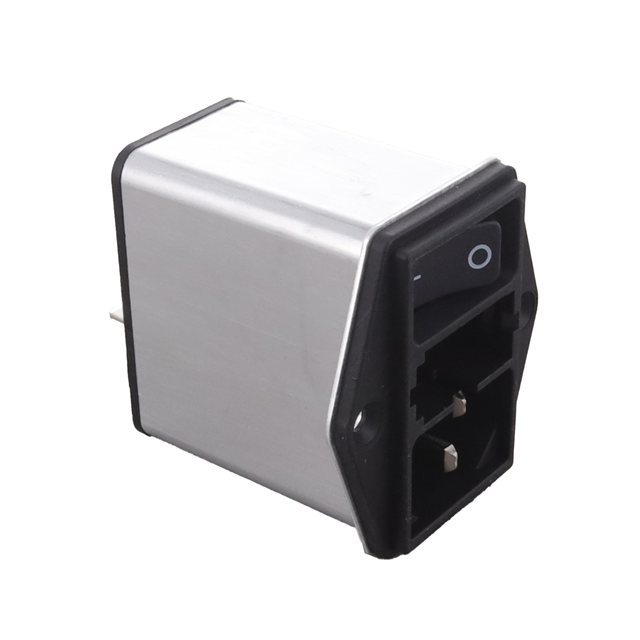

SCHURTER Inc. DD12.6121.121	250 VAC	Drawer Sold Separate					Receptacle Male Blades - Module	Earth Line Choke Shielded V-Lock Notch	IEC 320-C14	10 A	cURus ENEC	IP40	Filtered (EMI RFI) - Commercial	UL94 V-0	29.8 mm	49.3 mm	Flange Panel Mount	Switch On-Off	6.3 mm	Quick Connect	0.25 "		8 mm	0.315 in
