PZC04 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 8POS 2.54MM

Part	Material Flammability Rating	Termination	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Type	Style	Contact Finish - Mating	Connector Type	Contact Shape	Number of Positions Loaded	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Shrouding	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Fastening Type	Insulation Material	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]

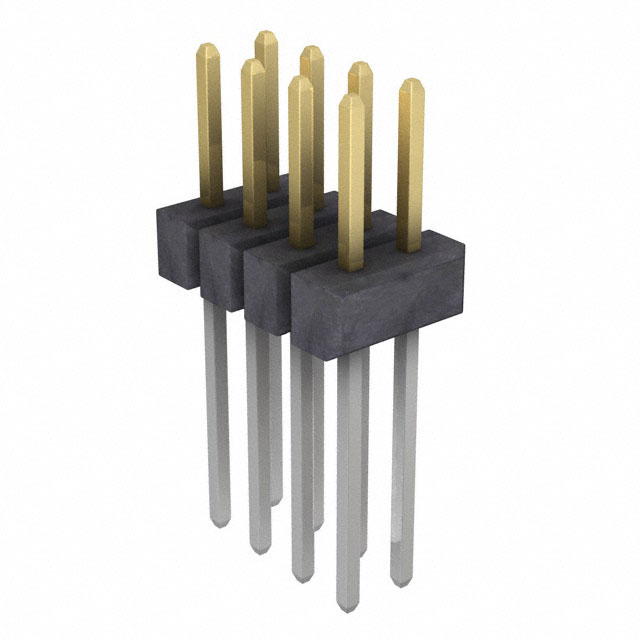

Sullins Connector Solutions PZC04DACN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.1 in	2.54 mm	16.51 mm	0.65 in	Unshrouded	0.1 "	2.54 mm	2	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm	3 A	Through Hole	2.54 µm	100 µin	Black	8.13 mm	0.32 in	8	0.1 in	2.54 mm
Sullins Connector Solutions PZC04SFDN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.1 in	2.54 mm	21.29 mm	0.838 in	Unshrouded	0.1 "	2.54 mm		Push-Pull	Polyester Thermoplastic	0.318 in	8.08 mm	3 A	Through Hole	2.54 µm	100 µin	Black	10.67 mm	0.42 in	4			1

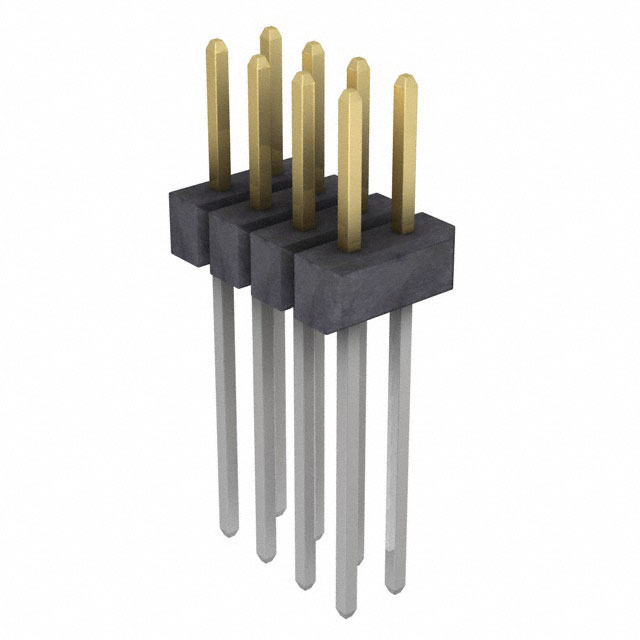

Sullins Connector Solutions PZC04DAEN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.1 in	2.54 mm	21.59 mm	0.85 in	Unshrouded	0.1 "	2.54 mm	2	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm	3 A	Through Hole	2.54 µm	100 µin	Black	13.21 mm	0.52 in	8	0.1 in	2.54 mm

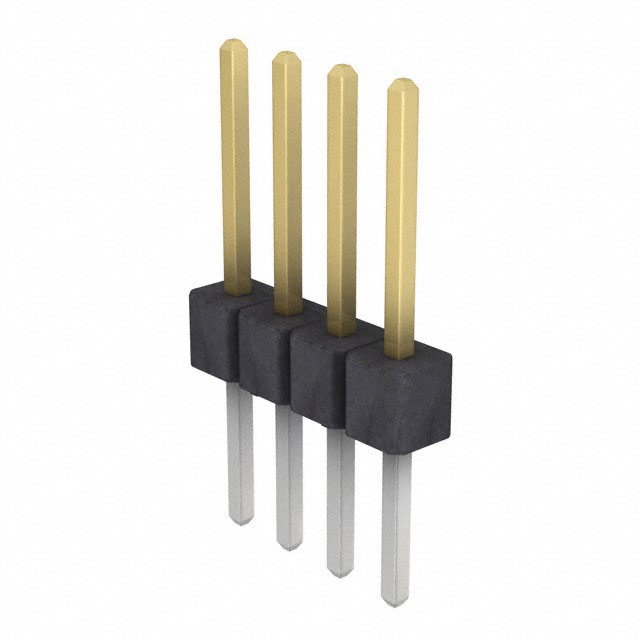

Sullins Connector Solutions PZC04SFBN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.1 in	2.54 mm	16.21 mm	0.638 in	Unshrouded	0.1 "	2.54 mm		Push-Pull	Polyester Thermoplastic	0.318 in	8.08 mm	3 A	Through Hole	2.54 µm	100 µin	Black	5.58 mm	0.22 in	4			1

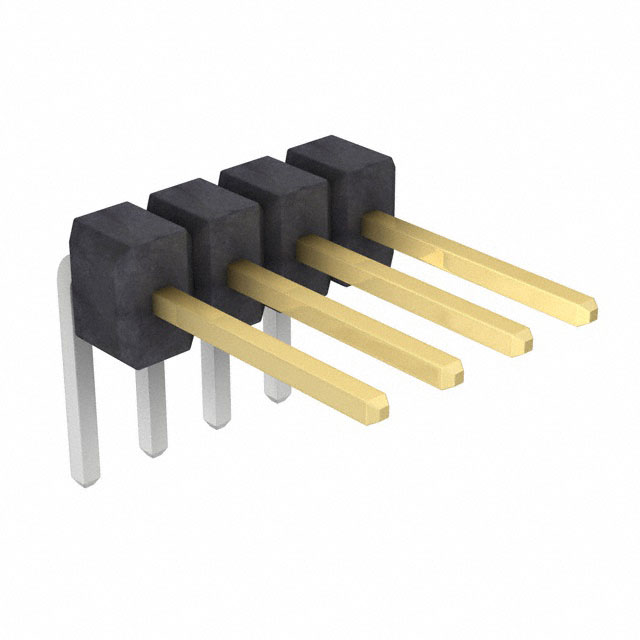

Sullins Connector Solutions PZC04SGBN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.14 in	3.56 mm			Unshrouded	0.1 "	2.54 mm		Push-Pull	Polyester Thermoplastic	0.318 in	8.08 mm	3 A	Right Angle Through Hole	2.54 µm	100 µin	Black	5.58 mm	0.22 in	4			1

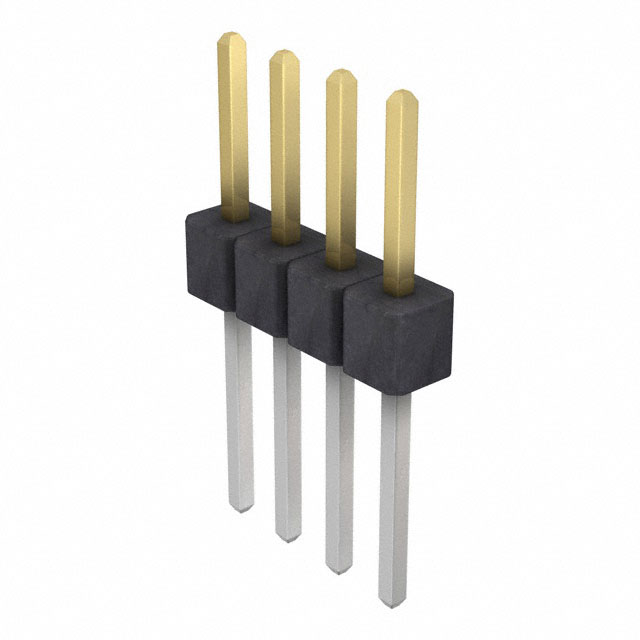

Sullins Connector Solutions PZC04SACN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.1 in	2.54 mm	16.51 mm	0.65 in	Unshrouded	0.1 "	2.54 mm		Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm	3 A	Through Hole	2.54 µm	100 µin	Black	8.13 mm	0.32 in	4			1
Sullins Connector Solutions PZC04DAFN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.1 in	2.54 mm	24.13 mm	0.95 in	Unshrouded	0.1 "	2.54 mm	2	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm	3 A	Through Hole	2.54 µm	100 µin	Black			8	0.1 in	2.54 mm		15.75 mm	0.62 "

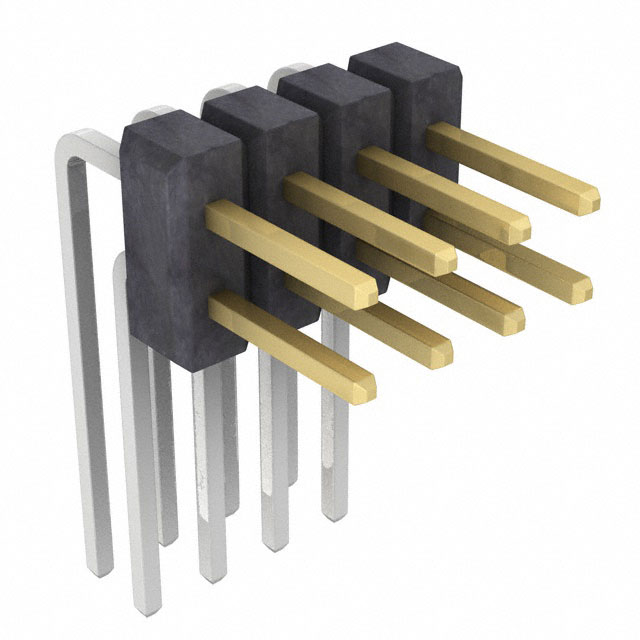

Sullins Connector Solutions PZC04DBDN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All					Unshrouded	0.1 "	2.54 mm	2	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm	3 A	Right Angle Through Hole	2.54 µm	100 µin	Black	10.67 mm	0.42 in	8	0.1 in	2.54 mm				6.1 mm	0.24 in

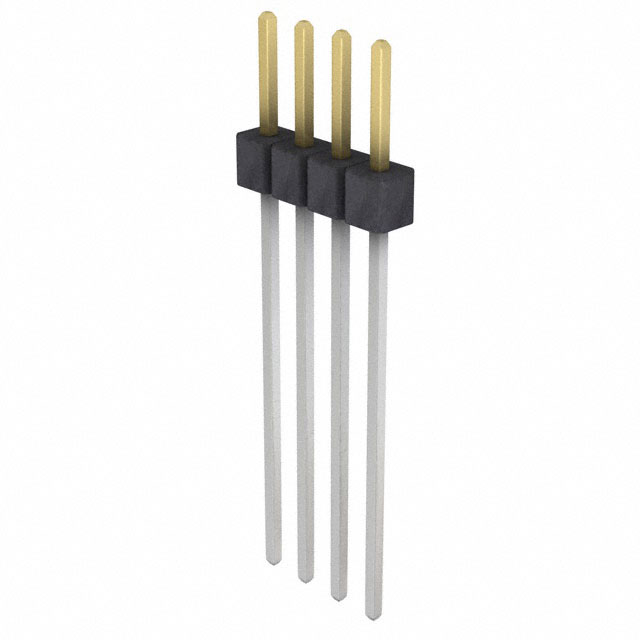

Sullins Connector Solutions PZC04SAHN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.1 in	2.54 mm	29.21 mm	1.15 in	Unshrouded	0.1 "	2.54 mm		Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm	3 A	Through Hole	2.54 µm	100 µin	Black	20.83 mm	0.82 in	4			1
Sullins Connector Solutions PZC04DAHN	UL94 V-0	Solder	Tin	0.25 µm	10 µin	Copper Alloy	Male Pin	Board to Board Cable	Gold	Header	Square	All	0.1 in	2.54 mm	29.21 mm	1.15 in	Unshrouded	0.1 "	2.54 mm	2	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm	3 A	Through Hole	2.54 µm	100 µin	Black	20.83 mm	0.82 in	8	0.1 in	2.54 mm
