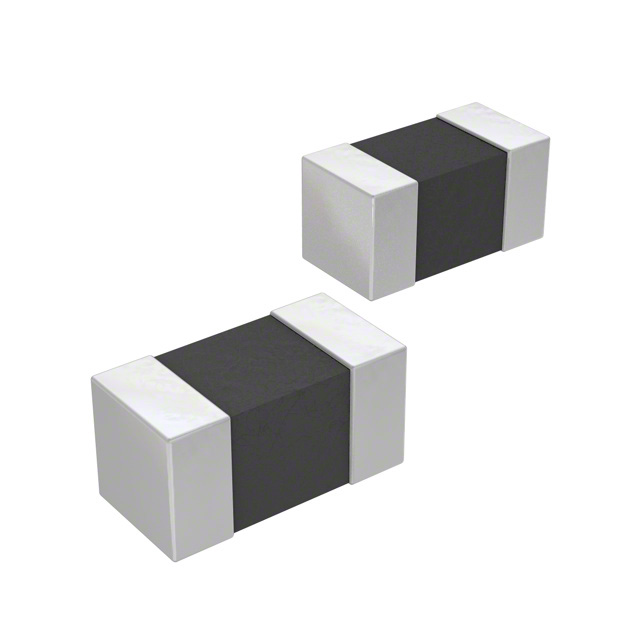

MU1005 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FERRITE BEAD 300 OHM 0402 1LN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Impedance @ Frequency | Number of Lines | Height (Max) [z] | Filter Type | DC Resistance (DCR) (Max) [Max] | Mounting Type | Current Rating (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | -55 C | 125 °C | 0402 (1005 Metric) | 300 Ohms | 1 | 0.024 in 0.6 mm | Power Signal Line | 500 mOhm | Surface Mount | 100 mA | 0.02 in | 0.5 mm | 0.039 " | 1 mm | |
Bourns Inc. | -55 C | 125 °C | 0402 (1005 Metric) | 60 Ohms | 1 | 0.024 in 0.6 mm | Power Signal Line | 250 mOhm | Surface Mount | 300 mA | 0.02 in | 0.5 mm | 0.039 " | 1 mm | |
Bourns Inc. | -55 C | 125 °C | 0402 (1005 Metric) | 10 Ohms | 1 | 0.024 in 0.6 mm | Power Signal Line | 100 mOhm | Surface Mount | 500 mA | 0.02 in | 0.5 mm | 0.039 " | 1 mm | |
Bourns Inc. | -55 C | 125 °C | 0402 (1005 Metric) | 120 Ohms | 1 | 0.024 in 0.6 mm | Power Signal Line | 300 mOhm | Surface Mount | 100 mA | 0.02 in | 0.5 mm | 0.039 " | 1 mm | |
Bourns Inc. | -55 C | 125 °C | 0402 (1005 Metric) | 240 Ohms | 1 | 0.024 in 0.6 mm | Power Signal Line | Surface Mount | 100 mA | 0.02 in | 0.5 mm | 0.039 " | 1 mm | 600 mOhm |
