1337469 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

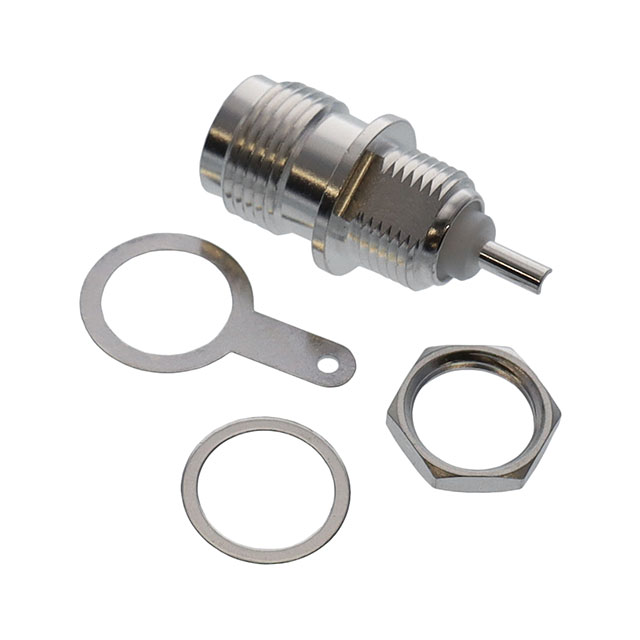

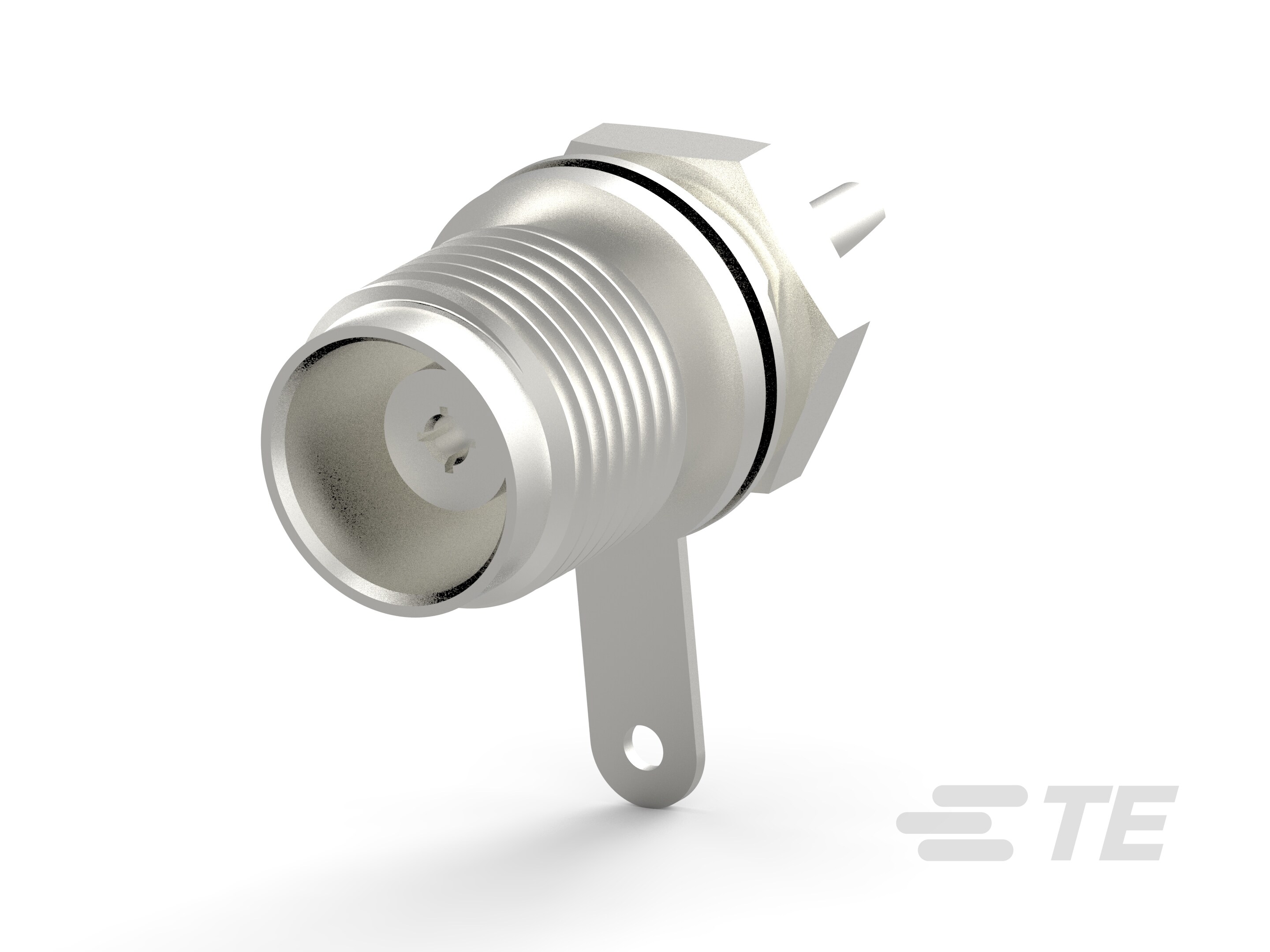

TNC BHSKT + TAG 50OHM SILVER PLTD
| Part | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Dielectric Material | Voltage Rating | Includes | Insertion Loss | Center Contact Material | Mounting Feature | Impedance | Number of Ports | Contact Termination | Fastening Type | Shield Termination | Mounting Type | Connector Type | Housing Color | Connector Style | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver | Silver | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | 500 V | 1 Connector 1 Nut 1 Solder Tag 1 Washer | 0.2 dB | Brass | Bulkhead - Rear Side Nut | 50 Ohms | 1 | Solder Cup | Threaded | Solder Tag | Panel Mount | Female Socket Jack | Silver | TNC | 11 GHz |
