9R Type Series

Catalog

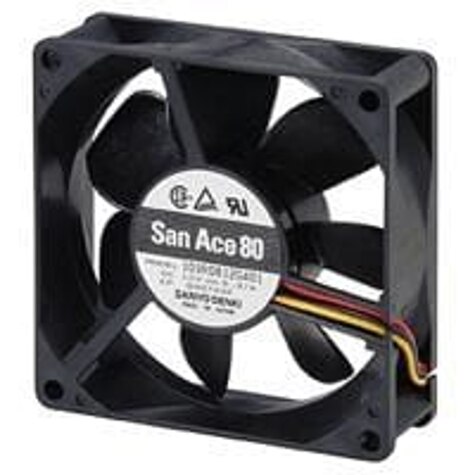

DC FANS AXIAL FAN, 80X80X25MM, 24VDC, 29.3CFM, 23DBA, RIBLESS, WIRE, LOCK ROTOR SENSOR

Part	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Features	Static Pressure	Static Pressure	Air Flow	Air Flow	Width [y]	Termination	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Power (Watts)	RPM	Weight	Weight	Noise	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Material - Blade
Sanyo Denki America Inc. 109R0824M4D011	24 VDC	80 mm	80 mm	Locked Rotor Sensor	0.09 in H2O	22.4 Pa	0.82 m³/min	29.3 CFM	25 mm	3 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	1.2 W	2350 RPM	110.22 g	0.243 lb	23 dB(A)	CSA TUV UL
Sanyo Denki America Inc. 109R0605F4021	5 V	60 mm	60 mm		0.118 in H2O	29.4 Pa	0.434 m³/min	15.5 CFM	25 mm	2 Wire Leads	Ball	-20 ░C	60 °C	Tubeaxial		3200 RPM	90.26 g	0.199 lb	24 dB	CSA TUV UL	60 °C	-4 °F
Sanyo Denki America Inc. 109R0648S4D011	48 VDC	60 mm	60 mm	Locked Rotor Sensor					25 mm	3 Wire Leads	Ball	-10 °C	60 °C	Tubeaxial		4600 RPM			33 dB(A)				53 VDC	40 V	Plastic	60 mA	Plastic
Sanyo Denki America Inc. 109R0812E401	12 VDC	80 mm	80 mm	Locked Rotor Protection Speed Sensor (Tach)	0.232 in H2O	57.8 Pa	1.3 m³/min	46.3 CFM	25 mm	3 Wire Leads	Ball	-20 ░C	60 °C	Tubeaxial	2.88 W	3700 RPM	110.22 g	0.243 lb	35 dB	CSA TUV UL	60 °C	-4 °F
Sanyo Denki America Inc. 109R0805M4021	5 V	80 mm	80 mm		0.09 in H2O	22.4 Pa	0.82 m³/min	29.3 CFM	25 mm	2 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	850 mW	2350 RPM	110.22 g	0.243 lb	23 dB(A)	CSA TUV UL			5.5 V	4.5 V	Plastic	0.17 A	Plastic
Sanyo Denki America Inc. 109R0605H4021	5 V	60 mm	60 mm				0.524 mł/min	18.7 CFM	25 mm	2 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	1.7 W	3800 RPM	90.26 g	0.199 lb	28 dB	CSA TUV UL			5.5 V	4.5 V	Plastic	0.34 A	Plastic
Sanyo Denki America Inc. 109R0812S4D01	12 VDC	80 mm	80 mm	Locked Rotor Sensor	0.193 in H2O	48.1 Pa			25 mm	3 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	2.16 W	3400 RPM	110.22 g	0.243 lb	34 dB(A)	CSA TUV UL
Sanyo Denki America Inc. 109R0612G401	12 VDC	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)	0.351 in H2O	87.3 Pa	0.77 m³/min	27.5 CFM	25 mm	3 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	2.88 W	5600 RPM	90.26 g	0.199 lb	39 dB(A)	CSA TUV UL
Sanyo Denki America Inc. 109R0605M402	5 V	60 mm	60 mm		0.079 in H2O	19.6 Pa			25 mm	2 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	0.65 W	2600 RPM	90.26 g	0.199 lb	20 dB	CSA TUV UL			5.5 V	4.5 V	Plastic		Plastic
Sanyo Denki America Inc. 109R0605F4D01	5 V	60 mm	60 mm	Locked Rotor Sensor	0.118 in H2O	29.4 Pa	0.434 m³/min	15.5 CFM	25 mm	3 Wire Leads	Ball	-20 ░C	60 °C	Tubeaxial		3200 RPM	90.26 g	0.199 lb	24 dB	CSA TUV UL	60 °C	-4 °F	5.5 V	4.5 V	Plastic	0.2 A	Plastic
