165617 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

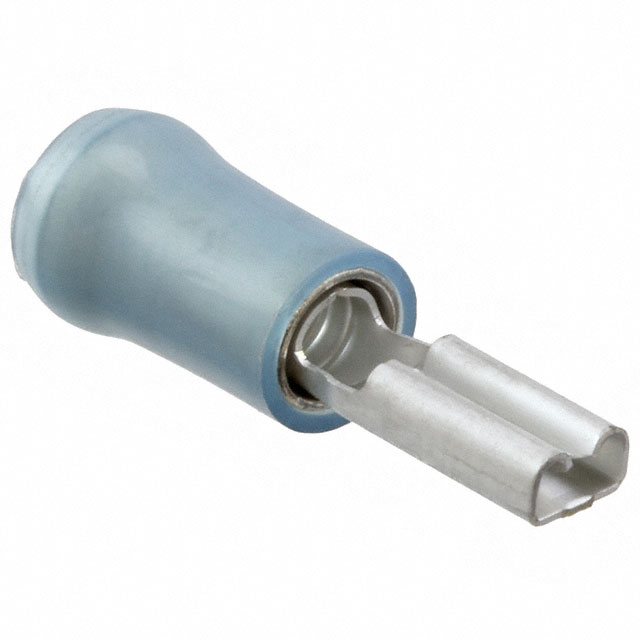

CONN QC RCPT 13.5-15.5AWG 0.110
| Part | Insulation | Tab Thickness | Tab Thickness | Color | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Mounting Type | Gender | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Termination | Contact Material | Tab Width | Tab Width | Tab Length | Tab Length | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non-Mating End Insulated | 0.032 in | 0.81 mm | Blue | 4.29 mm | 0.169 in | Free Hanging (In-Line) | Female | Tin | 16 AWG | 14 AWG | Standard | Crimp | Brass | 2.79 mm | 0.11 " | 0.248 in | 6.3 mm | 0.78 in | 19.81 mm |
