G3B15AB Series

Catalog

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Mounting Type	Actuator Marking	Actuator Type	Voltage Rating - AC	Circuit	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Type	Features	Color - Actuator/Cap
NKK Switches G3B15AB-S	50000 Cycles	50000 Cycles	28 V	Surface Mount	No Marking	Plunger Round	28 V	SPDT	0.4 VA	On-Mom	85 °C	-30 ░C	Gull Wing	Standard	Process Sealed

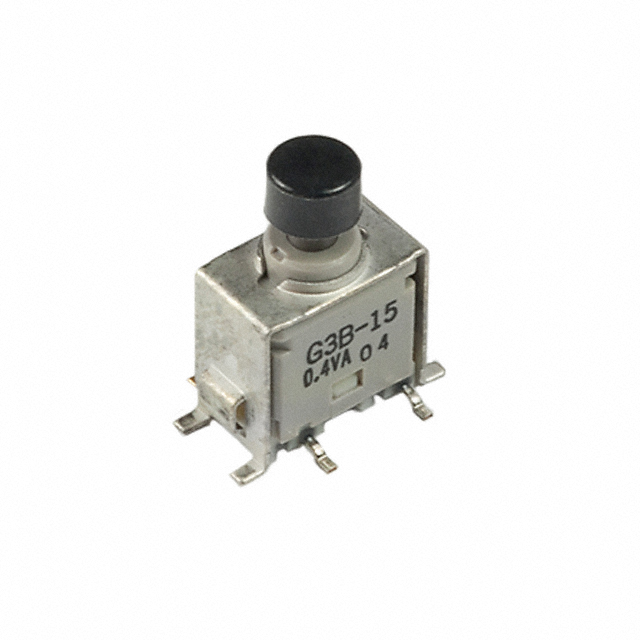

NKK Switches G3B15AB-S-XA	50000 Cycles	50000 Cycles	28 V	Surface Mount	No Marking	Button Round	28 V	SPDT	0.4 VA	On-Mom	85 °C	-30 ░C	Gull Wing	Standard	Process Sealed	Black
NKK Switches G3B15AB-S-YA	50000 Cycles	50000 Cycles	28 V	Surface Mount	No Marking	Button Round	28 V	SPDT	0.4 VA	On-Mom	85 °C	-30 ░C	Gull Wing	Standard	Process Sealed	Black

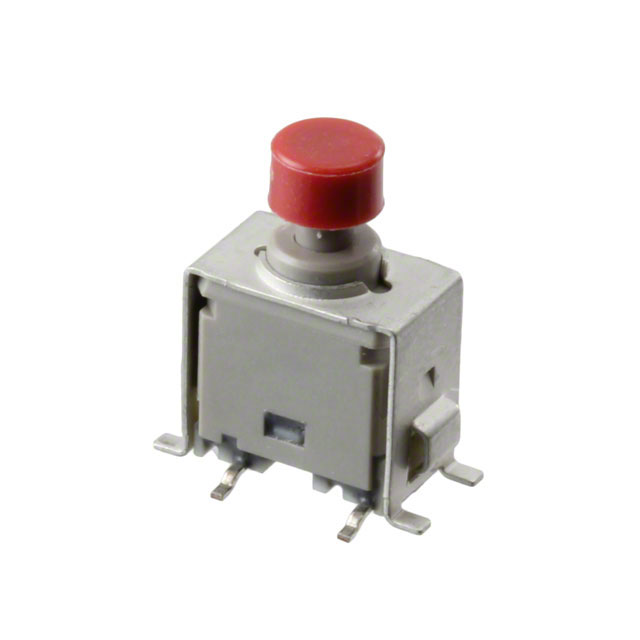

NKK Switches G3B15AB-S-YC	50000 Cycles	50000 Cycles	28 V	Surface Mount	No Marking	Button Round	28 V	SPDT	0.4 VA	On-Mom	85 °C	-30 ░C	Gull Wing	Standard	Process Sealed	Red

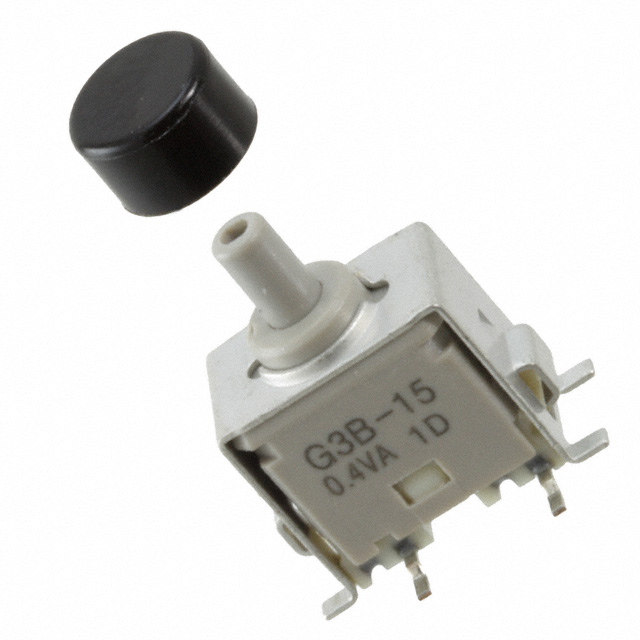

NKK Switches G3B15AB-XA	50000 Cycles	50000 Cycles	28 V	Surface Mount	No Marking	Button Round	28 V	SPDT	0.4 VA	On-Mom	85 °C	-30 ░C	Gull Wing	Standard	Process Sealed	Black
