337-068 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 68POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Rows [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Card Type | Contact Material | Number of Positions/Bay/Row | Contact Type | Number of Positions | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Color | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Card Extender | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Board Edge Straddle Mount | Solder |
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | M3 Threaded Insert Top Mount Opening | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Through Hole | Solder | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Through Hole | Wire Wrap | |

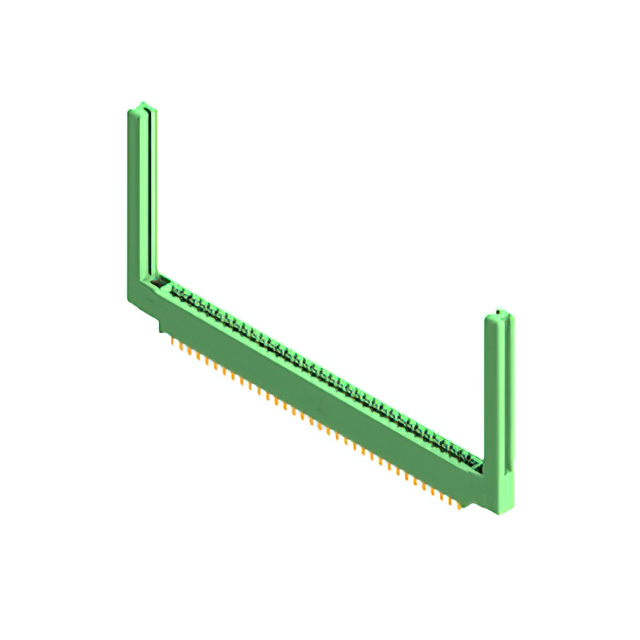

 EDAC Inc. | Polyester Thermoplastic | 2 | Card Extender Card Guides | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | 4-40 Threaded Insert Top Mount Opening | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Board Edge Straddle Mount | Solder | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Through Hole | Wire Wrap | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | M3 Threaded Insert Top Mount Opening | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Through Hole | Wire Wrap | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Card Guides | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | 4-40 Threaded Insert Top Mount Opening | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Through Hole | Solder Eyelet(s) | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Right Angle Through Hole | Wire Wrap | |
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | 0.128 " | 3.25 mm | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Right Angle Through Hole | Wire Wrap | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Card Extender Card Guides | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Non Specified - Dual Edge | Copper Alloy | 34 | Cantilever | 68 positions | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Board Edge Straddle Mount | Solder |
