S10YAR-P Series
Manufacturer: ODU
Beta
⌘K

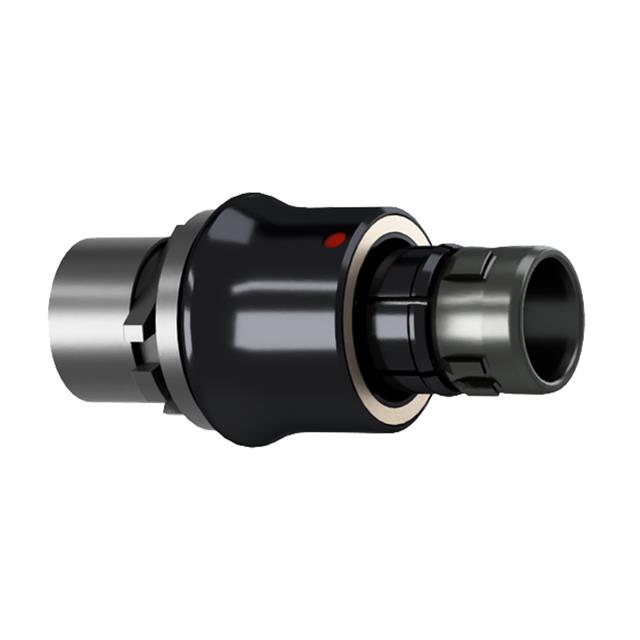

CONN PLUG MALE 9P GOLD SLDR CUP
| Part | Insert Material | Contact Material | Ingress Protection | Cable Opening | Cable Opening | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Applications | Contact Finish - Mating | Backshell Material, Plating | Shell Size - Insert [custom] | Material Flammability Rating | Orientation | Voltage Rating | Shell Material | Fastening Type | Color | Current Rating (Amps) | Connector Type | Shielding | Primary Material | Features | Mounting Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | Copper Alloy | IP68 IP69K | 0.217 in | 5.5 mm | 49.3 µin | 1.25 µm | Ruthenium over Electroless Nickel | Industrial Medical Military | Gold | Aluminum Ruthenium over Electroless Nickel | 0 | UL94 V-0 | A | 200 V | Aluminum | Push-Pull | Black Silver | 5 A | Plug Male Pins | Shielded | Metal | Backshell | Free Hanging (In-Line) | 9 | -51 °C | 125 °C | |
Polyetheretherketone (PEEK) | Copper Alloy | IP68 IP69K | 0.217 in | 5.5 mm | 49.3 µin | 1.25 µm | Ruthenium over Electroless Nickel | Industrial Medical Military | Gold | Aluminum Ruthenium over Electroless Nickel | 0 | UL94 V-0 | A | 300 VDC | Aluminum | Push-Pull | Black Silver | 5 A | Plug Male Pins | Shielded | Metal | Backshell | Free Hanging (In-Line) | 7 | -51 °C | 125 °C | |
Polyetheretherketone (PEEK) | Copper Alloy | IP68 IP69K | 0.217 in | 5.5 mm | 50 µin | 1.27 µm | Ruthenium over Electroless Nickel | Industrial Medical Military | Gold | Aluminum Ruthenium over Electroless Nickel | 0 | UL94 V-0 | A | 200 V | Aluminum | Push-Pull | Silver | 5 A | Plug Male Pins | Shielded | Metal | Backshell | Free Hanging (In-Line) | 10 | -51 °C | 125 °C | |
Polyetheretherketone (PEEK) | Copper Alloy | IP68 IP69K | 0.217 in | 5.5 mm | 50 µin | 1.27 µm | Ruthenium over Electroless Nickel | Industrial Medical Military | Gold | Aluminum Ruthenium over Electroless Nickel | 0 | UL94 V-0 | A | 300 VDC | Aluminum | Push-Pull | Silver | 7 A | Plug Male Pins | Shielded | Metal | Backshell | Free Hanging (In-Line) | 4 | -51 °C | 125 °C | |
Polyetheretherketone (PEEK) | Copper Alloy | IP68 IP69K | 0.217 in | 5.5 mm | 50 µin | 1.27 µm | Ruthenium over Electroless Nickel | Industrial Medical Military | Gold | Aluminum Ruthenium over Electroless Nickel | 0 | UL94 V-0 | A | 400 V | Aluminum | Push-Pull | Silver | 10 A | Plug Male Pins | Shielded | Metal | Backshell | Free Hanging (In-Line) | -51 °C | 125 °C |
