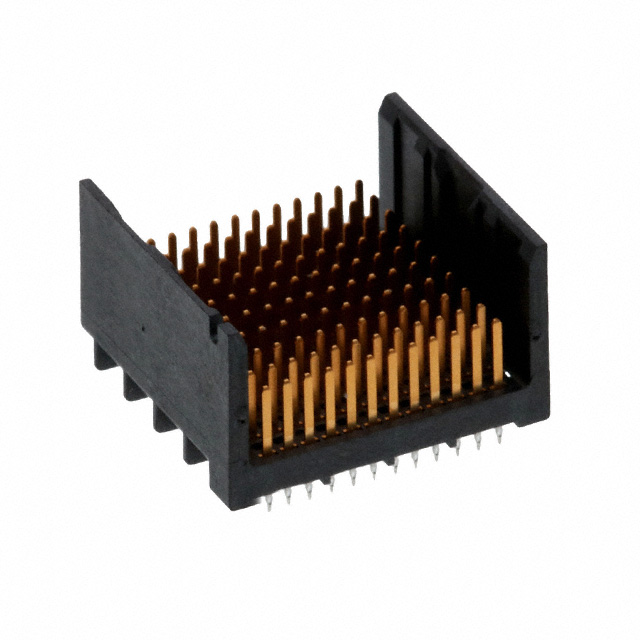

2007820 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
IMP100S,H,V4P10C,UG,OEW39,4.9
| Part | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish | Number of Rows | Connector Type | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Columns | Mounting Type | Number of Positions Loaded | Connector Style | Color | Pitch [x] | Pitch [x] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 40 | 80 | 85 °C | -55 °C | Press-Fit | Gold | 12 | Header Male Pins | UL94 V-0 | 0.76 Ám | 30 Áin | 120 | 10 | Through Hole | All | Impact | Black | 0.075 in | 1.91 mm | 30 VDC |
 TE Connectivity Raychem Cable Protection | 85 °C | -55 °C | Press-Fit | Gold | 12 | Header Male Pins | UL94 V-0 | 0.76 Ám | 30 Áin | 120 | 10 | Through Hole | All | Impact | Black | 0.075 in | 1.91 mm | 30 VAC |
