M2023SS Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Electrical Life	Actuator Material	Mounting Type	Circuit	Panel Cutout Dimensions [diameter]	Features	Illumination	Actuator Type	Voltage Rating - AC	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Switch Function	Bushing Thread	Current Rating (Amps)	Bushing Thread
NKK Switches M2023SS1W01-BG	25000 Steps	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	Blue Cap	Non-Illuminated	Standard Round with Cap	125 V	Solder Lug	30 V	85 °C	-30 ░C	13.5 mm	On-Off-On	1/4-40	3 A 6 A
NKK Switches M2023SS1W01-CB	25000 Steps	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	White Cap	Non-Illuminated	Standard Round with Cap	125 V	Solder Lug	30 V	85 °C	-30 ░C	13.1 mm	On-Off-On	1/4-40	3 A 6 A
NKK Switches M2023SS1W03-BG	25000 Steps	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	Blue Cap	Non-Illuminated	Standard Round with Cap	125 V	PC Pin	30 V	85 °C	-30 ░C	13.5 mm	On-Off-On	1/4-40	3 A 6 A

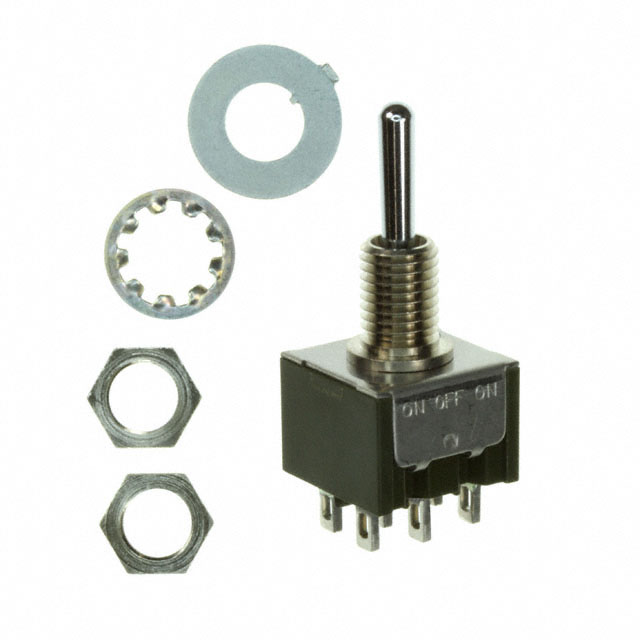

NKK Switches M2023SS4W01	25000 Steps	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	125 V	Solder Lug	30 V	85 °C	-30 ░C		On-Off-On	M6	3 A 6 A	0.75

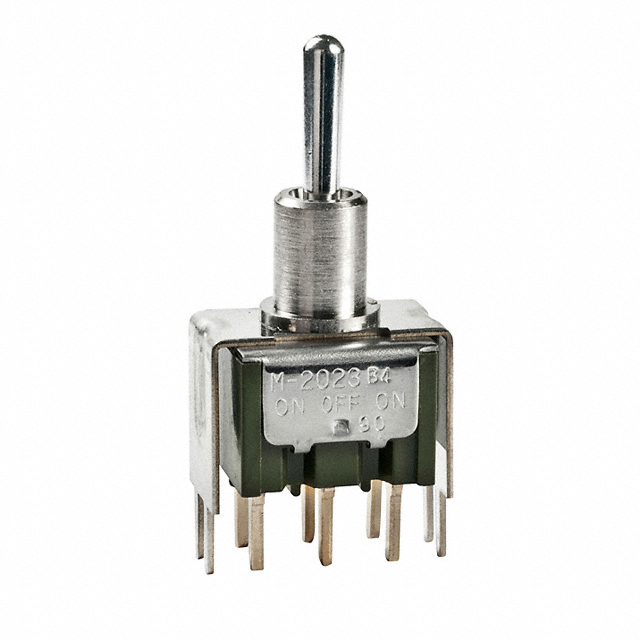

NKK Switches M2023SS2G13	50000 Cycles	Brass Chrome Plated	Through Hole	DPDT	6.5 mm	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	28 V	PC Pin	28 V	85 °C	-30 ░C		On-Off-On	Unthreaded	0.4 VA

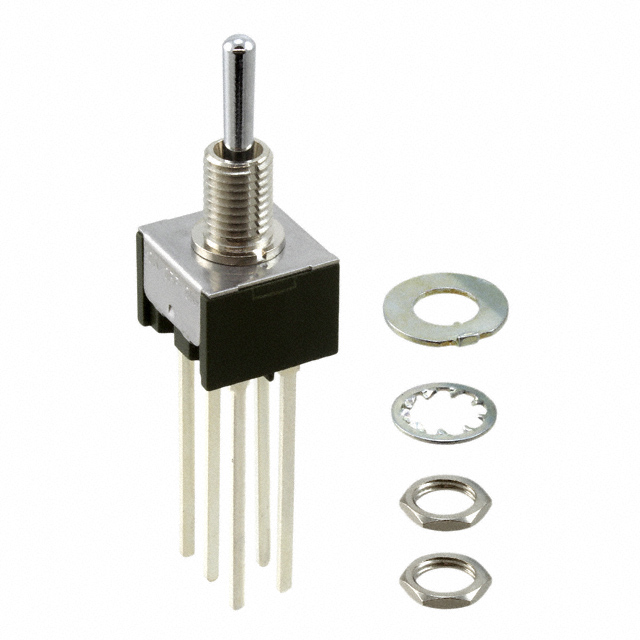

NKK Switches M2023SS4W07	25000 Steps	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	125 V	Wire Wrap	30 V	85 °C	-30 ░C		On-Off-On	M6	3 A 6 A	0.75

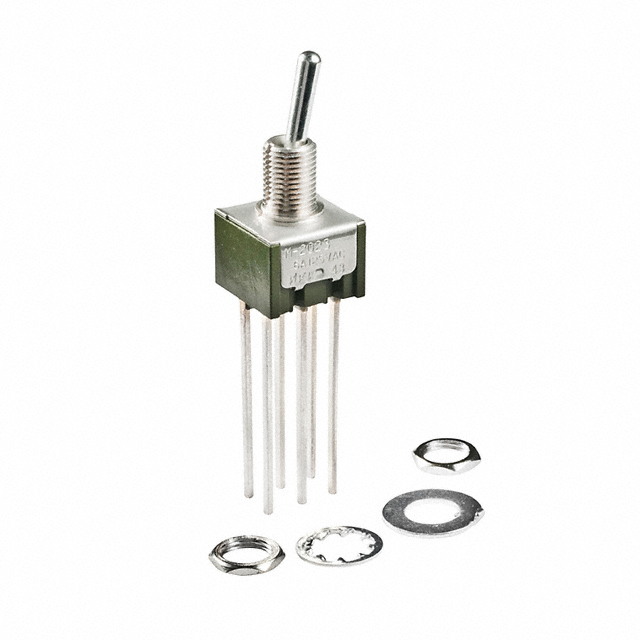

NKK Switches M2023SS1W08	25000 Steps	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	125 V	Wire Wrap	30 V	85 °C	-30 ░C		On-Off-On	1/4-40	3 A 6 A

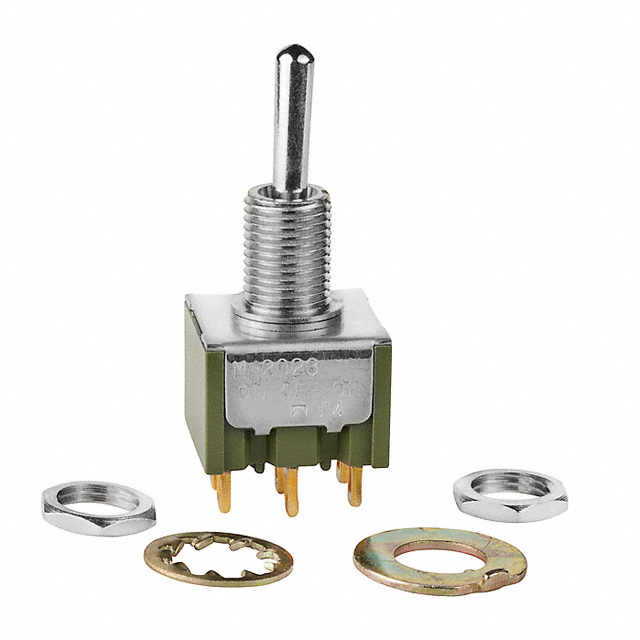

NKK Switches M2023SS1G01	50000 Cycles	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	28 V	Solder Lug	28 V	85 °C	-30 ░C		On-Off-On	1/4-40	0.4 VA
NKK Switches M2023SS1W01	25000 Steps	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	125 V	Solder Lug	30 V	85 °C	-30 ░C		On-Off-On	1/4-40	3 A 6 A

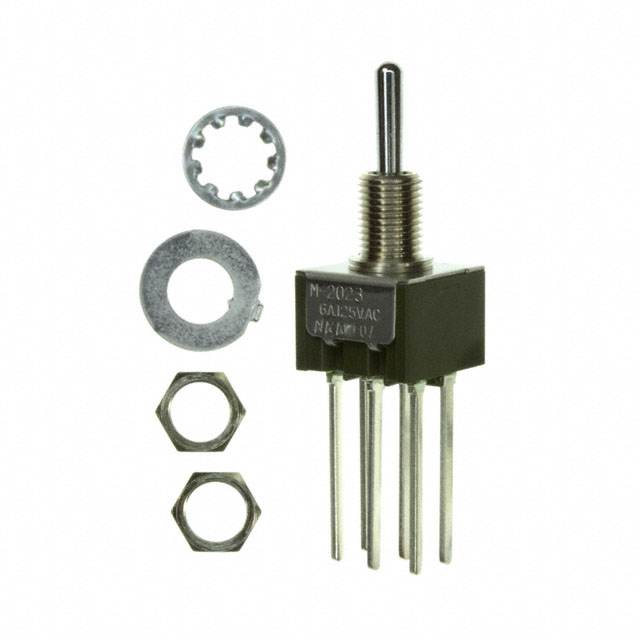

NKK Switches M2023SS1W06	25000 Steps	Brass Chrome Plated	Panel Mount	DPDT	6.5 mm	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	125 V	Wire Wrap	30 V	85 °C	-30 ░C		On-Off-On	1/4-40	3 A 6 A
