R16105 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
N / STRAIGHT PLUG CLAMP TYPE CAB
| Part | Body Finish | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Voltage Rating | Body Material | Insertion Loss | Housing Color | Contact Termination | Impedance | Ingress Protection | Connector Style | Number of Ports | Fastening Type | Frequency - Max [Max] | Mounting Type | Center Contact Material | Shield Termination | Connector Type | Cable Group | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

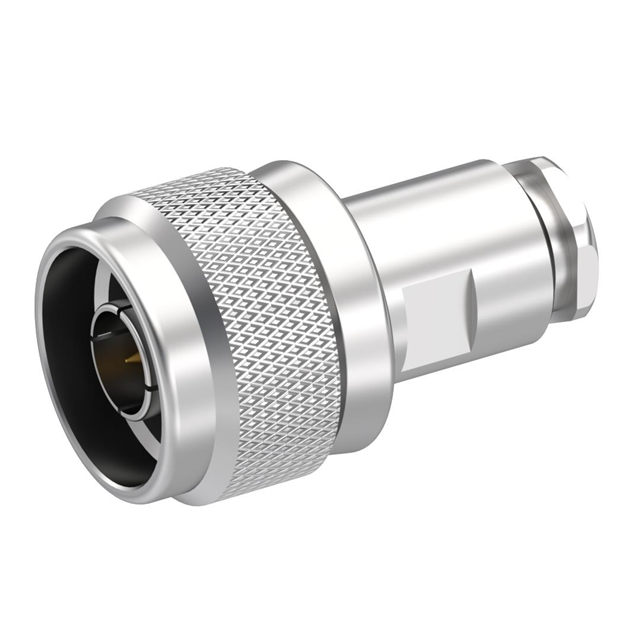

 Radiall USA, Inc. | White Bronze | Gold | Polytetrafluoroethylene (PTFE) | -55 C | 105 ░C | 500 | 335 V | Brass | 0.15 dB | Silver | Solder | 50 Ohms | IP67 - Dust Tight Waterproof | N Type | 1 | Threaded | 11 GHz | Free Hanging (In-Line) | Brass | Clamp | Plug Male Pin | ||
 Radiall USA, Inc. | |||||||||||||||||||||||

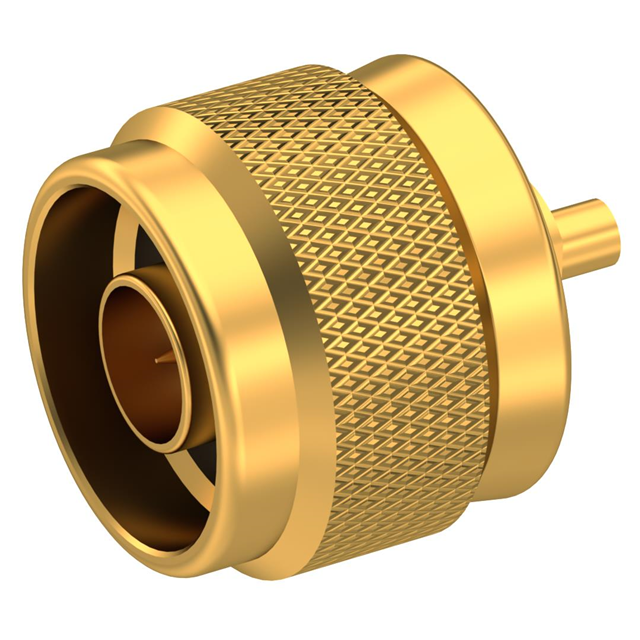

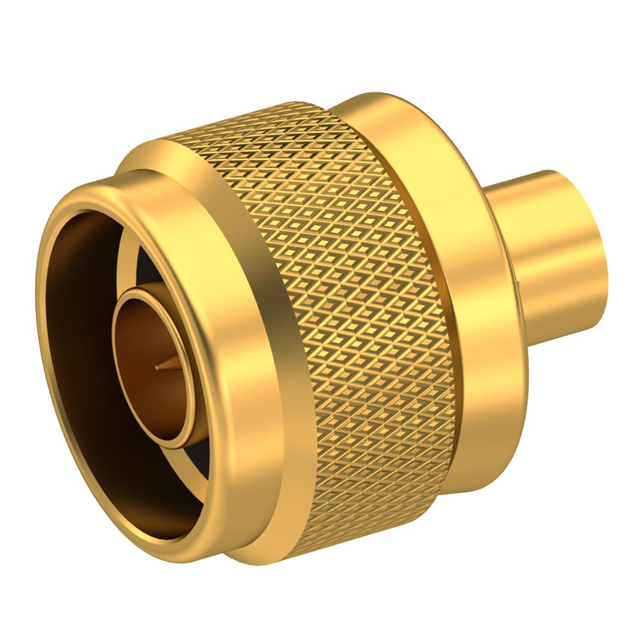

 Radiall USA, Inc. | Gold | Gold | Polytetrafluoroethylene (PTFE) | -55 C | 105 ░C | 500 | 1400 V | Brass | 0.15 dB | Gold | Solder | 50 Ohms | N Type | 1 | Threaded | 11 GHz | Free Hanging (In-Line) | Brass | Solder | Plug Male Pin | RG-401 (.250" Semi Rigid) | ||

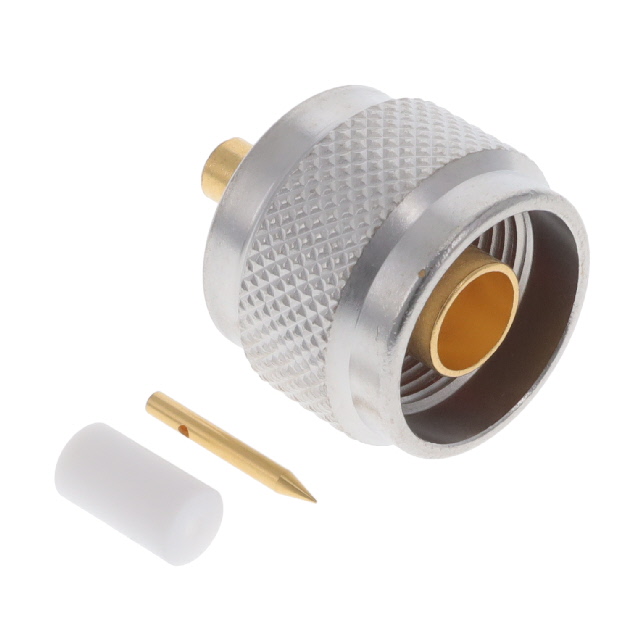

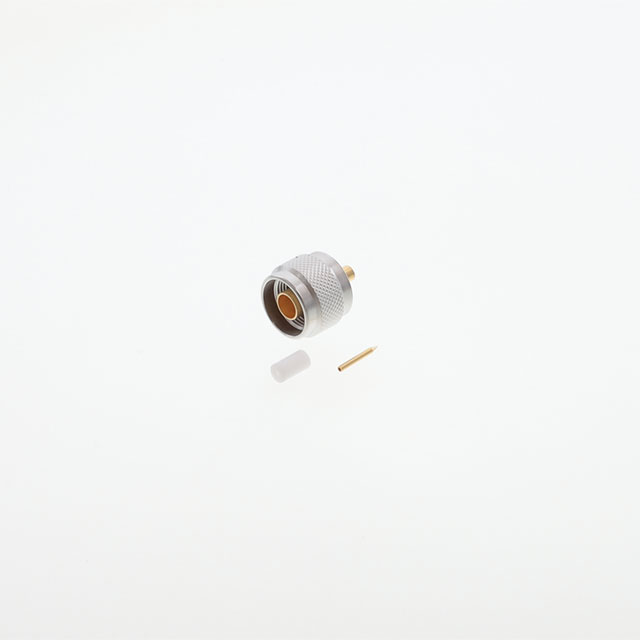

 Radiall USA, Inc. | Gold | Gold | Polytetrafluoroethylene (PTFE) | -55 C | 105 ░C | 500 | 335 V | Brass | Gold | Solder | 50 Ohms | N Type | 1 | Threaded | 11 GHz | Free Hanging (In-Line) | Brass | Solder | Plug Male Pin | 1 Connector 1 Contact 1 Insulator | |||
 Radiall USA, Inc. | Gold | Gold | Polytetrafluoroethylene (PTFE) | -55 C | 105 ░C | 500 | 335 V | Brass | 0.15 dB | Gold | Solder | 50 Ohms | N Type | 1 | Threaded | 11 GHz | Free Hanging (In-Line) | Brass | Solder | Plug Male Pin | RG-405 (.085" Semi Rigid) | ||
 Radiall USA, Inc. | Gold | Gold | Polytetrafluoroethylene (PTFE) | -55 C | 105 ░C | 500 | 1400 V | Brass | 0.15 dB | Gold | Solder | 50 Ohms | N Type | 1 | Threaded | 11 GHz | Free Hanging (In-Line) | Brass | Solder | Plug Male Pin |
