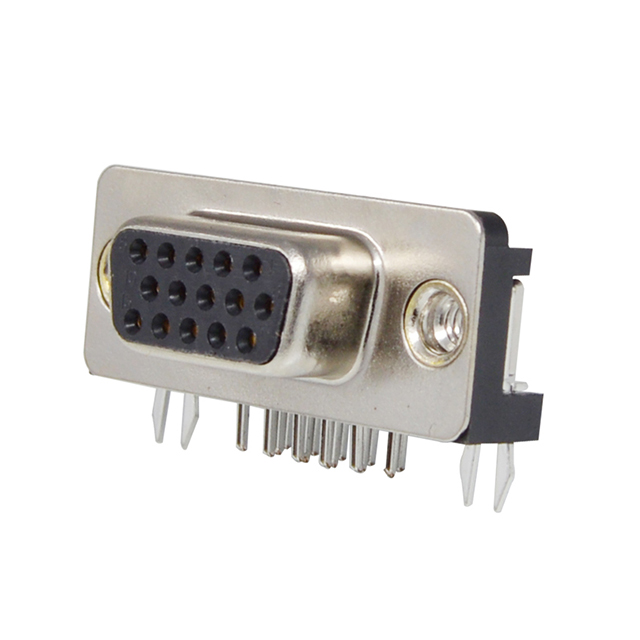

K61X-E15 Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN D-SUB HD RCPT 15P R/A SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Dielectric Material | Connector Style | Number of Positions | Shell Material, Finish | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Features | Contact Type | Material Flammability Rating | Contact Finish | Flange Feature | Flange Feature | Mounting Type | Number of Rows [custom] | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Phosphor Bronze | -55 C | 105 ░C | Black | 30 VDC | Polybutylene Terephthalate (PBT) | D-Sub High Density | 15 | Nickel Plated Steel | Receptacle Female Sockets | (DE E) High Density | 1 | 2 A | Board Lock | Signal | UL94 V-0 | Gold | Housing/Shell | 4-40 | Right Angle Through Hole | 3 | Solder | 30 Áin | 0.76 Ám |
 Kycon, Inc. | Phosphor Bronze | -55 C | 105 ░C | Blue | 30 VDC | Polybutylene Terephthalate (PBT) | D-Sub High Density | 15 | Nickel Plated Steel | Receptacle Female Sockets | (DE E) High Density | 1 | 2 A | Board Lock | Signal | UL94 V-0 | Gold | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | 3 | Solder | 30 Áin | 0.76 Ám |
