683M Series
Manufacturer: NorComp Inc.
Beta
⌘K
D-SUB MIXED CONTACT CONNECTORS COAX COMBO D VERT PCB 5W5/F/50O/VT
| Part | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mounting Type | Number of Positions | Connector Type | Flange Feature | Termination | Connector Style | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Material, Finish | Material Flammability Rating | Contact Finish | Contact Type | Contact Finish Thickness | Number of Rows | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Number of Positions [custom] | Number of Positions [custom] | Number of Rows [custom] | Number of Positions [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

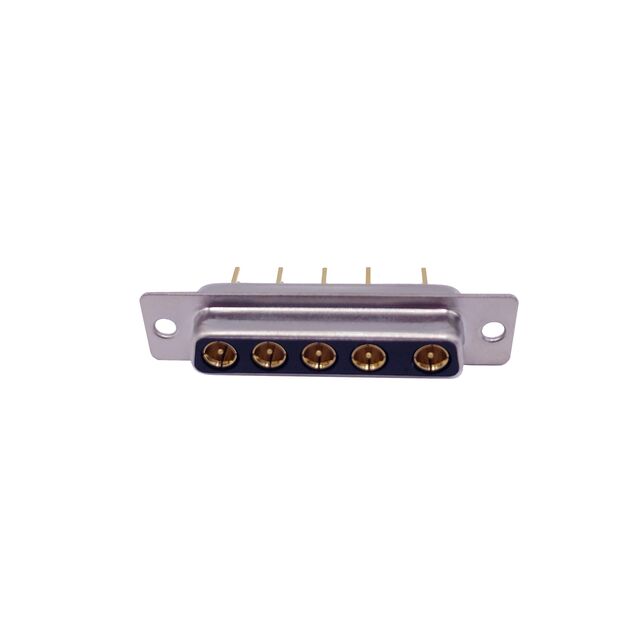

 NorComp Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | 5 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Solder | Combo D-Sub | 3 | DB B | 5W5 | Nickel Plated Steel | UL94 V-0 | Gold | Coax | Flash | 1 | ||||||||
 NorComp Inc. | Panel Mount Through Hole | Plug Male Pins | Board Side (4-40) | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Gold | Coax Signal | Flash | A DA | 2 | 7W2 | Board Lock Grounding Indents | 5 | 2 | 2 | |||||||||||
NorComp Inc. | Panel Mount Through Hole | Plug Male Pins | Board Side (4-40) | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Gold | Coax Signal | Flash | A DA | 2 | 7W2 | Grounding Indents | 5 | 2 | 2 | |||||||||||
NorComp Inc. | Panel Mount Through Hole | Plug Male Pins | Board Side (4-40) | Solder | Combo D-Sub | 3 | DB B - 9W4 | Nickel Plated Steel | UL94 V-0 | Gold | Coax Signal | Flash | Board Lock Grounding Indents | 5 | 4 | 2 | 9 | |||||||||||
NorComp Inc. | Panel Mount Through Hole | 5 | Plug Male Pins | Board Side (4-40) | Solder | Combo D-Sub | 3 | DB B | 5W5 | Nickel Plated Steel | UL94 V-0 | Gold | Coax | Flash | 1 | Board Lock Grounding Indents | ||||||||||||
NorComp Inc. | Panel Mount Through Hole | 3 | Plug Male Pins | Board Side (4-40) | Solder | Combo D-Sub | 2 (DA A) - 3W3 | Nickel Plated Steel | UL94 V-0 | Gold | Coax | Flash | 1 | Grounding Indents | ||||||||||||||

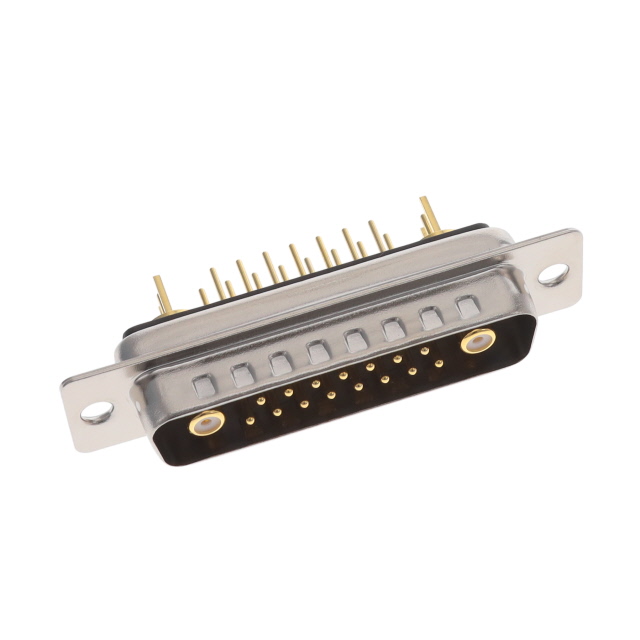

 NorComp Inc. | Black | Brass | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | 17 | Plug Male Pins | Housing/Shell (Unthreaded) | Solder | Combo D-Sub | B DB | 17W2 | Nickel Plated Steel | UL94 V-0 | Gold | Coax Signal | Flash | 3 | Grounding Indents | 15 Positions | 2 | 2 |
