EN3L2F Series

Catalog

CONN CIRCULAR SKT 2 POS SOLDER ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Part	Orientation	Fastening Type	Material Flammability Rating	Connector Type	Number of Positions	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Contact Material	Color	Applications	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Backshell Material, Plating	Ingress Protection	Mounting Type	Features	Insert Material	Termination

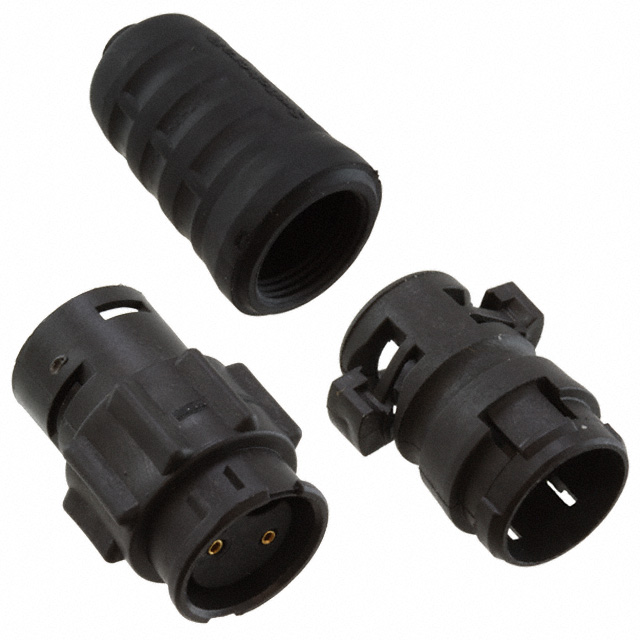

Switchcraft Inc. EN3L2FX	Keyed	Bayonet Lock	UL94 V-0	Receptacle Female Sockets	2	250 VAC	4.06 mm 6.73 mm	0.16 in 0.265 in	65 °C	-40 °C	Unshielded	Copper Alloy	Black	General Purpose Instrumentation Marine Medical	Gold	Plastic	7.5 A	Thermoplastic	IP66/IP68	Free Hanging (In-Line)	Backshell Cable Clamp	Elastomer
Switchcraft Inc. EN3L2FCKX	Keyed	Bayonet Lock	UL94 V-0	Receptacle Female Sockets	2	250 VAC	4.06 mm 6.73 mm	0.16 in 0.265 in	65 °C	-40 °C	Unshielded	Copper Alloy	Black	General Purpose Instrumentation Marine Medical	Gold	Plastic	7.5 A	Thermoplastic	IP66/IP68	Free Hanging (In-Line)	Backshell Cable Clamp	Elastomer	Crimp
Switchcraft Inc. EN3L2F16KX	Keyed	Bayonet Lock	UL94 V-0	Receptacle Female Sockets	2	250 VAC	4.06 mm 6.73 mm	0.16 in 0.265 in	65 °C	-40 °C	Unshielded	Copper Alloy	Black	General Purpose Instrumentation Marine Medical	Gold	Plastic	13 A	Thermoplastic	IP66/IP68	Free Hanging (In-Line)	Backshell Cable Clamp	Elastomer
Switchcraft Inc. EN3L2FCX	Keyed	Bayonet Lock	UL94 V-0	Receptacle Female Sockets	2	250 VAC	4.06 mm 6.73 mm	0.16 in 0.265 in	65 °C	-40 °C	Unshielded	Copper Alloy	Black	General Purpose Instrumentation Marine Medical	Gold	Plastic	7.5 A	Thermoplastic	IP66/IP68	Free Hanging (In-Line)	Backshell Cable Clamp	Elastomer	Crimp
