89-01 Series
Manufacturer: TE Connectivity Measurement Specialties
Beta
⌘K

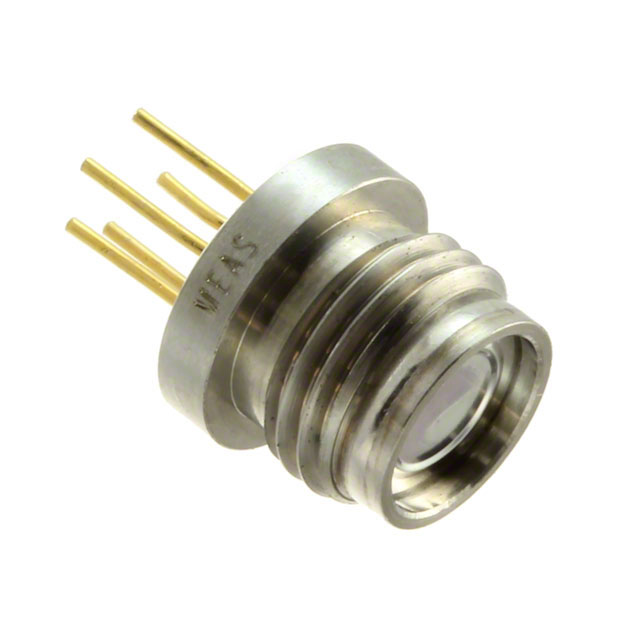

SENSOR 1000PSIA .208V
| Part | Accuracy | Operating Pressure | Operating Pressure | Maximum Pressure [Max] | Maximum Pressure [Max] | Voltage - Supply | Output Type | Port Style | Operating Temperature [Max] | Operating Temperature [Min] | Output [Max] | Output [Min] | Package / Case | Applications | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Measurement Specialties | 0.25 % | 1000 PSI | 6894.76 kPa | 20684.27 kPa | 3000 PSI | 9.5 V | Wheatstone Bridge | No Port | 125 °C | -40 °C | 208 mV | 0 mV | Cylinder | Board Mount | PC Pin |
