CFS-0300 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Termination Style	Length [x]	Length	Electrical Life	Actuator Level	Body Material	Circuit	Mounting Type	Voltage Rating	Actuator Type	Height Above Board	Height Above Board	Contact Finish	Features	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material
Nidec Components Corporation CFS-0300TA	J Lead	0.356 in	9.04 mm	1000 Cycles	Flush Recessed	Polyphenylene Sulfide (PPS)	SPST	Surface Mount	6 VDC	Slide (Standard)	0.154 in	3.9 mm	Gold	Tape Seal	0.1 in	Full	2.54 mm	100 mA	85 °C	-40 °C	Copper Alloy

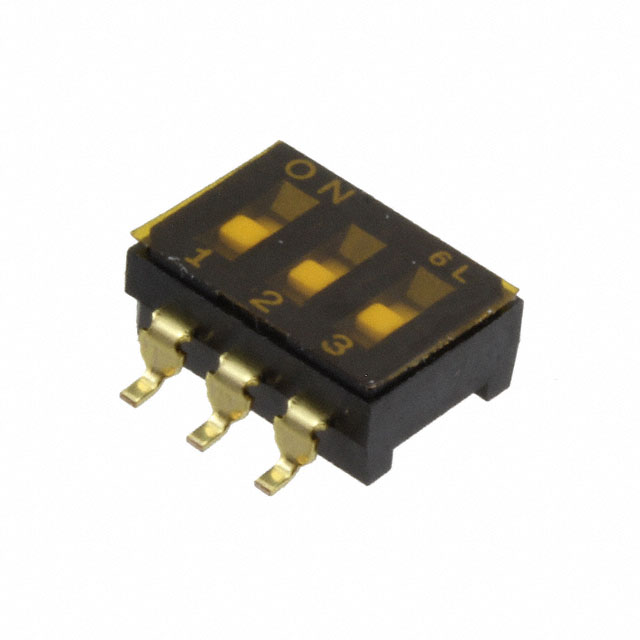

Nidec Components Corporation CFS-0300MB	Gull Wing	0.356 in	9.04 mm	1000 Cycles	Flush Recessed	Polyphenylene Sulfide (PPS)	SPST	Surface Mount	6 VDC	Slide (Standard)	0.146 in	3.7 mm	Gold	Tape Seal	0.1 in	Full	2.54 mm	100 mA	85 °C	-40 °C	Copper Alloy
Nidec Components Corporation CFS-0300TB	Gull Wing	0.356 in	9.04 mm	1000 Cycles	Flush Recessed	Polyphenylene Sulfide (PPS)	SPST	Surface Mount	6 VDC	Slide (Standard)	0.146 in	3.7 mm	Gold	Tape Seal	0.1 in	Full	2.54 mm	100 mA	85 °C	-40 °C	Copper Alloy

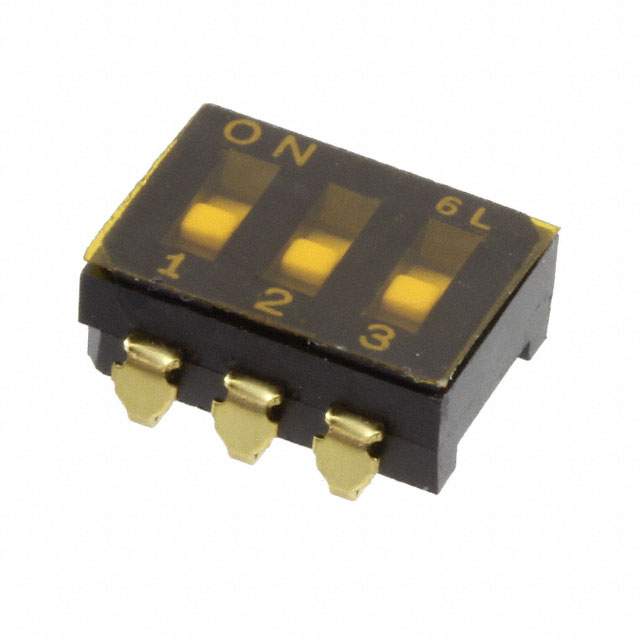

Nidec Components Corporation CFS-0300MA	J Lead	0.356 in	9.04 mm	1000 Cycles	Flush Recessed	Polyphenylene Sulfide (PPS)	SPST	Surface Mount	6 VDC	Slide (Standard)	0.154 in	3.9 mm	Gold	Tape Seal	0.1 in	Full	2.54 mm	100 mA	85 °C	-40 °C	Copper Alloy
