CORD 6.56' BLACK
| Part | Color | Length | Number of Positions | Connector Type | Features | Orientation | Material Flammability Rating | Fastening Type | Shell Material | Shielding | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Primary Material | Shell Size - Insert | Contact Finish - Mating | Mounting Type | Termination | Voltage Rating | Contact Rating (Current) | Actuator Height off PCB (Vertical) | Switch Function | Operating Force | Termination Style | Actuator Type | Illumination | Outline Width | Outline Length | Circuit | Actuator Orientation | Ingress Protection | Mechanical Life (Cycles) | Switch Travel | 2nd Connector | Approved Countries | 1st Connector | Number of Conductors | Cord Type | Style | Wire Gauge | Approval Agency Marking | Cable Type | Connector Inner Diameter (1) | Connector Outer Diameter (1) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

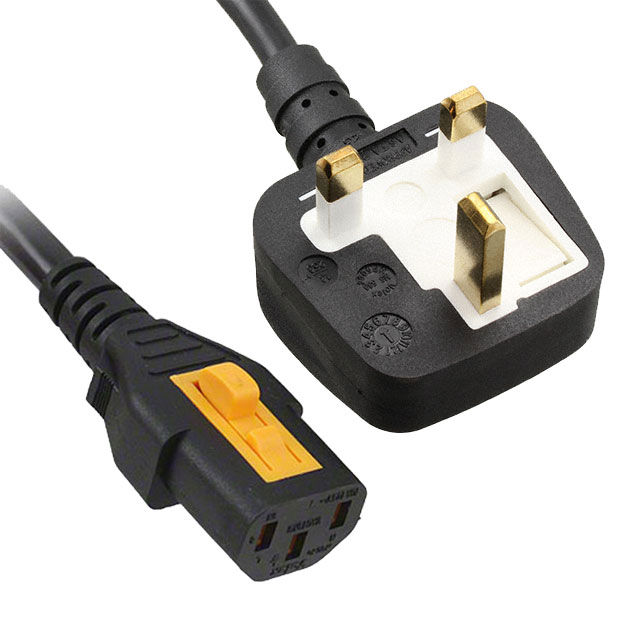

 SCHURTER Inc. | Black | 6.56 ft | ||||||||||||||||||||||||||||||||||||||||||

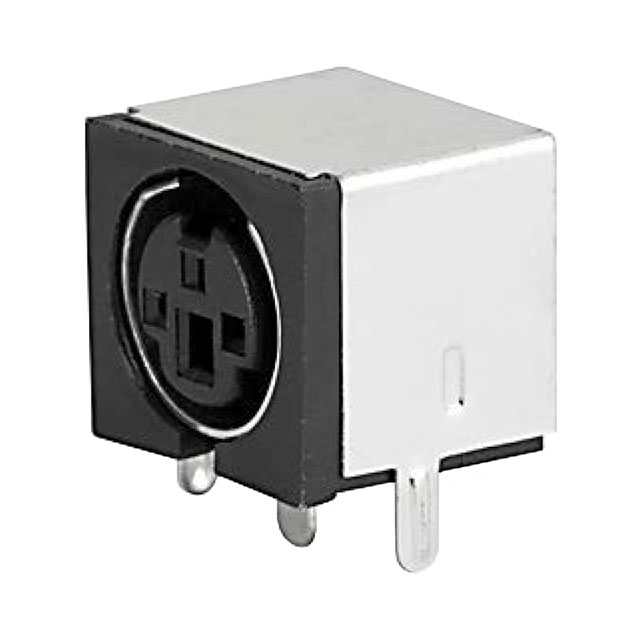

 SCHURTER Inc. | Black | 3 | Female Sockets Receptacle | Board Lock Ground | Keyed | UL94 V-0 | Push-Pull | Thermoplastic | Shielded | 2 A | 70 °C | -20 °C | Plastic | Mini DIN | Silver | Right Angle Through Hole | Solder | 12 V | ||||||||||||||||||||||||||

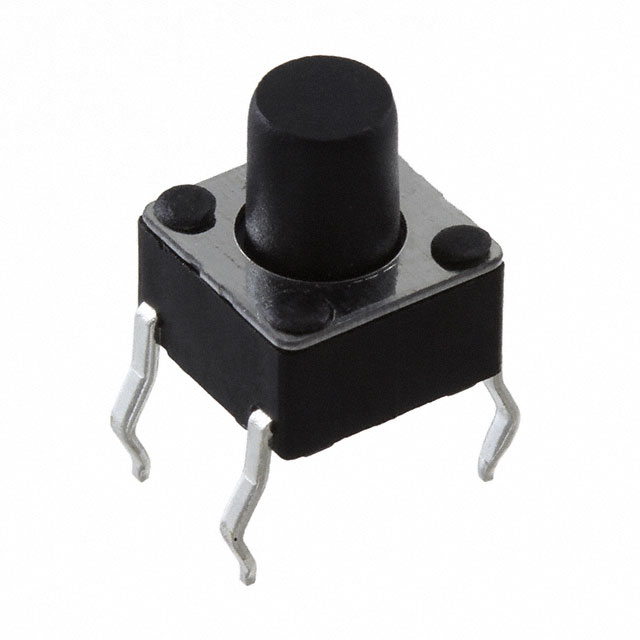

 SCHURTER Inc. | Tactile Feedback | 70 °C | -20 °C | Through Hole | 0.05 A | 7.3 mm | Off-Mom | 160 gf | PC Pin | Standard | Non-Illuminated | 6 mm | 6 mm | SPST-NO | Top Actuated | IP40 | 100000 Cycles | 0.25 mm | ||||||||||||||||||||||||||

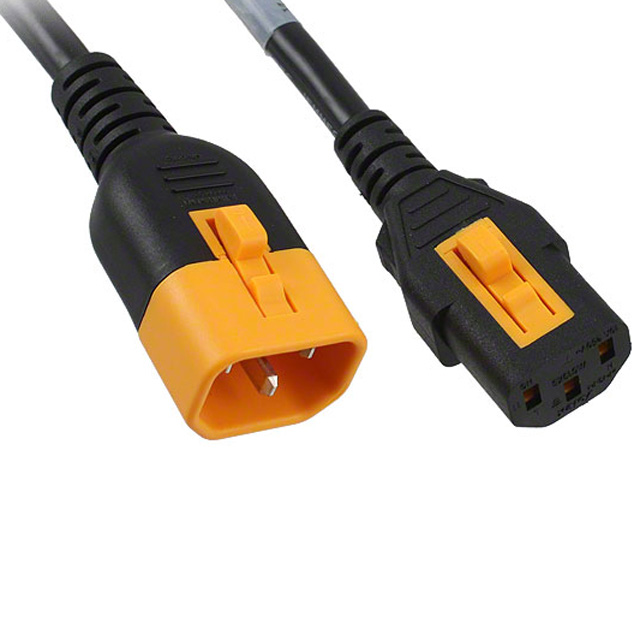

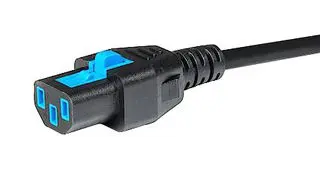

 SCHURTER Inc. | Black | 6.56 ft | V-Lock | Unshielded | 10 A | 70 °C | -25 °C | 250 V | IEC 320-C13 | Canada China Germany United States | IEC 320-C14 | 3 | H05VV-F3G1.0 SVT | Female Sockets (Slots) Male Pins (Blades) | 18 AWG | CCC CSA UL VDE | ||||||||||||||||||||||||||||

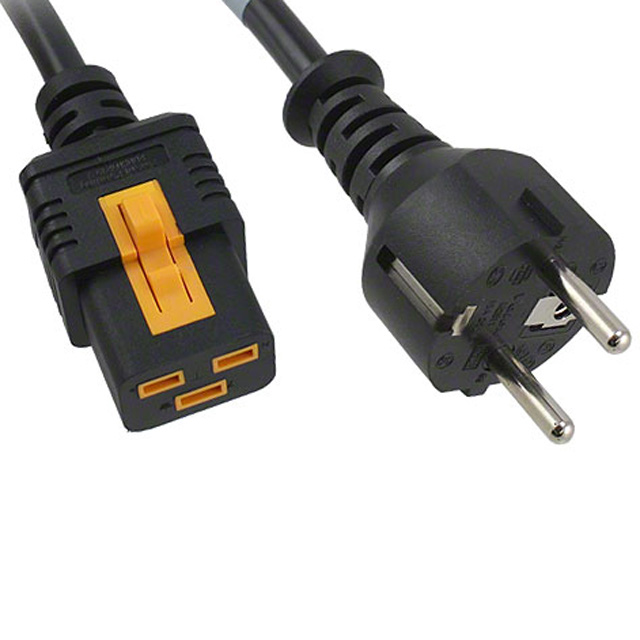

 SCHURTER Inc. | Black | 6.56 ft | V-Lock | Unshielded | 16 A | 70 °C | -25 °C | 250 V | IEC 320-C19 | Germany | CEE 7/7 | 3 | H05VV-F3G1.5 | Female Sockets (Slots) Male Pins (Blades) | 16 AWG | VDE | ||||||||||||||||||||||||||||

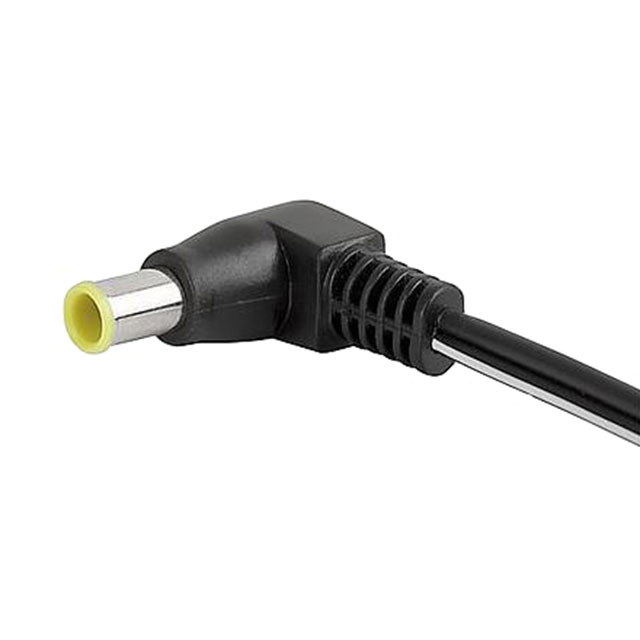

 SCHURTER Inc. | 5.9 ft | Unshielded | Plug Right Angle to Wire Leads | Round | 4.3 mm | 6.5 mm | ||||||||||||||||||||||||||||||||||||||
 SCHURTER Inc. | Black | 9.84 ft | Unshielded | 10 A | 70 °C | -25 °C | 125 V | IEC 320-C13 | NEMA 5-15P | 3 | SJT | Female Sockets (Slots) Male Pins (Blades) | ||||||||||||||||||||||||||||||||
 SCHURTER Inc. | Black | 8.2 ft | 15 A | 60 °C | -40 °C | 125 V | IEC 320-C19 | Canada United States | NEMA 5-15P | 3 | SJT | Female Sockets (Slots) Male Pins (Blades) | 14 AWG | CSA UL | ||||||||||||||||||||||||||||||
 SCHURTER Inc. | Black | 6 | Female Sockets Receptacle | Backshell Strain Relief | Keyed | Push-Pull | 2 A | 70 °C | -20 °C | Mini DIN | Silver | Free Hanging (In-Line) | Solder Cup | 12 V | ||||||||||||||||||||||||||||||

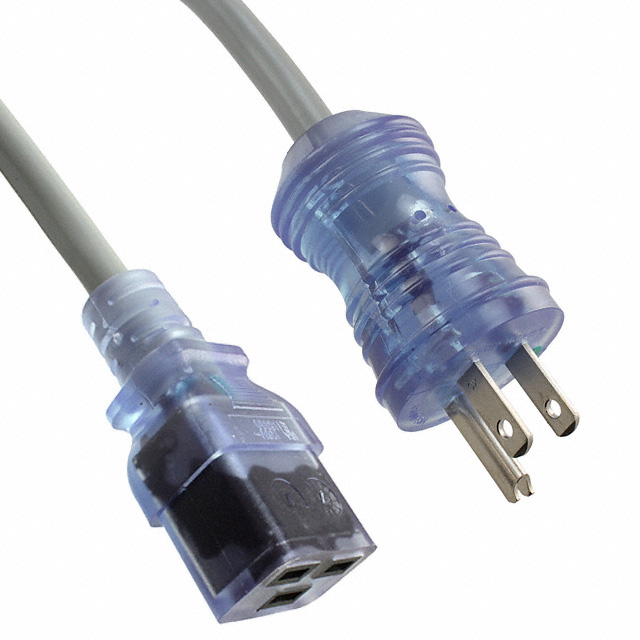

 SCHURTER Inc. | Gray | 10 ft | Hospital Grade Outdoor Use | 15 A | 85 °C | -40 °C | 125 V | IEC 320-C19 | Canada United States | NEMA 5-15P | 3 | SJTW | Female Sockets (Slots) Male Pins (Blades) | 14 AWG | CSA UL |
