9086-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

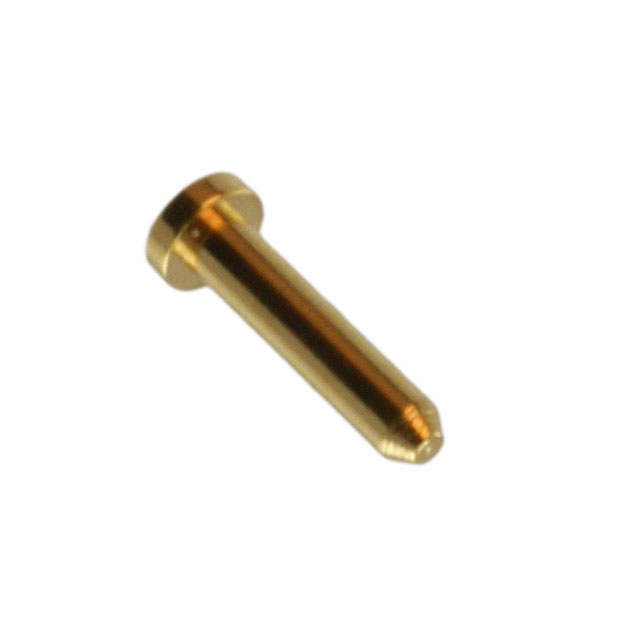

CONN PC PIN CIRC 0.036DIA GOLD
| Part | Insulation | Length - Overall [x] | Length - Overall | Terminal Style | Contact Material | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | 0.175 in | 4.45 mm | Nail Head Single End | Brass Alloy | Solder | 1.02 mm | 0.04 in | Through Hole | 0.06 in | 1.52 mm | PC Pin | 0.16 in | 4.06 mm | Gold | 0.25 Ám | 10 Áin |
