AMI-26 Series

Catalog

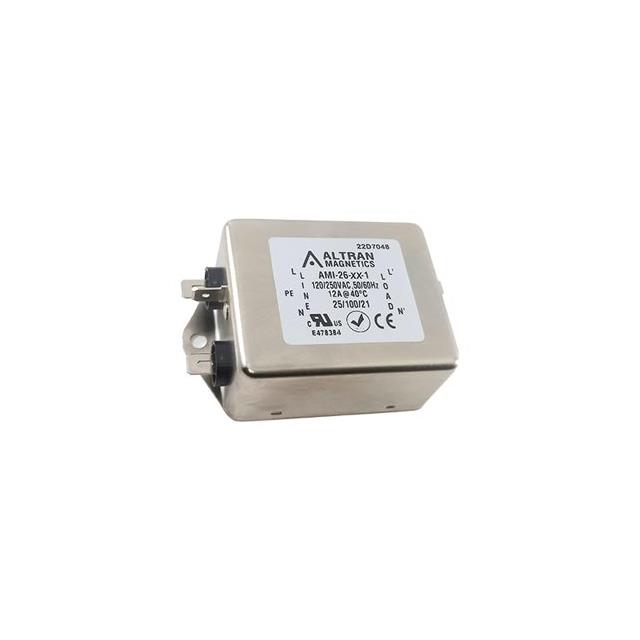

LINE FILTER 250VAC 12A CHASSIS

Part	Frequency - Operating	Applications	Approval Agency	Current	Inductance	Filter Type	Mounting Type	Configuration	Voltage - Rated AC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
Altran Magnetics, LLC AMI-26-12-3	DC ~ 400Hz	General Purpose	CE cURus	12 A	1.16 mH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C	Quick Connect
Altran Magnetics, LLC AMI-26-10-3	DC ~ 400Hz	General Purpose	CE cURus	10 A	1.6 mH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C	Quick Connect
Altran Magnetics, LLC AMI-26B-20-3	DC ~ 400Hz	Medical	CE cURus	20 A	1200 µH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C
Altran Magnetics, LLC AMI-26-16-1	DC ~ 400Hz	General Purpose	CE cURus	16 A	1.3 mH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C	Quick Connect
Altran Magnetics, LLC AMI-26B-20-1	DC ~ 400Hz	Medical	CE cURus	20 A	1200 µH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C
Altran Magnetics, LLC AMI-26-20-3	DC ~ 400Hz	General Purpose	CE cURus	20 A	1200 µH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C
Altran Magnetics, LLC AMI-26B-12-3	DC ~ 400Hz	Medical	CE cURus	12 A	1.16 mH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C	Quick Connect
Altran Magnetics, LLC AMI-26B-30-6	DC ~ 400Hz	Medical	CE cURus	30 A	1200 µH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C	Threaded Post (M4)
Altran Magnetics, LLC AMI-26-20-1	DC ~ 400Hz	General Purpose	CE cURus	20 A	1200 µH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C
Altran Magnetics, LLC AMI-26-16-3	DC ~ 400Hz	General Purpose	CE cURus	16 A	1.3 mH	Single Phase	Chassis Mount	Two Stage	250 V	100 °C	-25 °C	Quick Connect
