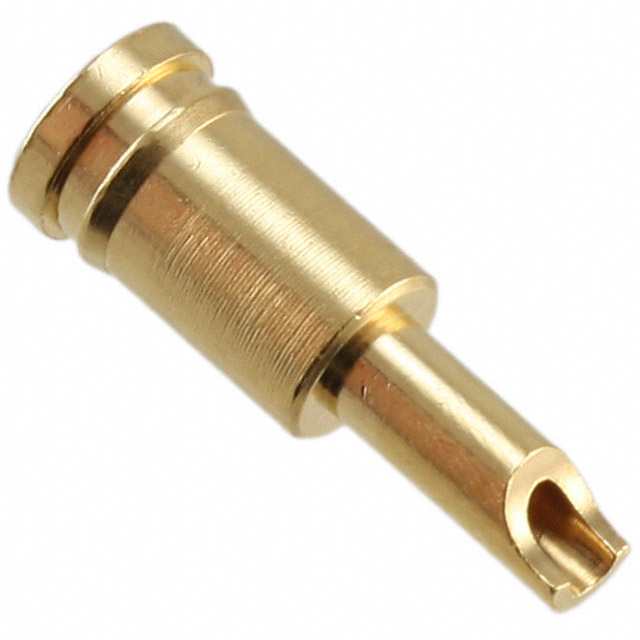

0616-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .065-.082 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Mounting Hole Diameter	Mounting Hole Diameter	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Length - Overall	Length - Overall	Contact Finish
Mill-Max Manufacturing Corp. 0616-0-18-15-07-27-10-0	-55 C	125 °C	0.22 in	5.59 mm	0.144 "	3.66 mm	2.72 mm	0.107 in	30 Áin	0.76 Ám	Solder Cup	2.08 mm	0.082 "	0.065 "	1.65 mm	Beryllium Copper	0.157 in	3.99 mm	Press-Fit	0.455 in	11.56 mm	Gold
Mill-Max Manufacturing Corp. 0616-0-18-80-07-80-10-0	-55 C	125 °C	0.22 in	5.59 mm	0.144 "	3.66 mm	2.72 mm	0.107 in	200 Áin	5.08 Ám	Solder Cup	2.08 mm	0.082 "	0.065 "	1.65 mm	Beryllium Copper	0.157 in	3.99 mm	Press-Fit	0.455 in	11.56 mm	Tin
Mill-Max Manufacturing Corp. 0616-0-18-01-07-01-10-0	-55 C	125 °C	0.22 in	5.59 mm	0.144 "	3.66 mm	2.72 mm	0.107 in	200 Áin	5.08 Ám	Solder Cup	2.08 mm	0.082 "	0.065 "	1.65 mm	Beryllium Copper	0.157 in	3.99 mm	Press-Fit	0.455 in	11.56 mm	Tin-Lead
Mill-Max Manufacturing Corp. 0616-0-18-80-07-27-10-0	-55 C	125 °C	0.22 in	5.59 mm	0.144 "	3.66 mm	2.72 mm	0.107 in	30 Áin	0.76 Ám	Solder Cup	2.08 mm	0.082 "	0.065 "	1.65 mm	Beryllium Copper	0.157 in	3.99 mm	Press-Fit	0.455 in	11.56 mm	Gold
Mill-Max Manufacturing Corp. 0616-0-18-01-07-27-10-0	-55 C	125 °C	0.22 in	5.59 mm	0.144 "	3.66 mm	2.72 mm	0.107 in	30 Áin	0.76 Ám	Solder Cup	2.08 mm	0.082 "	0.065 "	1.65 mm	Beryllium Copper	0.157 in	3.99 mm	Press-Fit	0.455 in	11.56 mm	Gold
Mill-Max Manufacturing Corp. 0616-0-18-15-07-14-10-0	-55 C	125 °C	0.22 in	5.59 mm	0.144 "	3.66 mm	2.72 mm	0.107 in	10 Áin	0.25 Ám	Solder Cup	2.08 mm	0.082 "	0.065 "	1.65 mm	Beryllium Copper	0.157 in	3.99 mm	Press-Fit	0.455 in	11.56 mm	Gold
Mill-Max Manufacturing Corp. 0616-0-18-01-07-14-10-0	-55 C	125 °C	0.22 in	5.59 mm	0.144 "	3.66 mm	2.72 mm	0.107 in	10 Áin	0.25 Ám	Solder Cup	2.08 mm	0.082 "	0.065 "	1.65 mm	Beryllium Copper	0.157 in	3.99 mm	Press-Fit	0.455 in	11.56 mm	Gold
