TSS11 Series

Catalog

SWITCH SLIDE SPDT 0.4VA 20V

Part	Actuator Material	Switch Travel	Electrical Life	Mechanical Life	Operating Force [Min]	Operating Force [Max]	Mounting Type	Contact Timing	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Contact Material	Features	Termination Style	Actuator Type	Actuator Length	Voltage Rating - DC	Voltage Rating - AC	Circuit	Actuator Length [x]
TE Connectivity AMP Connectors TSS11EG1PC	Polybutylene Terephthalate (PBT)	3.05 mm	60000 Cycles	60000 Cycles	150 gf	600 gf	Through Hole	Non-Shorting (BBM)	0.4 VA	Gold	80 °C	-20 ░C	On-Off-On	Copper	Epoxy Sealed Terminals	PC Pin	Flush	Flush	20 V	20 V	SPDT
TE Connectivity AMP Connectors TSS11EGRA	Polybutylene Terephthalate (PBT)	3.05 mm	60000 Cycles	60000 Cycles	150 gf	600 gf	Right Angle Through Hole	Non-Shorting (BBM)	0.4 VA	Gold	80 °C	-20 ░C	On-Off-On	Copper	Epoxy Sealed Terminals	PC Pin	Standard		20 V	20 V	SPDT	2.79 mm

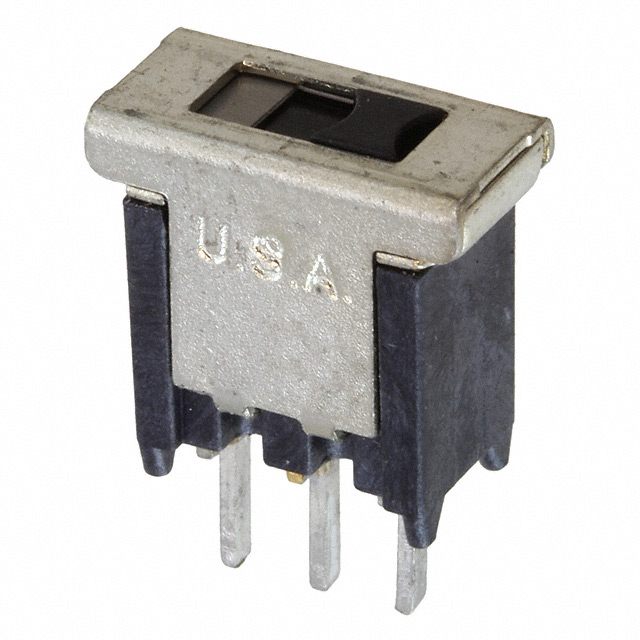

TE Connectivity AMP Connectors TSS11DG1PC	Polybutylene Terephthalate (PBT)	3.05 mm	60000 Cycles	60000 Cycles	150 gf	600 gf	Through Hole	Non-Shorting (BBM)	0.4 VA	Gold	80 °C	-20 ░C	On-On	Copper	Epoxy Sealed Terminals	PC Pin	Flush	Flush	20 V	20 V	SPDT
TE Connectivity AMP Connectors TSS11DGRA	Polybutylene Terephthalate (PBT)	3.05 mm	60000 Cycles	60000 Cycles	150 gf	600 gf	Right Angle Through Hole	Non-Shorting (BBM)	0.4 VA	Gold	80 °C	-20 ░C	On-On	Copper	Epoxy Sealed Terminals	PC Pin	Standard		20 V	20 V	SPDT	2.79 mm
