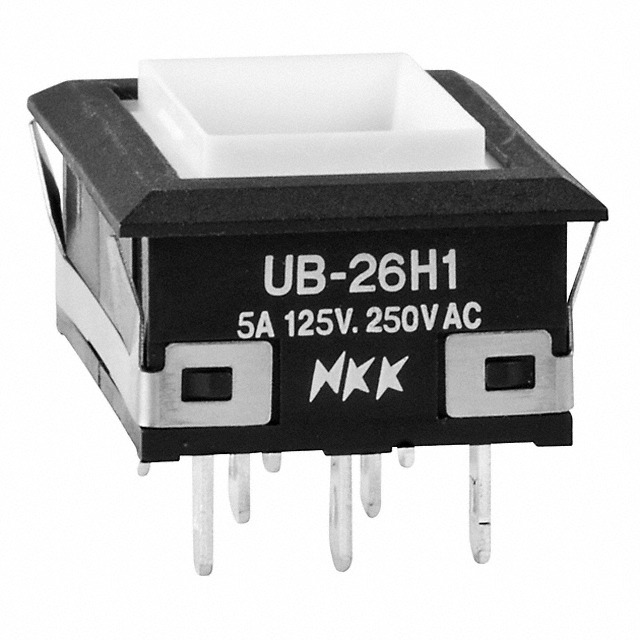

UB26NKW Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 5A 125V
| Part | Electrical Life | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Features | Type | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Circuit | Actuator Marking | Color - Actuator/Cap | Actuator Type | Switch Function | Termination Style | Current Rating (Amps) | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 200000 Cycles | -20 ░C | 70 °C | 30 V | Stainless Steel | Standard | 125 V | 16.2 mm | 22.4 mm | Panel Mount Snap-In | DPDT | No Marking | Red | Button Rectangular | On-On | Solder Lug | 5 A | ||
 NKK Switches | 10000 Cycles | 200000 Cycles | -20 ░C | 70 °C | 30 V | Stainless Steel | Standard | 125 V | 16.2 mm | 22.4 mm | Panel Mount Snap-In | DPDT | No Marking | Black | Button Rectangular | On-On | Solder Lug | 5 A | ||
 NKK Switches | 10000 Cycles | 200000 Cycles | -25 °C | 50 °C | 30 V | Stainless Steel | Illuminated Standard | 125 V | 16.2 mm | 22.4 mm | Panel Mount Snap-In | DPDT | No Marking | Plunger for Cap | On-On | Solder Lug | 5 A | 1.85 VDC | LED Red |
