A7D Series

Catalog

SWITCH THUMB SPDT 0.1A 30V

Part	Electrical Life	Depth Behind Flange	Color	End Caps	Actuator Type	Mounting Type	Contact Rating @ Voltage	Output Code	Read Out	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Sections	Accessory Type	For Use With/Related Products	Read Out [Max]	Read Out [Min]	Features
Omron Electronics Inc-EMC Div A7D-206-PM-1	20000 Steps	17.5 mm	Black	Sold Separately	Pushwheel	Panel Mount Snap-In	0.1 A 30 VDC	SPDT	+/-	PC Pin	70 °C	-10 °C	1
Omron Electronics Inc-EMC Div A7D-4106-67-1

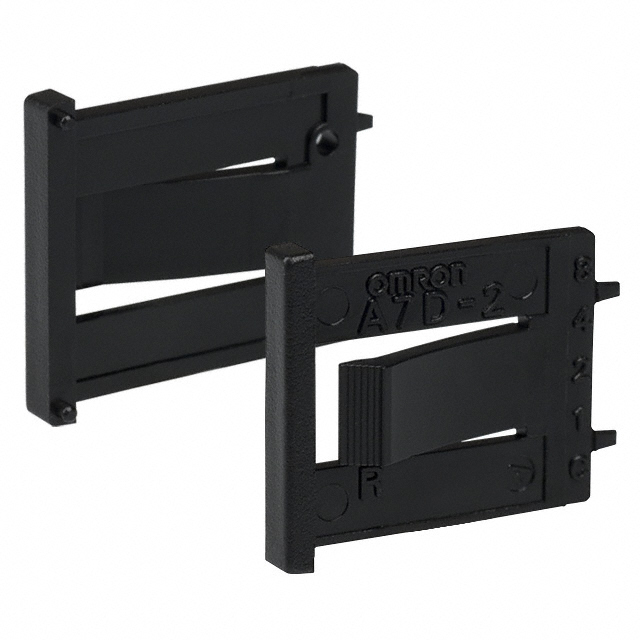

Omron Electronics Inc-EMC Div A7D-2M-1														End Cap	SW279 ~ SW280-ND SW504 ~ SW505-ND
Omron Electronics Inc-EMC Div A7D-106	20000 Steps	17 mm	Light Gray	Sold Separately	Pushwheel	Panel Mount Screw	0.1 A 30 VDC	BCD		PC Pin	70 °C	-10 °C	1			9	0

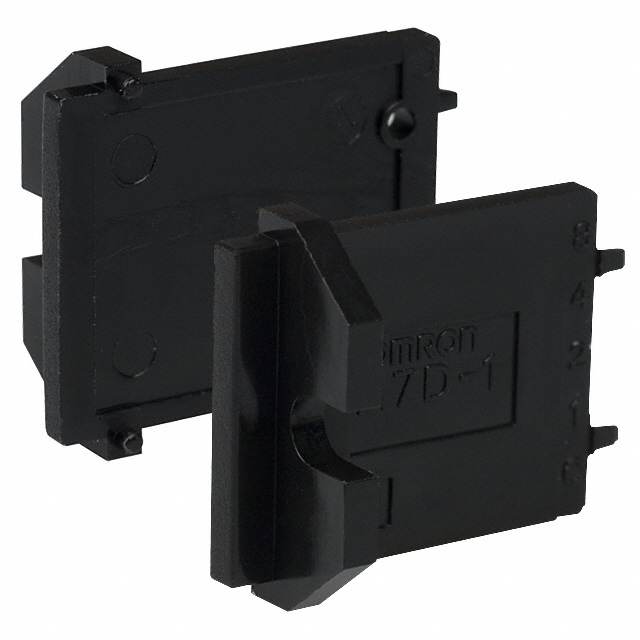

Omron Electronics Inc-EMC Div A7D-1M-1														End Cap	SW279 ~ SW280-ND SW504 ~ SW505-ND

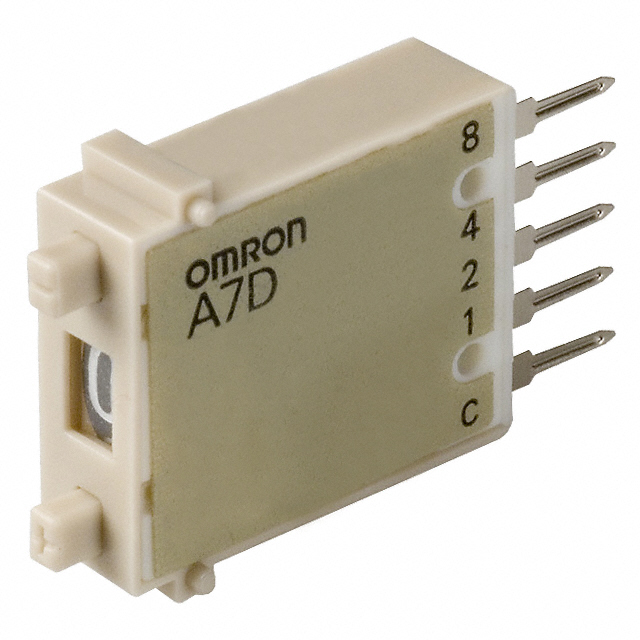

Omron Electronics Inc-EMC Div A7D-206-PM	20000 Steps	17.5 mm	Light Gray	Sold Separately	Pushwheel	Panel Mount Snap-In	0.1 A 30 VDC	SPDT	+/-	PC Pin	70 °C	-10 °C	1

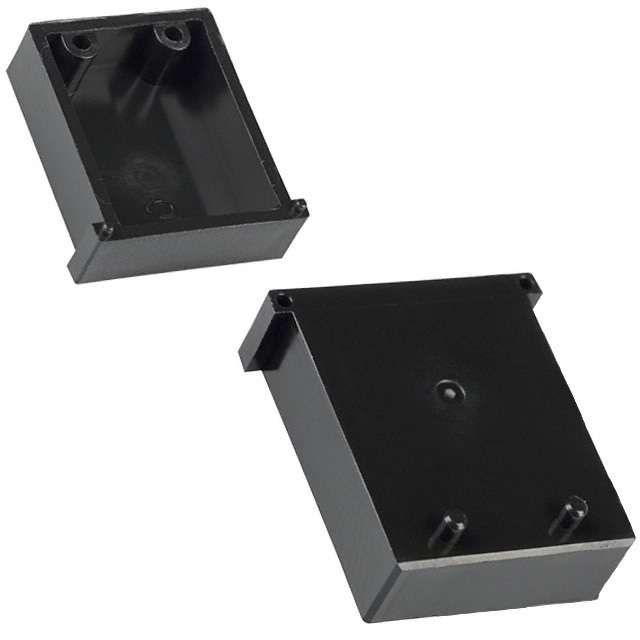

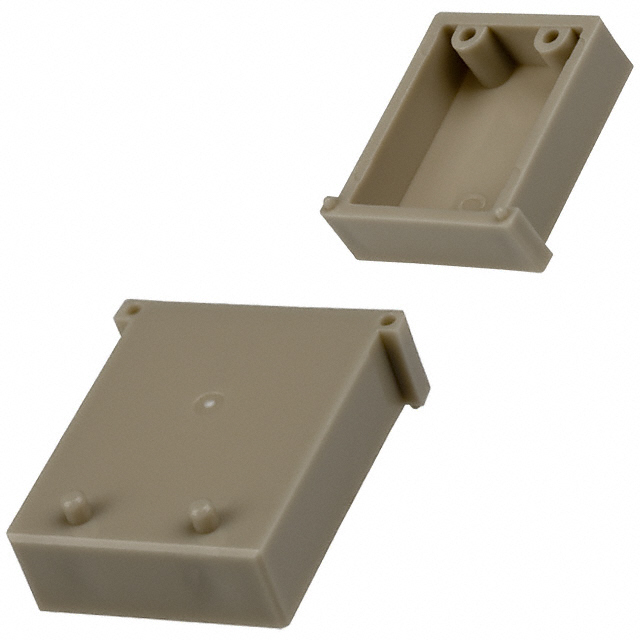

Omron Electronics Inc-EMC Div A7D-2PA														Spacer	SW279 ~ SW280-ND SW504 ~ SW505-ND
Omron Electronics Inc-EMC Div A7D-5106-66-1

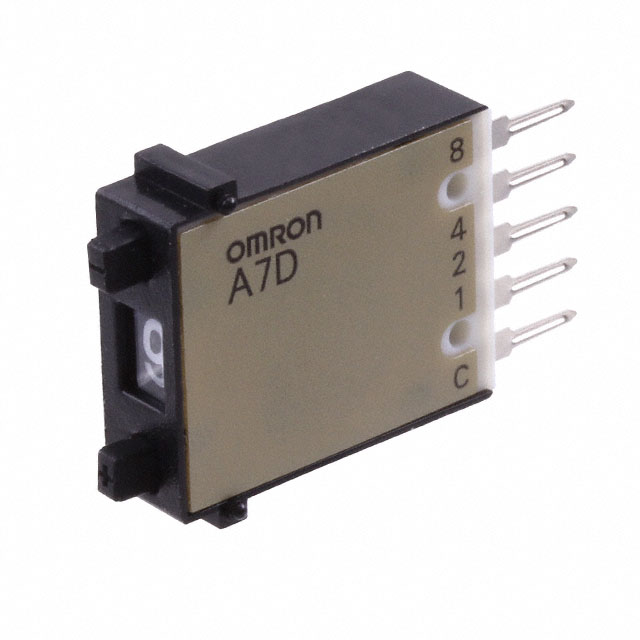

Omron Electronics Inc-EMC Div A7D-106-1	20000 Steps	17 mm	Black	Sold Separately	Pushwheel	Panel Mount Screw	0.1 A 30 VDC	BCD		PC Pin	70 °C	-10 °C	1			9	0
Omron Electronics Inc-EMC Div A7D-206-S07-1	20000 Steps	17.5 mm	Black	Sold Separately	Pushwheel	Panel Mount Snap-In	0.1 A 30 VDC	BCD		PC Pin	70 °C	-10 °C	1			7	0	Internal Stoppers
