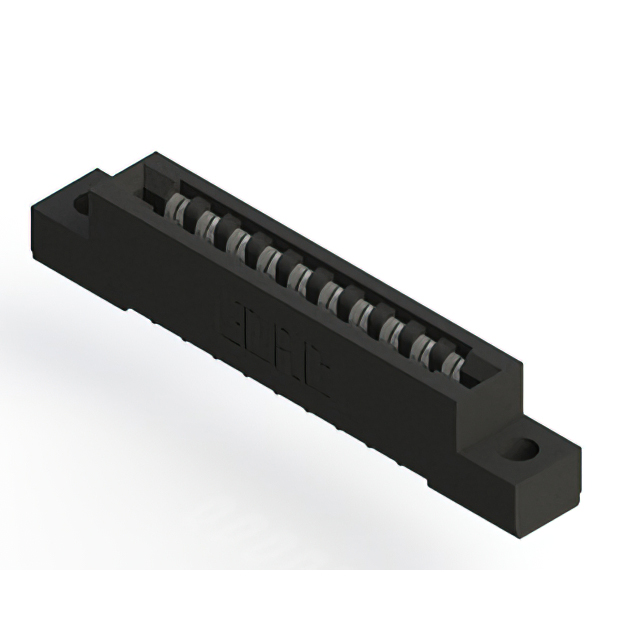

857-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 20POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Material | Contact Type | Number of Rows [custom] | Read Out | Gender | Pitch | Pitch | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Color | Number of Positions | Termination | Contact Finish | Number of Positions/Bay/Row | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | 2 | Dual | Female | 3.96 mm | 0.156 in | Right Angle Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 20 | Solder | Tin | 10 | Non Specified - Dual Edge | ||||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | Single | Female | 3.96 mm | 0.156 in | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 10 | Wire Wrap | Tin | 10 | Non Specified - Single Edge | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 1 | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | Single | Female | 3.96 mm | 0.156 in | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 10 | Solder Eyelet(s) | Gold | 10 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 1 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | 2 | Dual | Female | 3.96 mm | 0.156 in | Right Angle Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 20 | Solder | Tin | 10 | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | Single | Female | 3.96 mm | 0.156 in | Right Angle Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 10 | Solder | Tin | 10 | Non Specified - Single Edge | 1 | ||||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | Single | Female | 3.96 mm | 0.156 in | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 10 | Solder | Tin | 10 | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 1 | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | Single | Female | 3.96 mm | 0.156 in | Right Angle Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 10 | Solder | Gold | 10 | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 1 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | Single | Female | 3.96 mm | 0.156 in | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 10 | Solder | Tin | 10 | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 1 | |||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | 2 | Dual | Female | 3.96 mm | 0.156 in | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 20 | Solder Eyelet(s) | Tin | 10 | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Semi Bellows | Single | Female | 3.96 mm | 0.156 in | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 10 | Wire Wrap | Tin | 10 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 1 |
