2314926 Series

Catalog

6P,2MM,B-B,REC,DRHZ,2.8,0.76AU,T

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Contact Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Voltage Rating	Mounting Type	Connector Type	Termination	Number of Rows	Contact Material

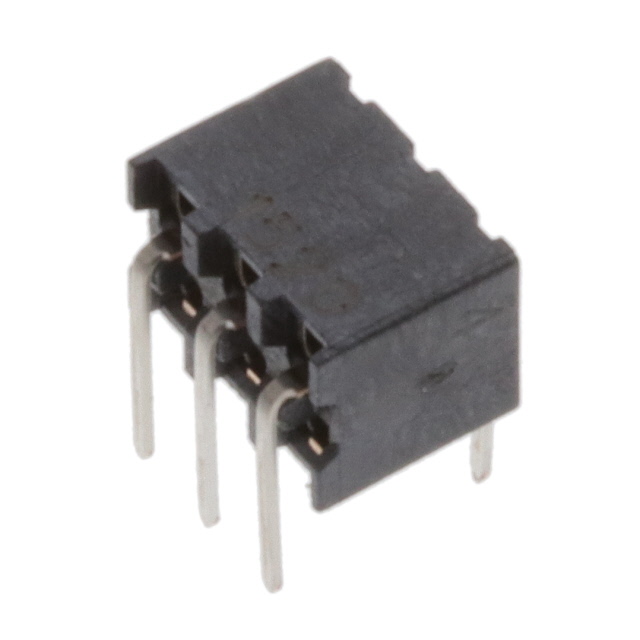

TE Connectivity Raychem Cable Protection 2314926-6	Square	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	0.11 in	2.79 mm	Push-Pull	Tin	0.161 in	4.1 mm	UL94 V-0	Female Socket	All	0.3 µm	12 µin	2 A	125 °C	-40 °C	0.079 in	2 mm	Black	Gold	0.079 in	2 mm	6	125 VAC	Through Hole Right Angle	Receptacle	Solder	2	Phosphor Bronze

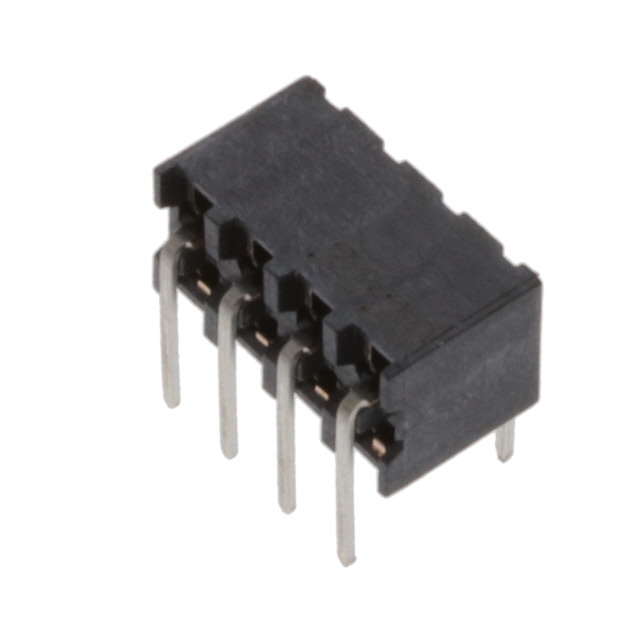

TE Connectivity Raychem Cable Protection 2314926-8	Square	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	0.11 in	2.79 mm	Push-Pull	Tin	0.161 in	4.1 mm	UL94 V-0	Female Socket	All	0.3 µm	12 µin	2 A	125 °C	-40 °C	0.079 in	2 mm	Black	Gold	0.079 in	2 mm	8	125 VDC	Through Hole Right Angle	Receptacle	Solder	2	Phosphor Bronze
