16280-3S Series
Manufacturer: Conxall/Switchcraft
Beta
⌘K

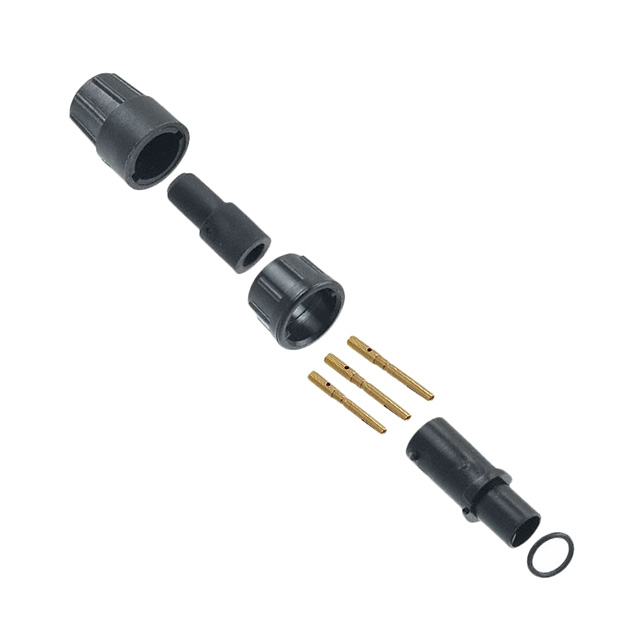

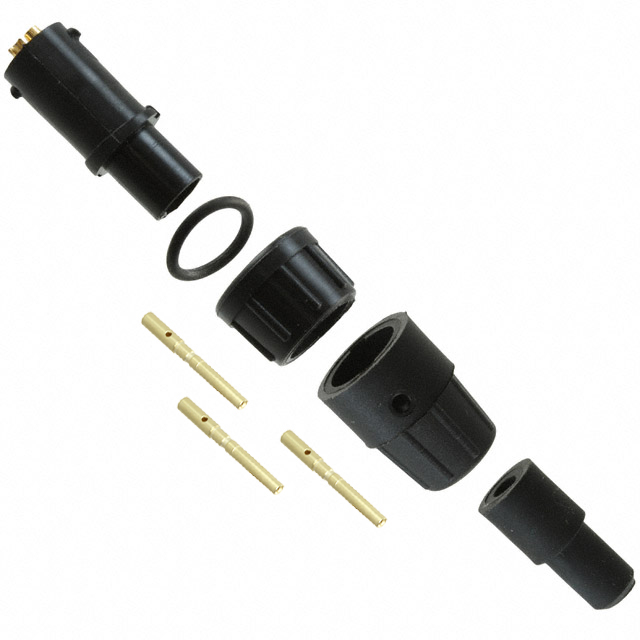

CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Color | Voltage Rating | Features | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Material Flammability Rating | Connector Type | Backshell Material, Plating | Current Rating (Amps) | Termination | Mounting Type | Fastening Type | Orientation | Contact Finish - Mating | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Applications | Primary Material | Contact Material | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conxall/Switchcraft | Black | 600 VAC | Backshell | 2.29 mm | 0.09 in 0.14 in | 3.56 mm | UL94 HB | Female Sockets Plug | Thermoplastic | 7.5 A | Crimp | Free Hanging (In-Line) | Bayonet Lock | Keyed | Gold | Unshielded | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Data Industrial Instrumentation Medical | Plastic | Copper Alloy | ||||||
 Conxall/Switchcraft | Black | 600 VAC | Backshell | UL94 HB | Female Sockets Plug | Thermoplastic | 7.5 A | Crimp | Free Hanging (In-Line) | Bayonet Lock | Keyed | Gold | Unshielded | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Data Industrial Instrumentation Medical | Plastic | Copper Alloy | 0.15 in 0.17 in | 3.81 mm 4.32 mm | |||||||
Conxall/Switchcraft | Black | 600 VAC | Backshell | UL94 HB | Female Sockets Plug | Thermoplastic | 7.5 A | Crimp | Free Hanging (In-Line) | Bayonet Lock | Keyed | Gold | Unshielded | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Data Industrial Instrumentation Medical | Plastic | Copper Alloy | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm |
