68771 Series

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Material Flammability Rating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions	Mounting Type	Number of Positions Loaded	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Termination	Connector Type	Contact Shape	Shrouding	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post
Amphenol ICC (FCI) 68771-236	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull	36	Through Hole	All	Gold or Gold GXT™	11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	15 µin	0.38 µm
Amphenol ICC (FCI) 68771-126HLF	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull	26	Through Hole	All	Gold or Gold GXT™	11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	30 Áin	0.76 Ám	3 A	125 °C	-65 ░C
Amphenol ICC (FCI) 68771-410HLF	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull	10	Through Hole	All		11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	100 çin	2.54 çm	3 A	125 °C	-65 ░C	Tin
Amphenol ICC (FCI) 68771-132HLF	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull		Through Hole	All	Gold or Gold GXT™	11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	30 Áin	0.76 Ám	3 A	125 °C	-65 ░C
Amphenol ICC (FCI) 68771-407HLF	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull	7	Through Hole	All		11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	100 çin	2.54 çm	3 A	125 °C	-65 ░C	Tin
Amphenol ICC (FCI) 68771-426HLF	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull	26	Through Hole	All		11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	100 çin	2.54 çm	3 A	125 °C	-65 ░C	Tin
Amphenol ICC (FCI) 68771-236H	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull	36	Through Hole	All	Gold or Gold GXT™	11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	15 µin	0.38 µm	3 A	125 °C	-65 ░C
Amphenol ICC (FCI) 68771-127HLF	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull	27	Through Hole	All	Gold or Gold GXT™	11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	30 Áin	0.76 Ám	3 A	125 °C	-65 ░C

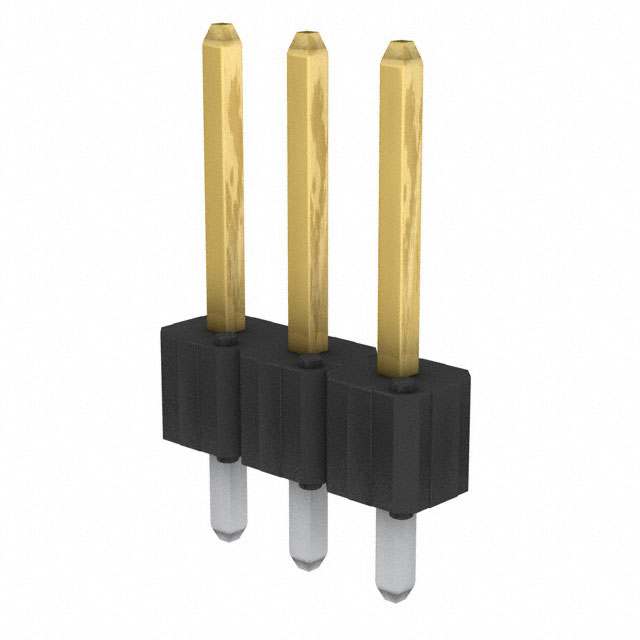

Amphenol ICC (FCI) 68771-103HLF	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull		Through Hole	All	Gold or Gold GXT™	11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	30 Áin	0.76 Ám	3 A	125 °C	-65 ░C
Amphenol ICC (FCI) 68771-106HLF	UL94 V-0	Male Pin	0.1 in	2.54 mm	6.86 mm	0.27 in	Push-Pull	6	Through Hole	All	Gold or Gold GXT™	11.94 mm	0.47 "	0.1 in	2.54 mm	Solder	Header	Square	Unshrouded	Phosphor Bronze	Black	2.54 mm	0.1 in	1	30 Áin	0.76 Ám	3 A	125 °C	-65 ░C
