6609028 Series

Catalog

LINE FILTER 250VAC 20A CHASSIS

Part	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Inductance	Applications	Termination Style	Voltage - Rated AC	Current	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]

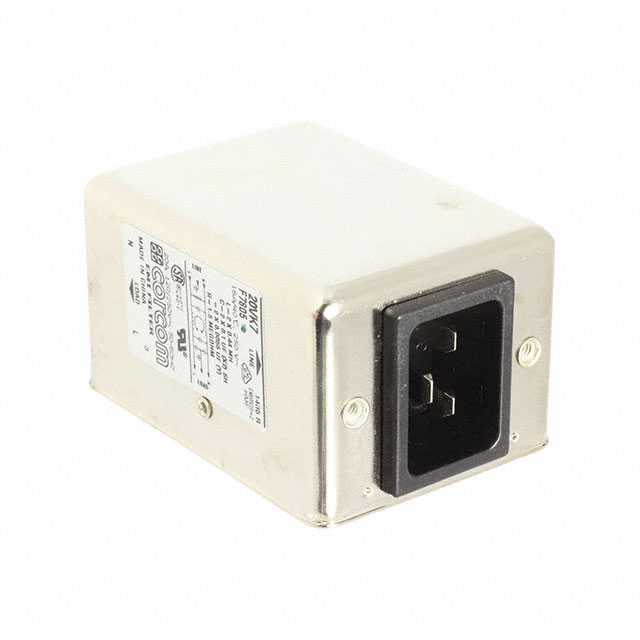

TE Connectivity Corcom Filters 2-6609028-2	Chassis Mount	CSA UR VDE	40 °C	-10 °C	Single Phase	440 µH	General Purpose	Quick Connect	250 V	20 A	Single Stage	60 Hz	50 Hz

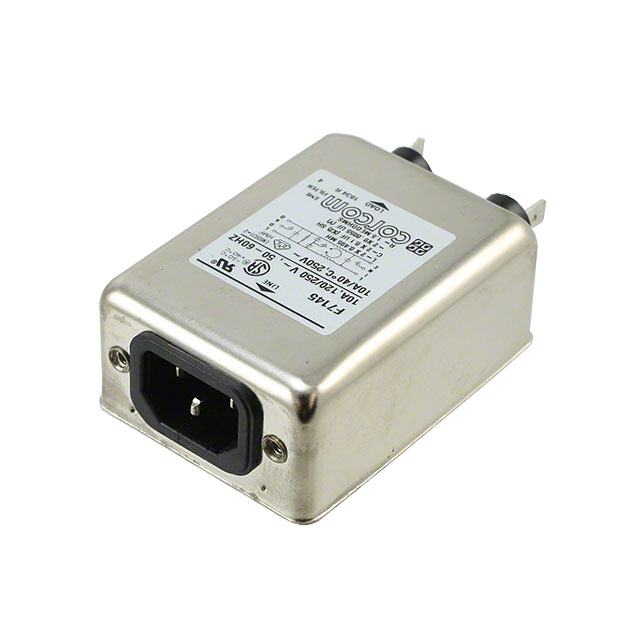

TE Connectivity Corcom Filters 1-6609028-5	Chassis Mount	CSA UR VDE	40 °C	-10 °C	Single Phase	495 µH	General Purpose	IEC 320-C14 Quick Connect	250 V	10 A	Single Stage	60 Hz	50 Hz

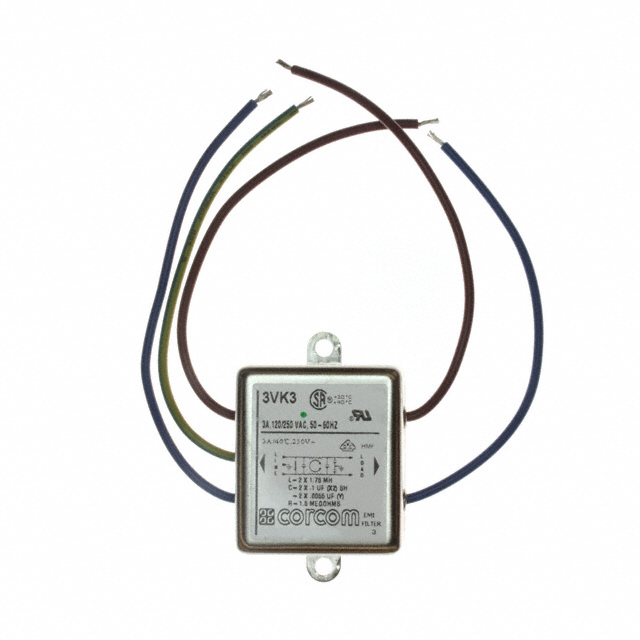

TE Connectivity Corcom Filters 6609028-6	Chassis Mount	CSA UR VDE	40 °C	-10 °C	Single Phase	1.76 mH	General Purpose	Wire Leads	250 V	3 A	Single Stage	60 Hz	50 Hz
TE Connectivity Corcom Filters 2-6609028-1	Chassis Mount	CSA UR VDE	40 °C	-10 °C	Single Phase	690 µH	General Purpose	Threaded Post (8-32)	250 V	30 A	Single Stage	60 Hz	50 Hz

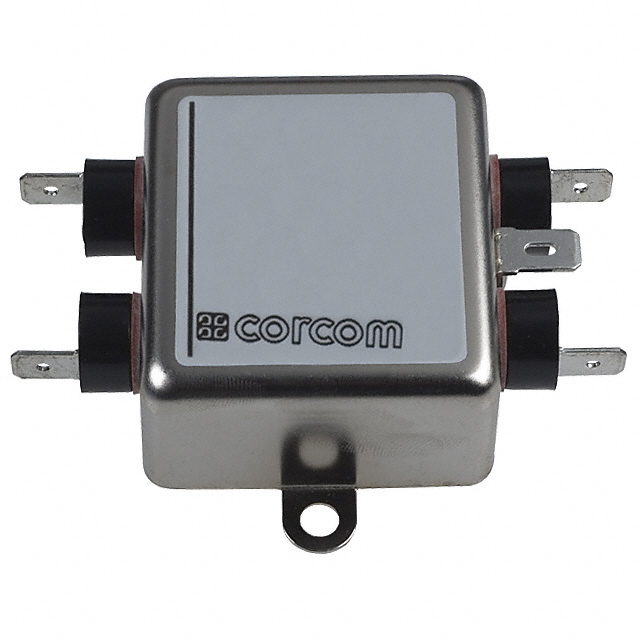

TE Connectivity Corcom Filters 1-6609028-3	Chassis Mount	CSA UR VDE	40 °C	-10 °C	Single Phase	495 µH	General Purpose	Quick Connect	250 V	10 A	Single Stage	60 Hz	50 Hz
