FFC2B28 Series
Manufacturer: GCT
Beta
⌘K
16W,0.5MM FFC CON,R/A,DUAL CONT,B/FLP,H1.0MM,GLD,SMT,T&R
| Part | Contact Finish Thickness | Mating Cycles | Current Rating (Amps) | Housing Color | Actuator Color | Contact Material | Connector/Contact Type | Number of Positions | Flat Flex Type | Contact Finish | Actuator Material | Locking Feature | Voltage Rating | FFC, FCB Thickness | Mounting Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Features | Housing Material | Material Flammability Rating | Cable End Type | Height Above Board [z] | Height Above Board [z] | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

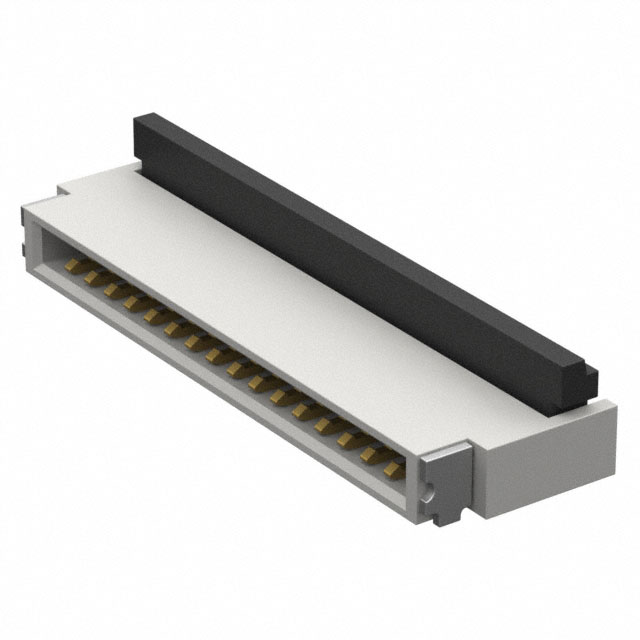

 GCT | Flash | 20 | 0.2 A | Natural | Black | Copper Alloy | Contacts Top and Bottom | 16 | FFC FPC | Gold | Thermoplastic | Backlock Flip Lock | 30 VDC | 0.3 mm | Right Angle Surface Mount | Solder | 85 °C | -25 °C | Solder Retention | Thermoplastic | UL94 V-0 | Tapered | 1 mm | 0.039 " | 0.02 " | 0.5 mm |

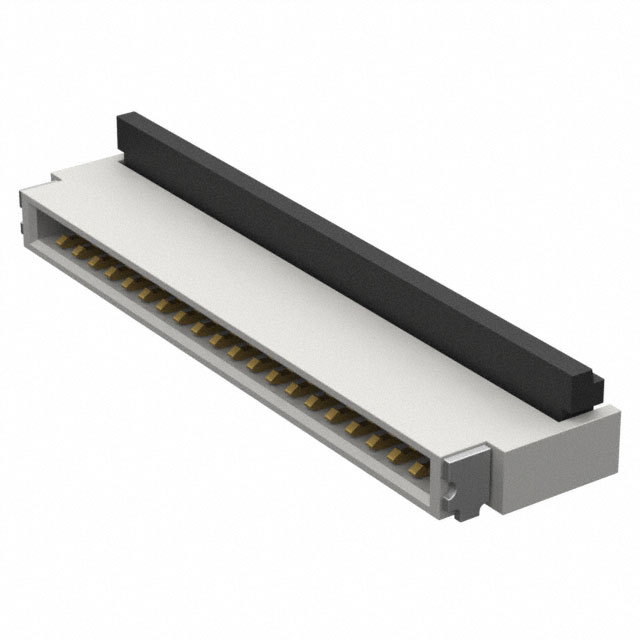

 GCT | Flash | 20 | 0.2 A | Natural | Black | Copper Alloy | Contacts Top and Bottom | 20 | FFC FPC | Gold | Thermoplastic | Backlock Flip Lock | 30 VDC | 0.3 mm | Right Angle Surface Mount | Solder | 85 °C | -25 °C | Solder Retention | Thermoplastic | UL94 V-0 | Tapered | 1 mm | 0.039 " | 0.02 " | 0.5 mm |

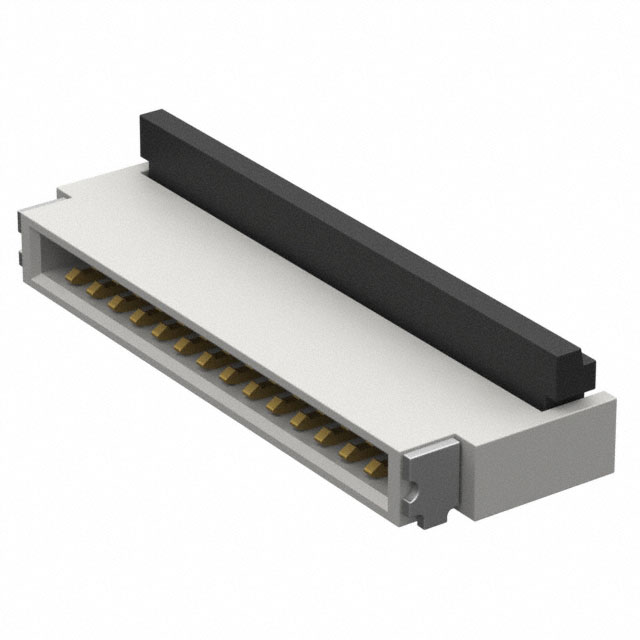

 GCT | Flash | 20 | 0.2 A | Natural | Black | Copper Alloy | Contacts Top and Bottom | 14 | FFC FPC | Gold | Thermoplastic | Backlock Flip Lock | 30 VDC | 0.3 mm | Right Angle Surface Mount | Solder | 85 °C | -25 °C | Solder Retention | Thermoplastic | UL94 V-0 | Tapered | 1 mm | 0.039 " | 0.02 " | 0.5 mm |

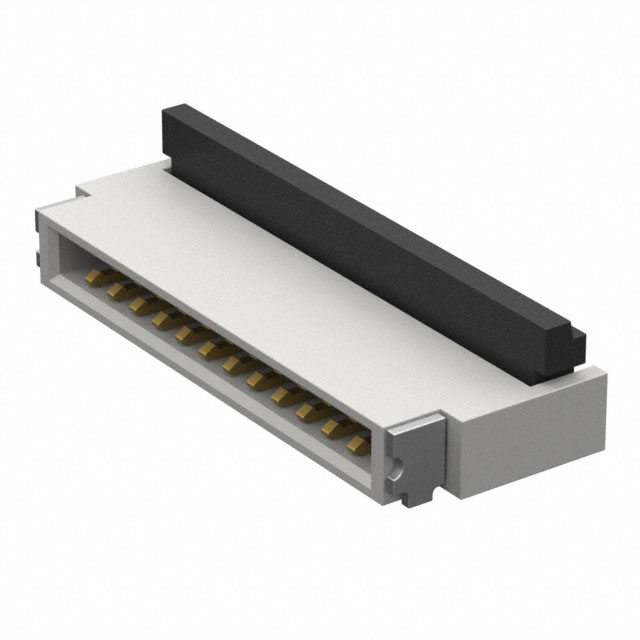

 GCT | Flash | 20 | 0.2 A | Natural | Black | Copper Alloy | Contacts Top and Bottom | 12 | FFC FPC | Gold | Thermoplastic | Backlock Flip Lock | 30 VDC | 0.3 mm | Right Angle Surface Mount | Solder | 85 °C | -25 °C | Solder Retention | Thermoplastic | UL94 V-0 | Tapered | 1 mm | 0.039 " | 0.02 " | 0.5 mm |

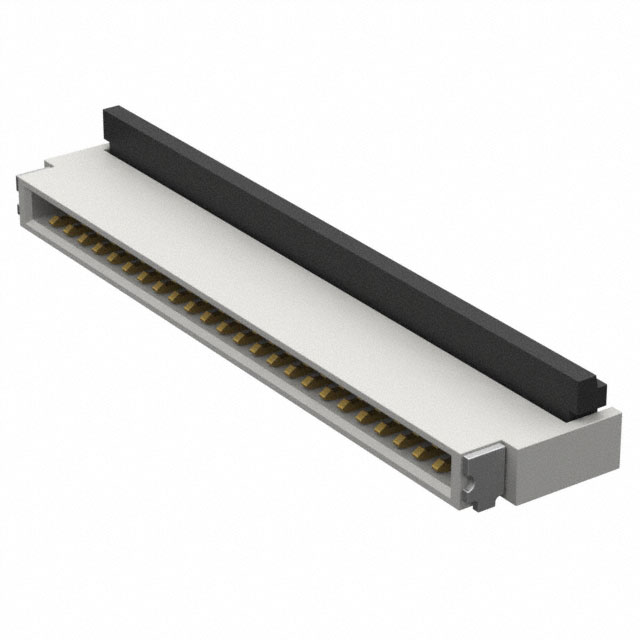

 GCT | Flash | 20 | 0.2 A | Natural | Black | Copper Alloy | Contacts Top and Bottom | 24 | FFC FPC | Gold | Thermoplastic | Backlock Flip Lock | 30 VDC | 0.3 mm | Right Angle Surface Mount | Solder | 85 °C | -25 °C | Solder Retention | Thermoplastic | UL94 V-0 | Tapered | 1 mm | 0.039 " | 0.02 " | 0.5 mm |

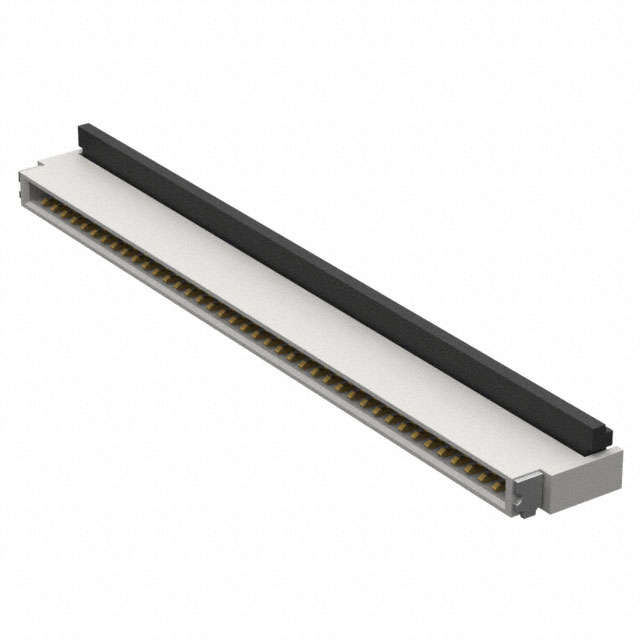

 GCT | Flash | 20 | 0.2 A | Natural | Black | Copper Alloy | Contacts Top and Bottom | 40 | FFC FPC | Gold | Thermoplastic | Backlock Flip Lock | 30 VDC | 0.3 mm | Right Angle Surface Mount | Solder | 85 °C | -25 °C | Solder Retention | Thermoplastic | UL94 V-0 | Tapered | 1 mm | 0.039 " | 0.02 " | 0.5 mm |
 GCT | Flash | 20 | 0.2 A | Natural | Black | Copper Alloy | Contacts Top and Bottom | 18 | FFC FPC | Gold | Thermoplastic | Backlock Flip Lock | 30 VDC | 0.3 mm | Right Angle Surface Mount | Solder | 85 °C | -25 °C | Solder Retention | Thermoplastic | UL94 V-0 | Tapered | 1 mm | 0.039 " | 0.02 " | 0.5 mm |
