67999 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Number of Rows	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Material	Contact Shape	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Connector Type	Termination	Insulation Color	Fastening Type	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions

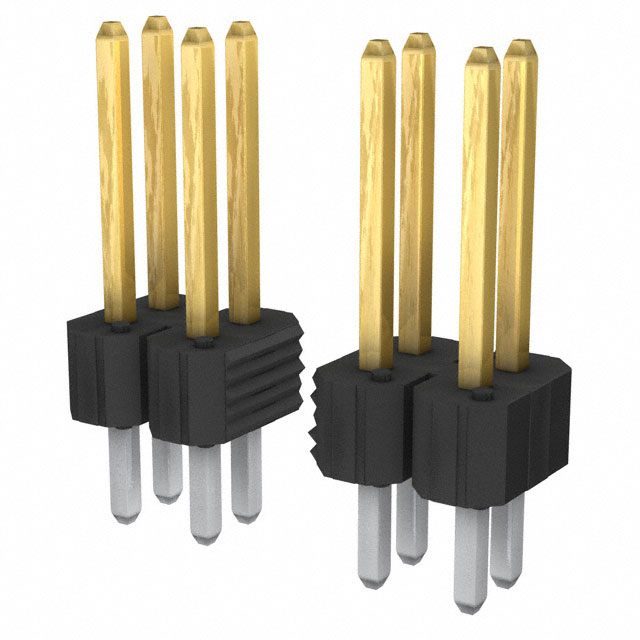

Amphenol ICC (FCI) 67999-272	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All	Gold or Gold GXT™	Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	72	Unshrouded	15 µin	0.38 µm
Amphenol ICC (FCI) 67999-238HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All	Gold or Gold GXT™	Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	38	Unshrouded	15 µin	0.38 µm

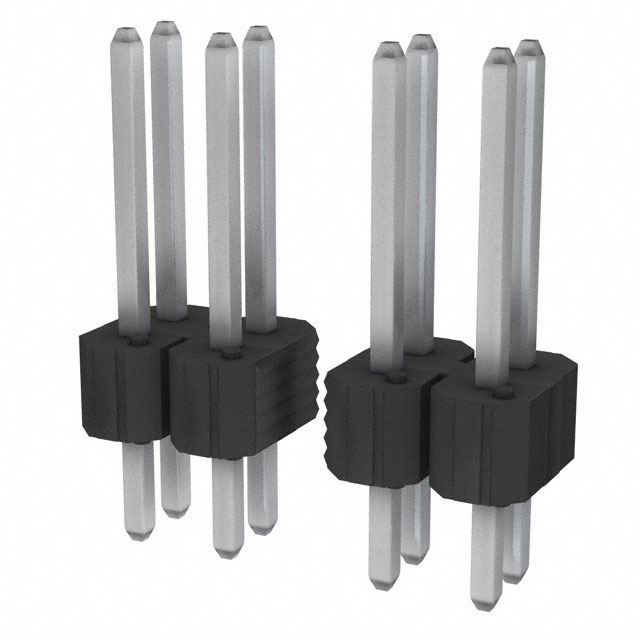

Amphenol ICC (FCI) 67999-430HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All		Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	30	Unshrouded	100 çin	2.54 çm	Tin
Amphenol ICC (FCI) 67999-418HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All		Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	18	Unshrouded	100 çin	2.54 çm	Tin
Amphenol ICC (FCI) 67999-130HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All	Gold or Gold GXT™	Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	30	Unshrouded	30 Áin	0.76 Ám
Amphenol ICC (FCI) 67999-450HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All		Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	50	Unshrouded	100 çin	2.54 çm	Tin
Amphenol ICC (FCI) 67999-416HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All		Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in		Unshrouded	100 çin	2.54 çm	Tin	16
Amphenol ICC (FCI) 67999-246HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All	Gold or Gold GXT™	Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	46	Unshrouded	15 µin	0.38 µm
Amphenol ICC (FCI) 67999-266HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All	Gold or Gold GXT™	Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	66	Unshrouded	15 µin	0.38 µm
Amphenol ICC (FCI) 67999-244HLF	0.318 "	8.08 mm	Male Pin	2	0.1 in	2.54 mm	0.13 in	3.3 mm	Phosphor Bronze	Square	UL94 V-0	0.1 in	2.54 mm	All	Gold or Gold GXT™	Through Hole	Header	Solder	Black	Push-Pull	13.92 mm	0.548 "	2.54 mm	0.1 in	44	Unshrouded	15 µin	0.38 µm
