SH7216 Series

Manufacturer: Renesas Electronics Corporation

Catalog

7216 FL 1M/128K FPU 176-BGA(13X1

Part	Core Processor	EEPROM Size	RAM Size	Package / Case	Data Converters	Core Size	Number of I/O	Connectivity	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Program Memory Size	Peripherals	Mounting Type	Program Memory Type	Oscillator Type	Supplier Device Package

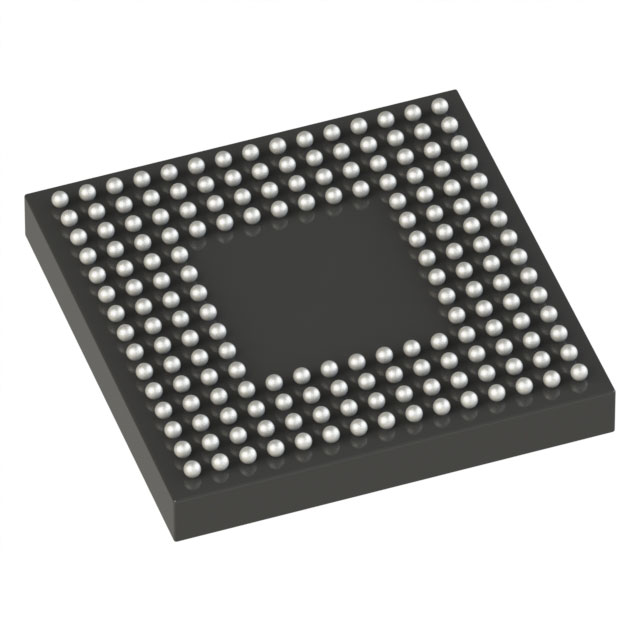

Renesas Electronics Corporation R5F72167HDBG#U1	SH2A-FPU	32K x 8	128 K	176-LFBGA	A/D 8x12b	32-Bit	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	100 MHz	1 MB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFBGA (13x13)
Renesas Electronics Corporation R5F72165ADBG#U1	SH2A-FPU		64 K	176-LFBGA	A/D 8x12b	32-Bit 32-Bit Single-Core	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	200 MHz	512 KB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFBGA (13x13)

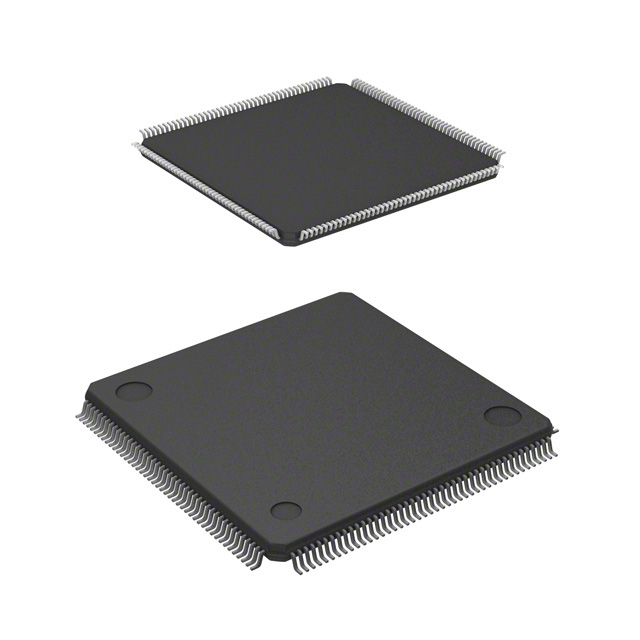

Renesas Electronics Corporation R5F72165ADFP#V1	SH2A-FPU		64 K	176-LQFP	A/D 8x12b	32-Bit	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	200 MHz	512 KB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFQFP (24x24)
Renesas Electronics Corporation R5F72165BDFP#V1	SH2A-FPU	32K x 8	64 K	176-LQFP	A/D 8x12b	32-Bit	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	200 MHz	512 KB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFQFP (24x24)
Renesas Electronics Corporation R5F72167ADFP#V1	SH2A-FPU		128 K	176-LQFP	A/D 8x12b	32-Bit	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	200 MHz	1 MB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFQFP (24x24)
Renesas Electronics Corporation R5F72167ADBG#U1	SH2A-FPU		128 K	176-LFBGA	A/D 8x12b	32-Bit 32-Bit Single-Core	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	200 MHz	1 MB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFBGA (13x13)
Renesas Electronics Corporation R5F72167ADFA#V1	SH2A-FPU		128 K	176-LQFP	A/D 8x12b	32-Bit	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	200 MHz	1 MB	DMA PWM WDT	Surface Mount	FLASH	External
Renesas Electronics Corporation R5F72165GDFA#V1	SH2A-FPU		64 K	176-LQFP	A/D 8x12b	32-Bit	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	100 MHz	512 KB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFQFP (20x20)
Renesas Electronics Corporation R5F72165HDFP#V1	SH2A-FPU	32K x 8	64 K	176-LQFP	A/D 8x12b	32-Bit	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	100 MHz	512 KB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFQFP (24x24)
Renesas Electronics Corporation R5F72167BDBG#U1	SH2A-FPU		128 K	176-LFBGA	A/D 8x12b	32-Bit	112	CANbus Ethernet I2C SCI SPI USB	85 C	-40 ¯C	200 MHz	1 MB	DMA PWM WDT	Surface Mount	FLASH	External	176-LFBGA (13x13)
