1376387 Series

Catalog

5MM B-T-W CONN. 6P(2ROW) HDR A

Part	Applications	Mated Stacking Heights	Connector Type	Insulation Color	Termination	Number of Rows [custom]	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Voltage Rating	Fastening Type	Style	Number of Positions	Shrouding	Number of Positions Loaded	Mounting Type	Contact Material	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Type	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating

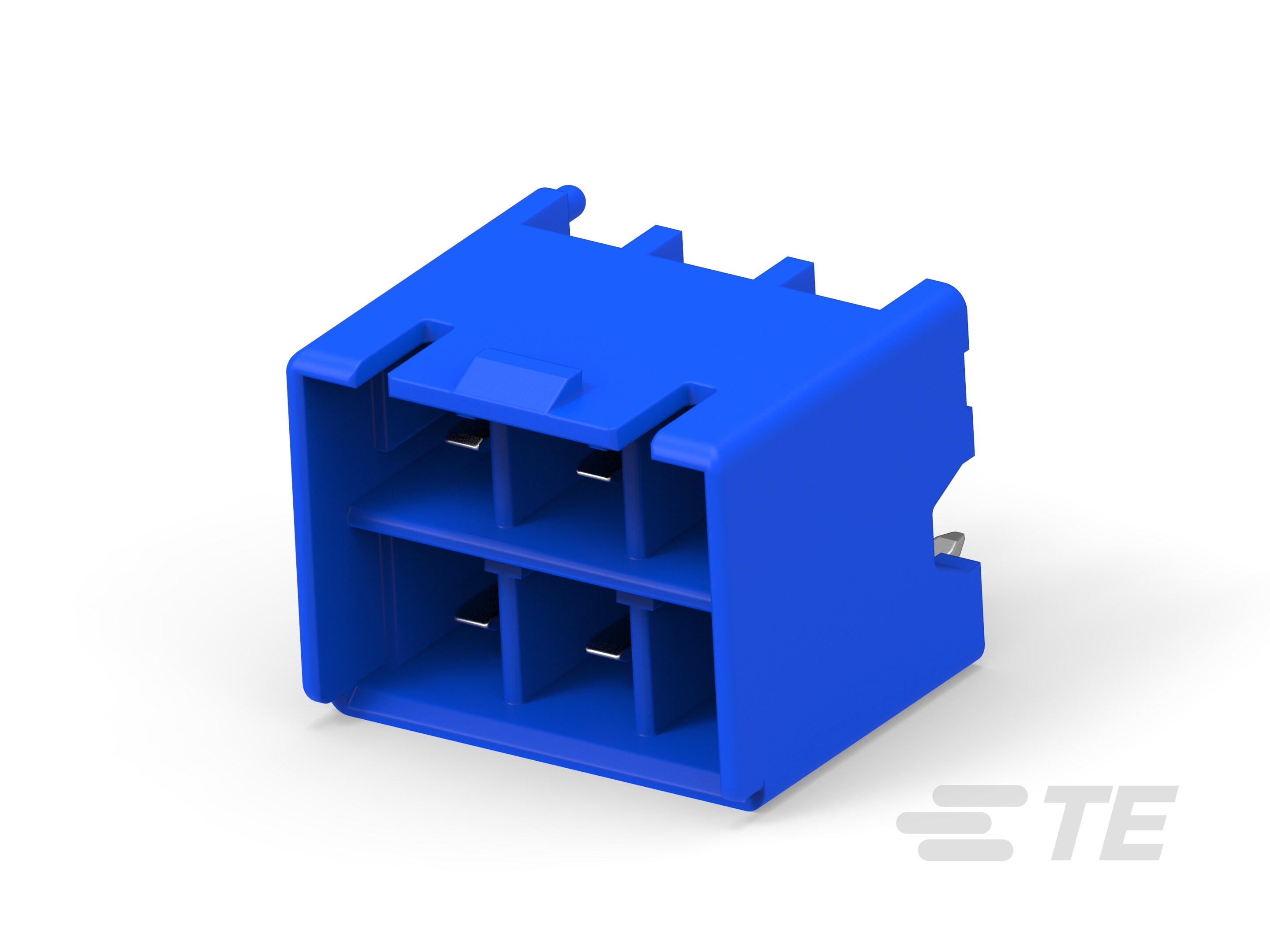

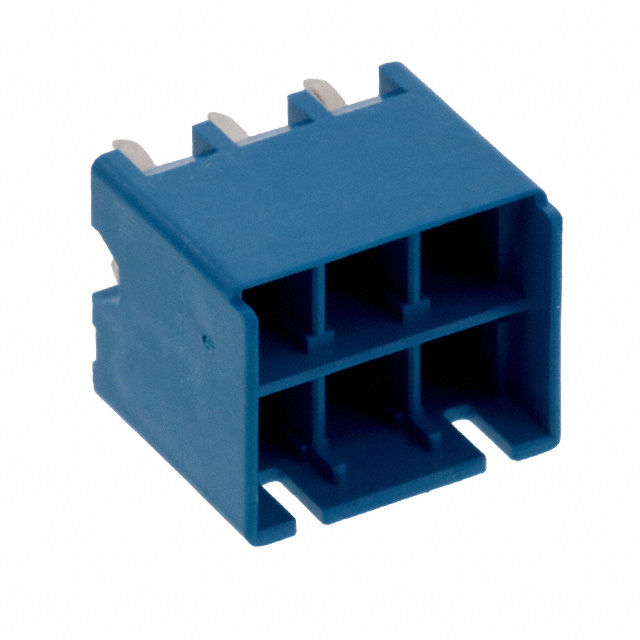

TE Connectivity AMP Connectors 2-1376387-3	General Purpose	19.4 mm	Header	Blue	Kinked Pin Solder	2	Rectangular	-40 C	105 ░C	14.1 mm	0.555 in	300 VAC	Locking Ramp	Board to Cable/Wire	6	Shrouded - 4 Wall	All	Through Hole	Copper Alloy	0.138 in	3.5 mm	Varies by Wire Gauge	Tab	Board Guide	Tin	0.197 "	5 mm	Glass Filled Nylon 6/6 Polyamide (PA66)	6.2 mm	0.244 in	UL94 V-0

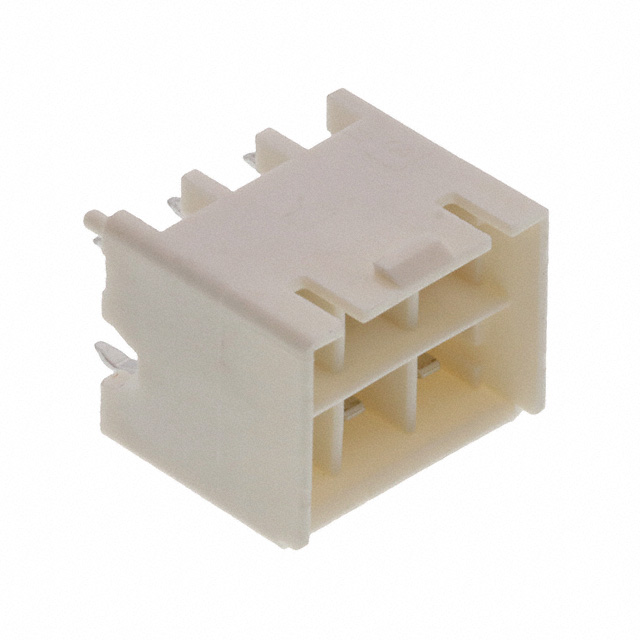

TE Connectivity AMP Connectors 1376387-1	General Purpose	19.4 mm	Header	Natural	Kinked Pin Solder	2	Rectangular	-40 C	105 ░C	14.1 mm	0.555 in	300 VAC	Locking Ramp	Board to Cable/Wire	6	Shrouded - 4 Wall	All	Through Hole	Copper Alloy	0.138 in	3.5 mm	Varies by Wire Gauge	Tab	Board Guide	Tin	0.197 "	5 mm	Glass Filled Nylon 6/6 Polyamide (PA66)	6.2 mm	0.244 in	UL94 V-0
