HLMP04 Series

Catalog

LED YL DIFFUSED RECTANGULAR T/H

Part	Current - Test	Wavelength - Peak	Lens Size [y]	Lens Size [x]	Color	Size / Dimension [x]	Size / Dimension [y]	Configuration	Mounting Type	Lens Transparency	Lens Style	Height (Max) [Max] [z]	Lens Color	Millicandela Rating	Supplier Device Package	Package / Case	Viewing Angle	Voltage - Forward (Vf) (Typ)

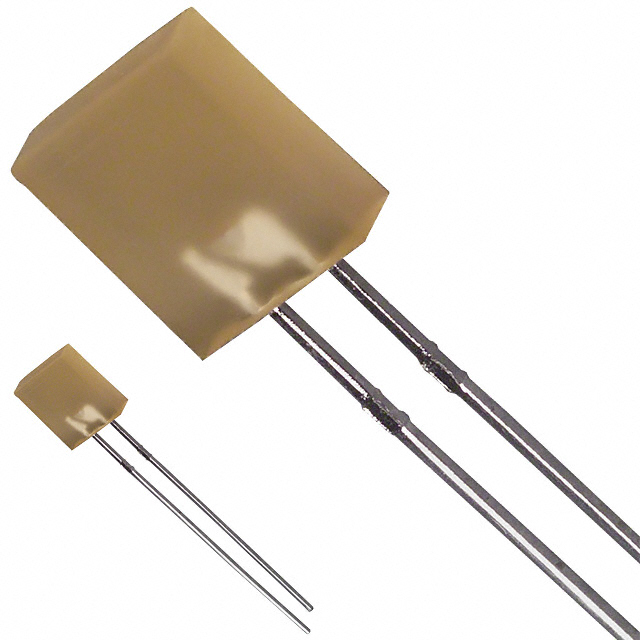

ON Semiconductor HLMP0401	20 mA	585 nm	2.42 mm	7.24 mm	Yellow	7.24 mm	2.42 mm	Standard	Through Hole	Diffused	Rectangle with Flat Top	8 mm	Yellow	5 mcd	Rectangular	Radial	100 °	2.2 V
ON Semiconductor HLMP0400	20 mA	585 nm	2.42 mm	7.24 mm	Yellow	7.24 mm	2.42 mm	Standard	Through Hole	Diffused	Rectangle with Flat Top	8 mm	Yellow	2.5 mcd	Rectangular	Radial	100 °	2.2 V
