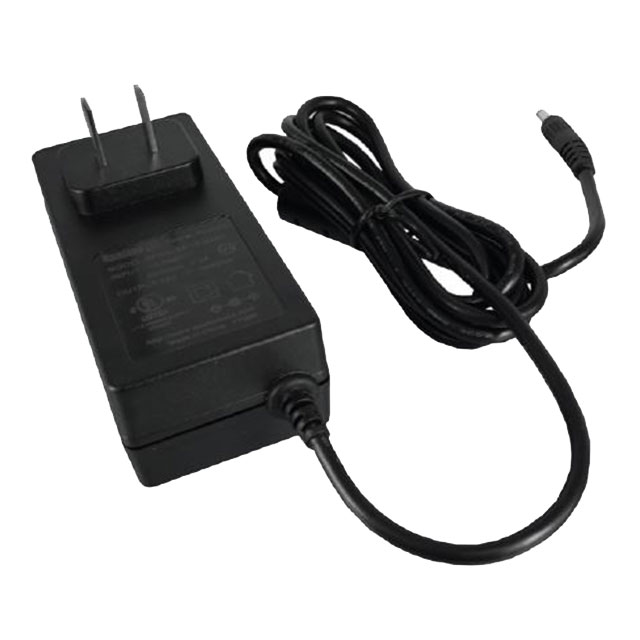

QFWB-36 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 24V 36W
| Part | Weight | Weight | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Cord Length | Cord Length | Polarization | Input Connector | Input Type | No Load Power Consumption | Efficiency | Form | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Region Utilized | Approval Agency | Output Connector [x] | Output Connector [diameter] | Output Connector | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 180.08 g | 0.397 lb | ITE (Commercial) | 32 mm | 3.82 in | 1.26 " | 97.1 mm | 45.1 mm | 1.78 in | 1.2 m | 47.2 in | Positive Center | NEMA 1-15P | Fixed Blade | 100 mW | Level VI | Wall Mount | 40 °C | 0 °C | 36 W | 100 VAC | 240 VAC | 24 V | North America | cULus | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 1.5 A |
